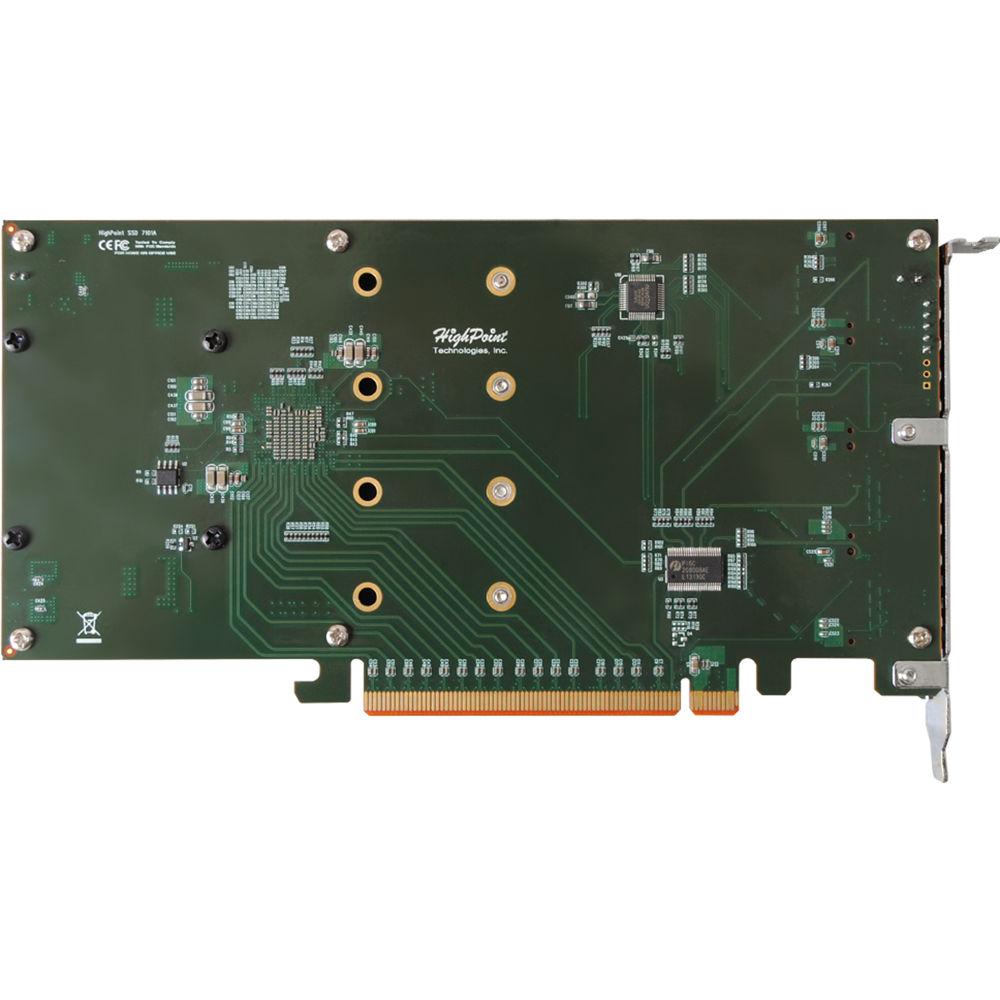

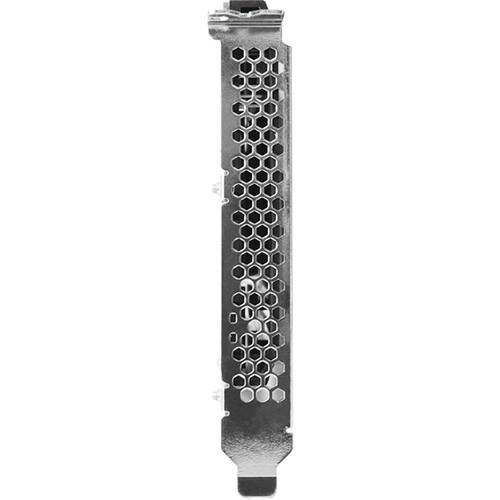

User Manual for HighPoint SSD7101A-1 NVMe M.2 RAID Controller Click to enlarge the picture
Contents of the user manual for the HighPoint SSD7101A-1 NVMe M.2 RAID Controller
- Product category: Controller Cards HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint Controller Cards
 |
User manual for the HighPoint SSD7101A-1 NVMe M.2 RAID Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|
Product description Designed for high-end desktop and workstation platforms, such as gaming and media systems, the SSD7101A-1 NVMe M.2 RAID Controller from HighPoint uses a PCIe 3.0 x16 bandwidth to provide a dedicated PCIe 3.0 x4 bandwidth (32 Gb/s) to up to four NVMe PCIe M.2 SSDs with a 2280 (80mm) form factor. The controller supports RAID 0, 1, 5, and 1/0, which is also known as RAID 10. Each of these provides performance, data redundancy, or a combination of both. For those who do not require the benefits of a RAID, Single Disk mode is also available. With a Mean Time Before Failure (MTBF) rating of 920,585 hours, the SSD7101A-1 will have a long and sustainable life. It is currently compatible with Windows, Mac, and Linux. General Features - Shatter the DMI 3.0 Performance Bottleneck
- HighPoint's SSD7101A-1 NVMe RAID Controllers deliver high levels of performance. Unlike onboard DMI 3.0-based NVMe solutions, which are forced to share a single PCIe 3.0 x4 lane with the motherboard's SATA and USB ports, SSD7101A-1 RAID Controllers feature dedicated PCIe 3.0 x16 bus bandwidth. This architecture allows the SSDs to interface directly with the platform's CPU to break the constrictive performance bottleneck imposed by DMI 3.0, and unlocking the true potential of your NVMe storage.
- Independent, Stand-Alone NVMe SSD Solution
- The SSD7101A-1 RAID controller is a truly independent NVMe RAID solution and was designed for today's high-end desktops, custom gaming systems, and media workstations. Unlike most NVMe controllers or drive solutions in today's marketplace, SSD7101A-1 NVMe RAID Controllers can be used with most systems with a free PCIe 3.0 x16 slot running a Windows operating system or Linux distribution. Mac compatibility is coming July 2018.
- Robust, Compact, and Efficient - Shield & Cool Your SSDs

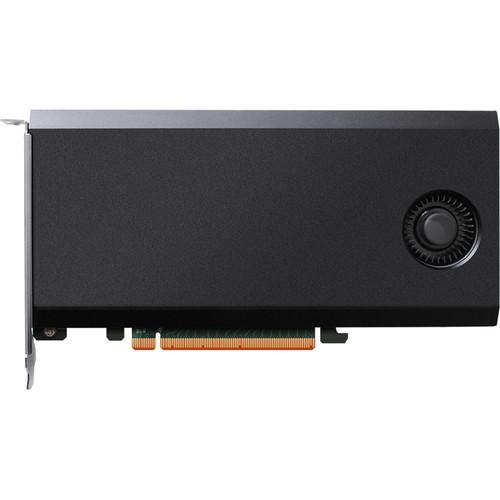

- It's no secret that PCIe devices can generate a great deal of heat, especially during peak operation. HighPoint is no stranger to PCIe design, and has engineered the SSD7101 Drive Series to excel in high-stress conditions. The all-aluminum casing naturally dissipates waste heat away from the SSD modules, and features an integrated fan and heat sink that work in conjunction to eject excess heat away from vital components and keep ambient temperatures manageable and cool.
- Scale Performance Across Multiple SSD7101A-1 NVMe RAID Controllers
- Multiple SSD7101A-1 NVMe RAID controllers can be linked and installed into a single system, and deliver up to 256 Gb/s of performance, which is 8x faster than NVMe drives locked behind the Intel DMI 3.0 architecture. A single SSD7101A-1 RAID controller can aggregate multiple M.2 SSD modules at PCIe x16 bandwidth, and double that when used in dual configurations.
- HighPoint NVMe Manager
- Each SSD7101A-1 RAID controller includes a simple, intuitive, web-based management interface designed to provide a wealth of monitoring and configuration options for novice and experts alike. A Quick Configuration menu allows new users to get everything up and running with a few simple clicks, while experienced pros can tweak configurations for specific applications using the Advanced Option Menu.
- Integrated TRIM & S.M.A.R.T. Monitoring with TBW Tracking
- NVMe Manager features TRIM support and S.M.A.R.T. monitoring with total Terabyte Written (TBW) tracking. TRIM support promotes the longevity and endurance of NVMe storage by enabling each SSD to handle garbage collection more efficiently, which helps eliminate write-speed degradation. The S.M.A.R.T. monitoring allows you to check a variety of physical attributes of each NVMe M.2 SSD, including temperature readings, voltage, and TBW. The interface updates attribute data in real time, and can be even be configured to notify you by email in the event of an error condition or threshold warning.

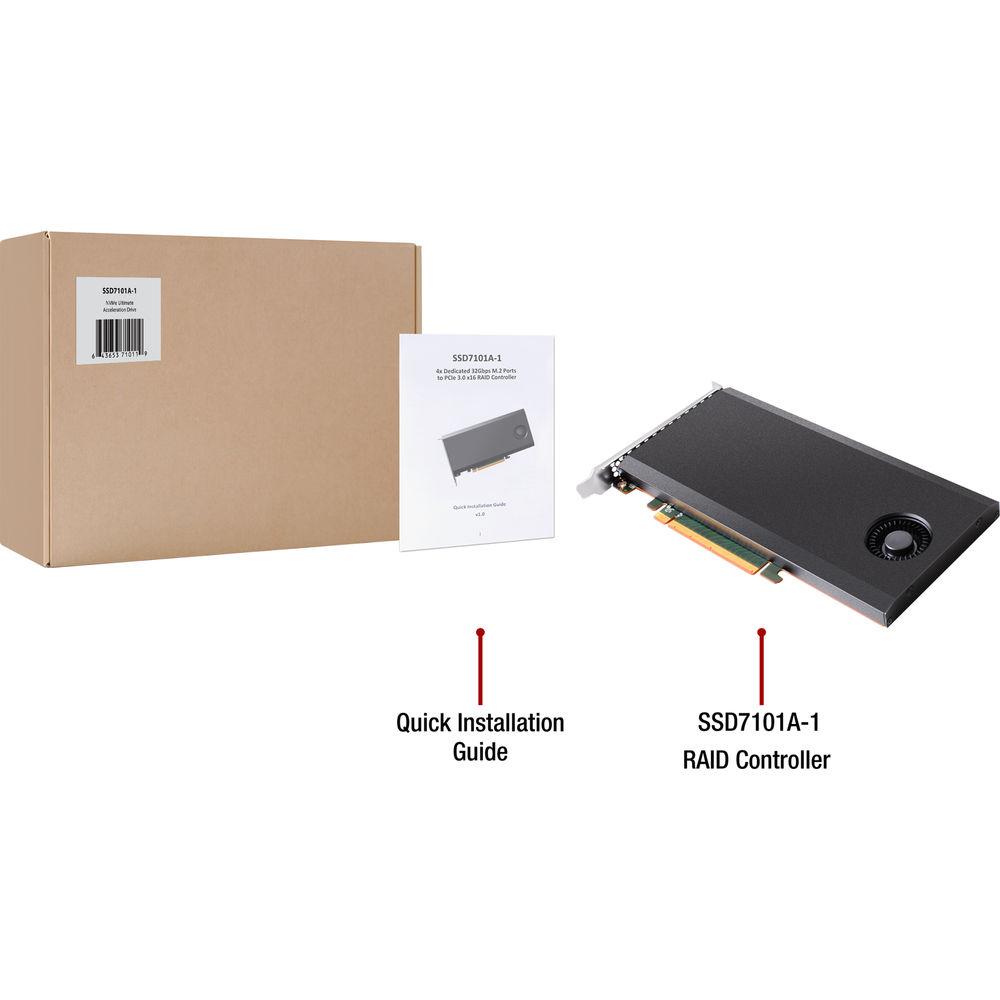

UPC: 643653710119 In the Box HighPoint SSD7101A-1 NVMe M.2 RAID Controller Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint SSD7101A-1 NVMe M.2 RAID Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint SSD7101A-1 Specs | | | Bus Interface | PCI Express 3.0 x16 | | Number of Channels | 4 x NVMe M.2 2280 ports (dedicated PCIe 3.0 x4 per M.2 Port) | | Data Transfer Rates | 8 GT / 8 Gb/s per lane | | Number of Devices Supported | Up to 4 x NVMe M.2 SSDs (Qualified: Samsung 970 & 960 Series) | | Form Factor | Full-height | | Operating System Support | Windows 10 (64-Bit)
Windows Server 2016
Microsoft Hyper V Server 2016
Linux Kernel 3.3 or later
macOS 10.12 and later | | Cooling Fan | Aluminum casing with single 50 x 50 mm cooling fan | | Storage Mode | Data storage only (non-bootable) | | | | RAID Mode Support | RAID 0, 1, 5, 10, and Single (RAID 5 and 10 do not support TRIM) | | | | RAID Management Suites | Browser-Based management tool CLI (Command Line Interface- scriptable configuration tool) API package | | SMTP Email Alert Notification | Yes | | Alarm Buzzer | Yes | | Storage Health Inspector | Yes | | NVMe SMART Status | Yes | | Redundant RAID Configurations | Yes | | Single-RAID and Multi-RAID Arrays per Controller | Yes | | Cross-Sync RAID Solution Over Multi-SSD7101A-1 | Yes | | | | Working Temperature | 41 to 131°F / 5 to 55°C | | Storage Temperature | -4 to 176°F / -20 to 80°C | | Relative Humidity | 5 to 60% non-condensing | | Operating Voltage | PCIe: 12 V, 3.3 V | | Power | Typical: 8 W | | Mean Time Before Failure | 920,585 hours | | Certifications | FCC, CE, ROHS, and REACH | | | | Dimensions | 8.39 x 5.00 x 0.85" / 21.31 x 12.70 x 2.16 cm | | Weight | 0.77 lb / 0.35 kg | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 13.3 x 7.7 x 2.7" |
