Product description Equipped with three M.2 NVMe ports and four SFF-8643 connectors, the SSD7110 NVMe RAID Controller from HighPoint can host fast NVMe RAID storage with performance up to 8000 MB/s, plus up to 16 SAS or SATA drives for high-density configurations. SAS/SATA RAID performance can deliver up to 5000 MB/s when configured with SSDs and up to 3000 MB/s when configured with hard drives. This approach to secondary storage expansion makes the SD7110 suited for applications that require hot and cool RAID storage in an all-in-one solution. The SSD7110 supports up to 224TB of storage, including up to 210TB in a dual-parity redundant RAID 6 configuration, in addition to 6TB of high-speed NVMe storage. General Features - Dedicated PCIe 3.0 x16 Shatters the DMI Performance Bottleneck
- Unlike onboard DMI 3.0 based NVMe solutions, which are forced to share a single PCIe 3.0 x4 lane with the motherboard's SATA and USB ports, the SSD7110 RAID Controller features dedicated PCIe 3.0 x16 bus bandwidth. This architecture allows each SSD to interface directly with the platform's CPU, shattering the performance bottleneck imposed by DMI 3.0 and unlocking the true potential of your NVMe storage.
- Independent, Standalone NVMe SSD Solution
- The SSD7110 RAID controller is a fully independent NVMe RAID solution, and is not tethered to specific motherboards or chipset families—any system sporting a free PCIe 3.0 x16 slot with direct access to the CPU is fair game. The SSD7110's controller architecture supports both hot and cold storage configurations and is ideal for rackmount storage applications such as rendering servers or local storage servers that require high-speed data processing and mass storage capability in a single RAID controller.
- Comprehensive NVMe Booting Solution
- The SSD7110 supports a variety of NVMe-based boot configurations. Users can configure up to three M.2 SSDs to act as individual drives (single/JBOD) and set up each to function as a separate boot volume. In addition, two types of bootable RAID arrays can be configured: RAID 0 for maximum performance, or RAID 1 for security.
- Shield and Cool your SSDs

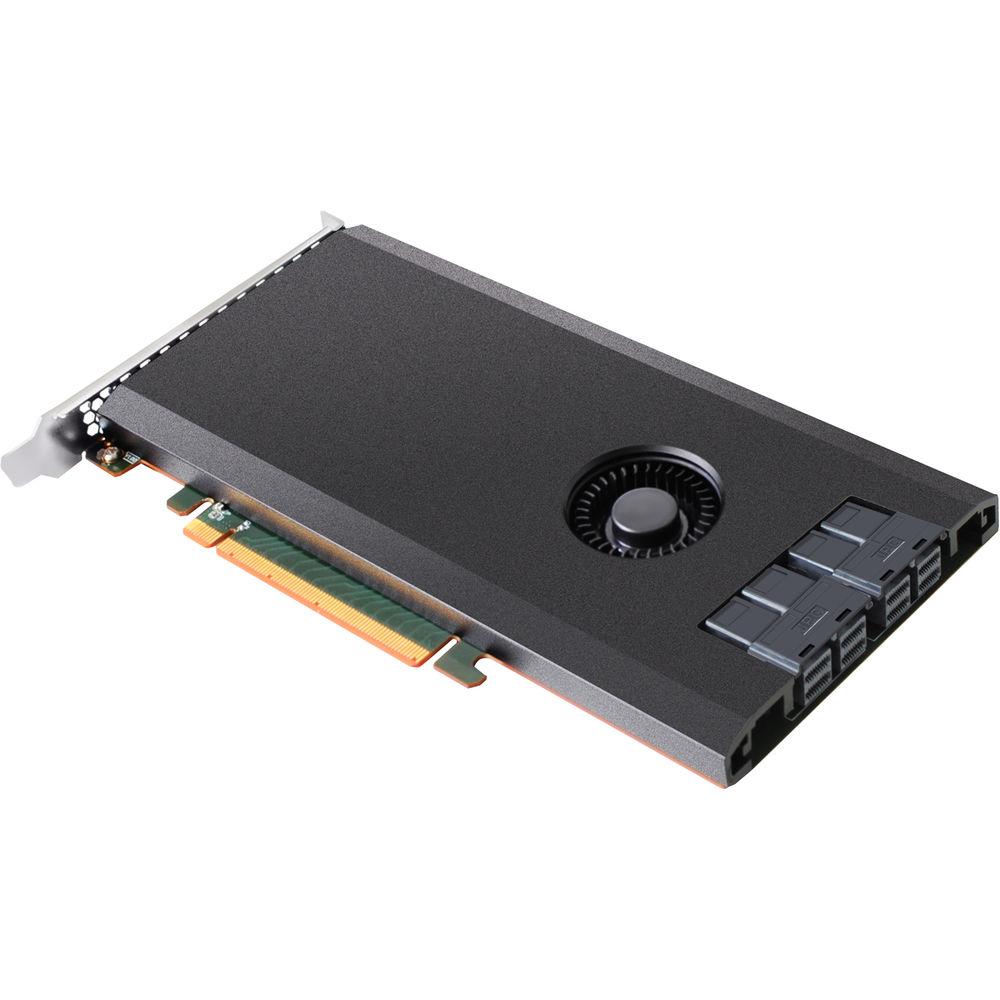

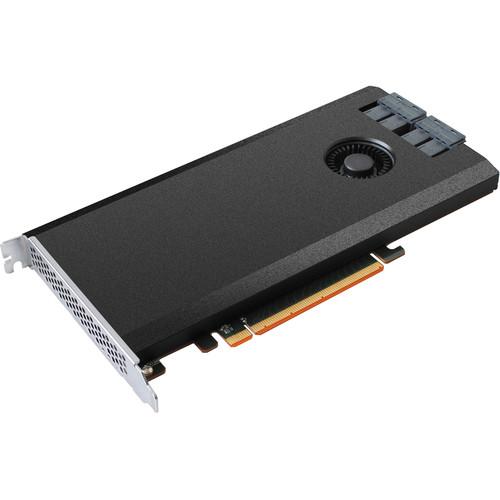

- The SSD7110 is engineered to excel in high-stress conditions. The all-aluminum casing naturally dissipates waste heat away from the SSD modules, while the integrated fan and heat sink work together to eject excess heat away from the RAID controller's vital components and keep ambient temperatures manageable and cool.
- NVMe RAID Management with Integrated TRIM, and S.M.A.R.T. Monitoring with TBW Tracking
- The NVMe Manager portion of the RAID Management interface features TRIM support, and S.M.A.R.T. monitoring with total Terabyte Written (TBW) tracking. TRIM support promotes the longevity and endurance of NVMe storage by enabling each SSD to handle garbage collection more efficiently, which helps eliminate write speed degradation. S.M.A.R.T. monitoring allows you to check a variety of physical attributes of each NVMe M.2 SSD, including temperature readings, voltage, and TBW. The interface updates attribute data in real time and can be even be configured to notify you by email in the event of an error condition or threshold warning.
- Integrated 16-Drive SAS/SATA RAID Storage Solution

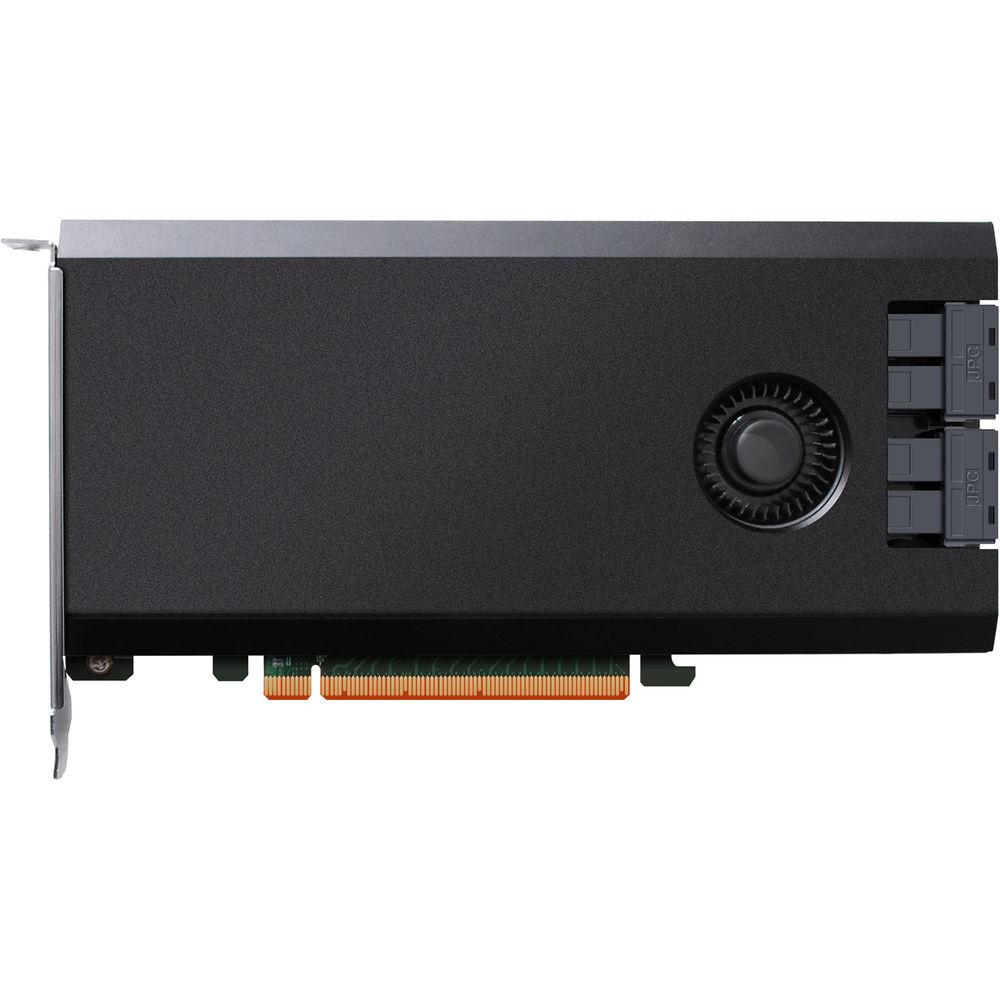

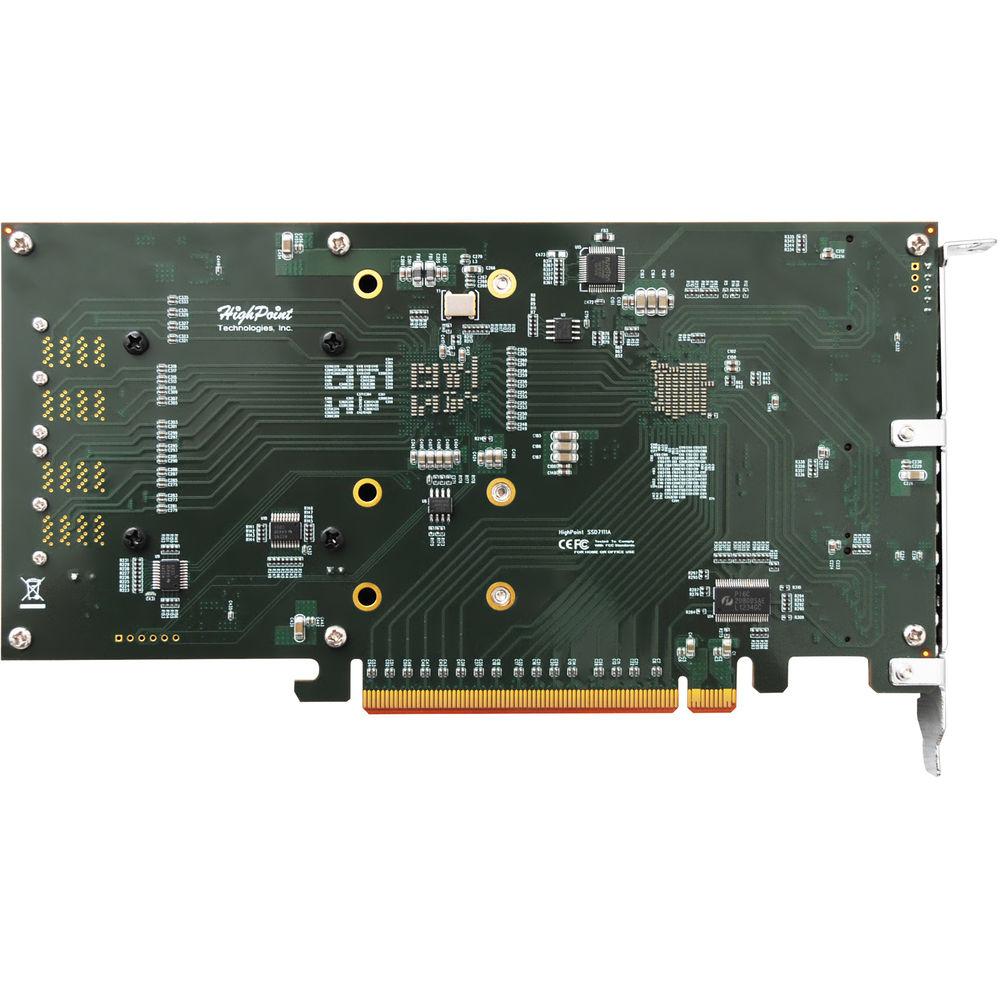

- In addition to the three 2280 M.2 NVMe ports, the SSD7110 RAID Controller features four SFF-8643 connectors, each of which can support up to four SAS/SATA Enterprise or RAID class hard drives for a total storage capacity of up to 224TB. The SSD7110's combination of high-speed M.2 support with massive storage expansion capability is well suited to a variety of storage applications. Integrated SAS/SATA RAID technology allows the SSD7110 to support 0, 1, 5, 6, 10, 50, and JBOD RAID configurations, in addition to non-RAID single-disk mode.
- Performance
- The SSD7110 delivers over 8000 MB/s of NVMe RAID performance, over 5000 MB/s of SAS/SATA RAID SSD performance, and up to 3000 MB/s of SAS/SATA RAID HDD performance.
- NVMe RAID Management
-
- SMTP email alert notification
- Storage health inspector
- NVMe SMART status
- Global hot spare disk support
- Automatic and configurable RAID rebuilding priority
- Auto resume incomplete rebuilding after
- Single-RAID or multi-RAID arrays per controller
- Cross-sync RAID solution across controllers
- Advanced SAS RAID Features
-
- Storage Health Inspector (SHI)
- Redundant RAID configurations
- Up to four RAID partitions
- Direct attached storage configurations
- Online array roaming
- Online RAID Level Migration (ORLM)
- Online Capacity Expansion (OCE)
- RAID quick initialization for fast array setup
- Drive hot-plug support
- Global hot spare disk support
- Automatic and configurable RAID rebuilding priority
- Auto resume incomplete rebuilding after power on or reboot system
- Compatible with 512, 512e, and 4Kn disk formats
- Larger than 2TB drive and RAID array support
- Spin down massive arrays of idle disks support
- Native command queuing
- SAS TCQ
- Disk media scan and repair
- Device error recovery support
- Automatic remap and fix drive bad block for RAID array (RAID 1, 5, 6, 1/0, 50)
- Staggered drive spin up (spin up four disks every 2 sec)
- Write back and write through

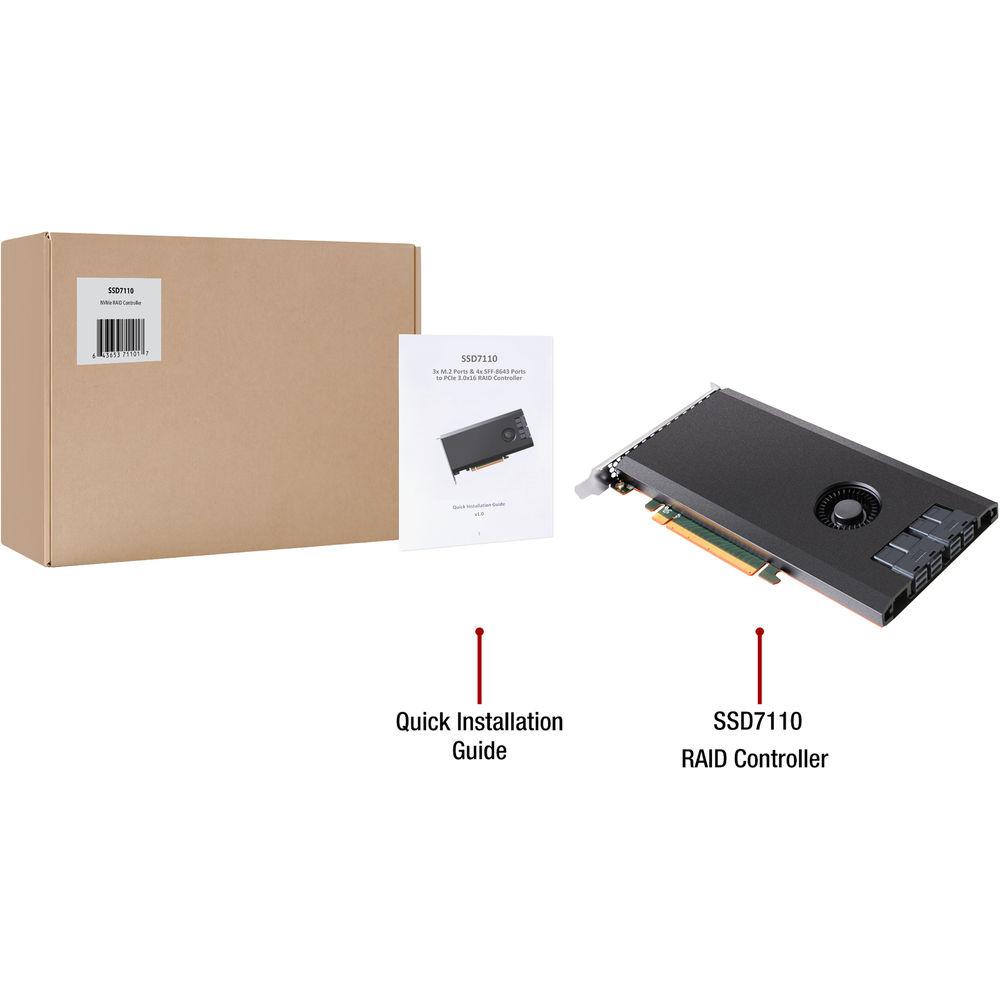

UPC: 643653711017 In the Box HighPoint SSD7110 NVMe RAID Controller Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint SSD7110 NVMe RAID Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint SSD7110 Specs | | | Bus Interface | PCI-Express 3.0 x16 | | Number of Ports | 3 x NVMe M.2 2280 ports (dedicated PCIe 3.0 x4 per port) | | Data Transfer Rates | 8 GT per lane / 8 Gb/s per lane | | Number of Devices | 3 x NMVe M.2 SSDs
16 x SAS/SATA drives | | Operating System Support | Windows 10 (64-bit), macOS 10.12 and later, and Linux Kernel 3.3 or later | | | | RAID Modes Supported | Single, RAID 0/1/5 | | TRIM RAID Support | Windows: Single, RAID 0/1
Linux: Single, RAID 0/1 | | Storage Mode | Bootable and data RAID | | RAID Management Suites | Browser-Based management tool
CLI (Command Line Interface- scriptable configuration tool)
API package | | | | Integrated SAS Ports | 16x internal SAS 12 Gb / SATA 6 Gb Ports (4x SFF-8643 connectors) | | RAID Modes Supported | 0, 1, 5, 6, 1/0, 50, and JBOD / non-RAID mode | | Management Interface | SGPIO | | | | Operating Temperature | 41 to 131°F / 5 to 55°C | | Storage Temperature | -4 to 176 / -20 to 80°C | | Operating Voltage | PCIe: 12, 3.3 V | | Power | Typical: 8 W | | MTBF | 920,585 hours | | Certifications & Approvals | FCC, CE, ROHS, and REACH | | | | Enclosure Material | Aluminum | | Cooling Fan | 1x 2 x 2" / 5 x 5 cm | | Form Factor | Full height | | Dimensions | 5.97 x 2.68 x 0.06" / 15.16 x 6.81 x 0.15 | | Weight | 0.77 lb / 349 g | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 13.3 x 7.6 x 2.6" |
