User Manual for HighPoint Ultra-High Performance Flexible NVMe U.2 RAID Controller Click to enlarge the picture
Contents of the user manual for the HighPoint Ultra-High Performance Flexible NVMe U.2
- Product category: Controller Cards HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint Controller Cards
 |
User manual for the HighPoint Ultra-High Performance Flexible NVMe U.2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|

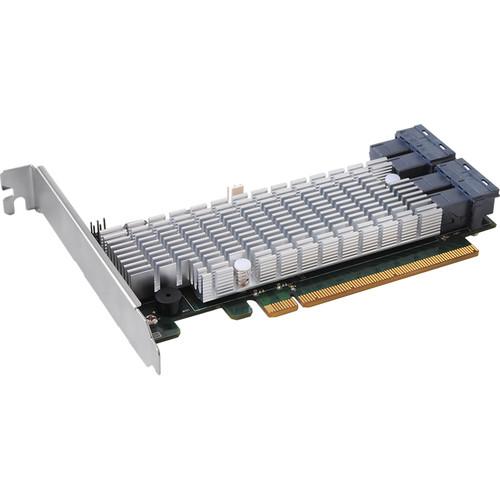

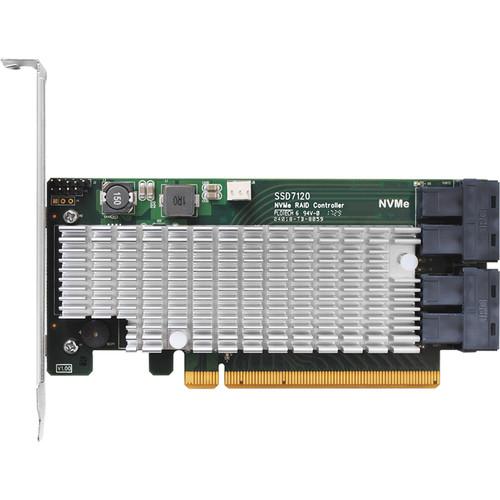

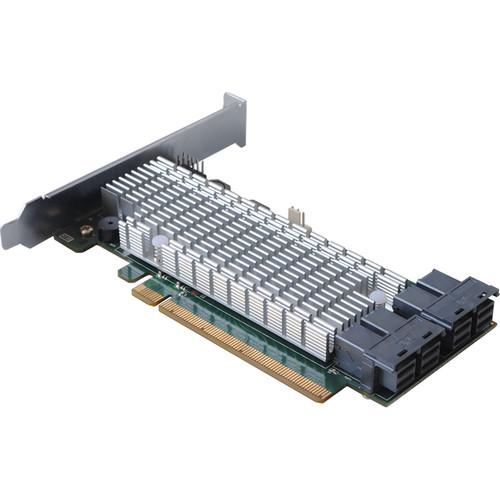

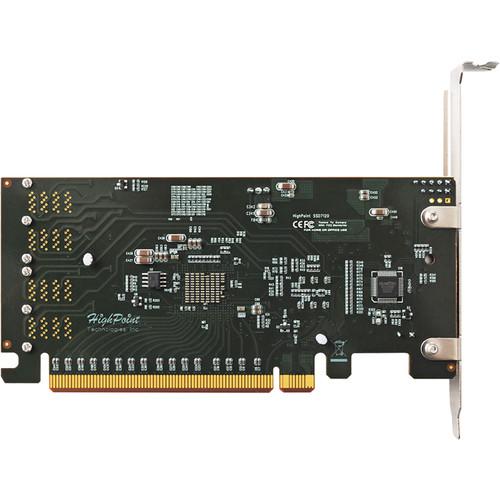

Product description Designed for desktop & workstation platforms, the NVMe U.2 RAID Controller from HighPoint delivers transfer performance up to 8 times faster than onboard NVMe solutions, and up to 44 times faster than conventional SATA SSDs. The SSD7120's hardware architecture provides four dedicated PCIe 3.0 x4 bus bandwidth for each U.2 SSD, unlocking the performance potential of NVMe-based storage configurations. Equipped with four U.2 NVMe ports, the SSD7120 can host up to 8TB of fast NVMe RAID storage. The U.2 ports simplify upgrade and maintenance procedures and are compatible with a wide range of 2.5" rackmount chassis. - Dedicated PCIe 3.0 x16 Shatters the DMI Performance Bottleneck
- Similar to video cards, the SSD7120 delivers dedicated PCI 3.0 x16 bus bandwidth to enhance performance. Unlike onboard DMI 3.0 based NVMe solutions, which are forced to share a single PCIe 3.0 x4 lane with the motherboard's SATA and USB ports, SSD7100 series RAID Controllers feature dedicated PCI 3.0 x16 bus bandwidth. This architecture allows each SSD to interface directly with the platform's CPU, shattering the constrictive performance bottleneck imposed by DMI 3.0 and unlocking the true potential of your NVMe storage.
- Independent, Standalone NVMe SSD Solution
- The SSD7120 RAID controller is a fully independent NVMe RAID solution, and is not tethered to specific motherboards or chipset families. Any system sporting a free PCIe 3.0 x16 slot with direct access to the CPU is fair game, making this RAID controller suitable for use with a wide variety of high-end desktops, custom gaming PCs, and media workstations.
- Flexible 2.5" U.2 Form Factor
- The U.2 ports provide flexibility when selecting a hardware platform. The connectors are compatible with a wide selection of 2.5" form-factor rackmount chassis. In addition, the industry-standard SFF-8639 connectors accept cables of varying length, allowing the SSD7120 RAID controller to be easily integrated into custom chassis. This design simplifies field upgrades and maintenance sessions, and is ideal for chassis that require removable drive trays for quick access to storage devices.
- Maximizing Your NVMe RAID Performance
- The SSD7120 aims at making NVMe storage expansion quick, painless, and intuitive for users of any experience level.
- Scale Performance Across Multiple SSD7100 Series RAID Controllers
- Multiple SSD7120 NVMe RAID controllers can be linked and installed into a single system to deliver up to 256 Gb/s of performance—eight times faster than NVMe drives locked behind the Intel DMI 3.0 architecture. A single SSD7120 controller can aggregate multiple NVMe SSDs at PCIe x16 bandwidth, and double that when used in dual configurations.
- NVMe RAID Management with Integrated TRIM & S.M.A.R.T. Monitoring with TBW Tracking
- The NVMe Manager portion of the RAID Management interface features TRIM support, and S.M.A.R.T. monitoring with total Terabyte Written (TBW) tracking. TRIM support promotes the longevity and endurance of NVMe storage by enabling each SSD to handle garbage collection more efficiently, which helps eliminate write speed degradation. S.M.A.R.T. monitoring allows you to check a variety of physical attributes of each NVMe SSD, including temperature readings, voltage, and TBW. The interface updates attribute data in real time, and can be even be configured to notify you by email in the event of an error condition or threshold warning.

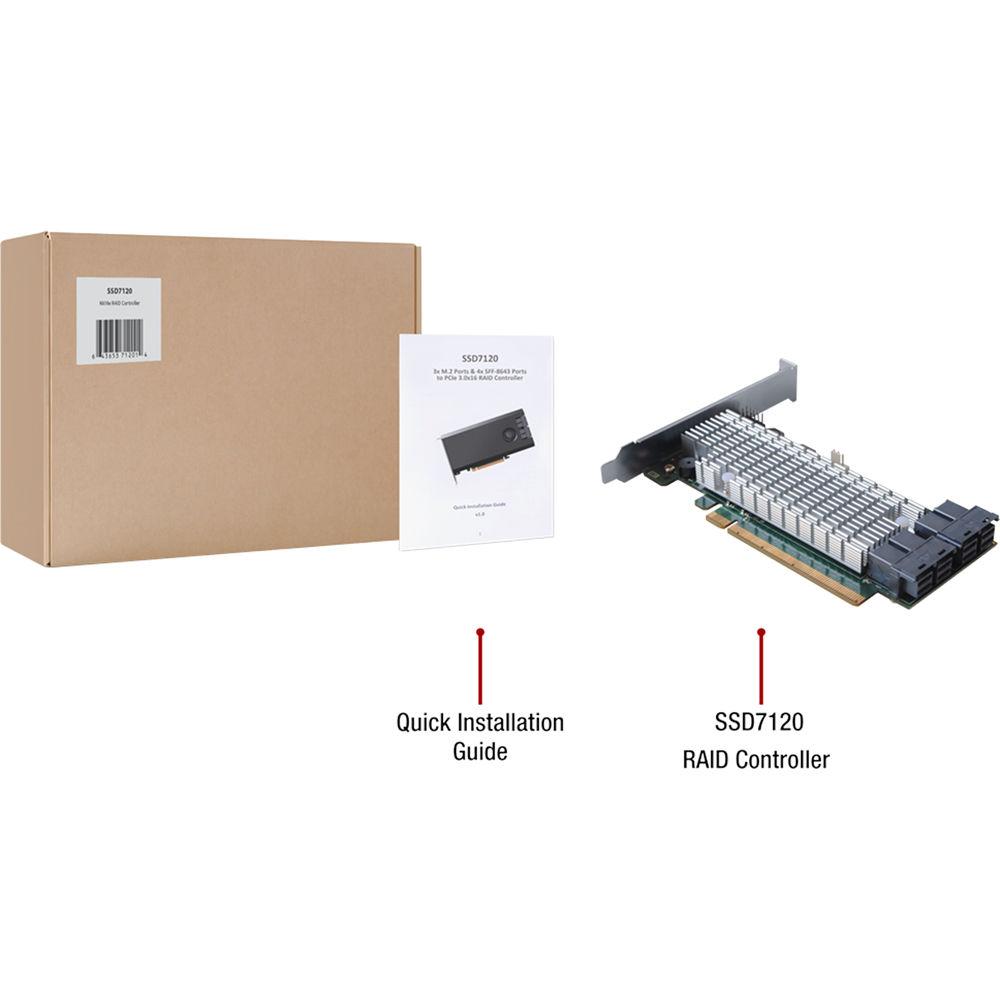

UPC: 643653712014 In the Box HighPoint Ultra-High Performance Flexible NVMe U.2 RAID Controller Low-Profile Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint Ultra-High Performance Flexible NVMe U.2 RAID Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint SSD7120 Specs | Bus Interface | PCI Express 3.0 x16 | | Number of Channels | 4 x NVME U.2 ports (dedicated PCIe 3.0 x4 per port) | | Data Transfer Rates | 8 GT per lane / 8 Gb/s per lane | | Maximum Number of Devices | 4 x NMVe U.2 SSDs | | Form Factor | Low profile | | Operating System Support | Windows 10 (64-bit), macOS 10.12 and later, Linux Kernel 3.3 or later | | Cooling | Heat sink | | Storage Mode | Data storage | | RAID Modes Supported | RAID 0, 1, 5, 1/0 (10), JBOD, and Single | | RAID Management | SMTP email alert notification , alarm buzzer, storage health inspector, NVMe SMART status, redundant RAID configurations, single-RAID and multi-RAID arrays per controller, and cross-sync RAID solution over multi-SSD7101A-1 controllers
Suites: Browser-based management tool, CLI (Command Line Interface scriptable configuration tool), API package
CLI (Command Line Interface- scriptable configuration tool)
API package | | Temperature | Operating: 41 to 131°F / 5 to 55°C
Storage: -4 to 176°F / -20 to 80°C | | Relative Humidity | 5 to 60%, non-condensing | | Operating Voltage | PCIe: 12 V, 3.3 V | | Power | 8 W | | MTBF | 920,585 hours | | Certifications & Approvals | FCC, CE, ROHS & REACH | | Dimensions | 6 x 2.7 x 0.1" / 15.2 x 6.8 x 0.2 cm | | Weight | 0.8 lb / 0.4 kg | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 7.9 x 6.9 x 1.9" |
