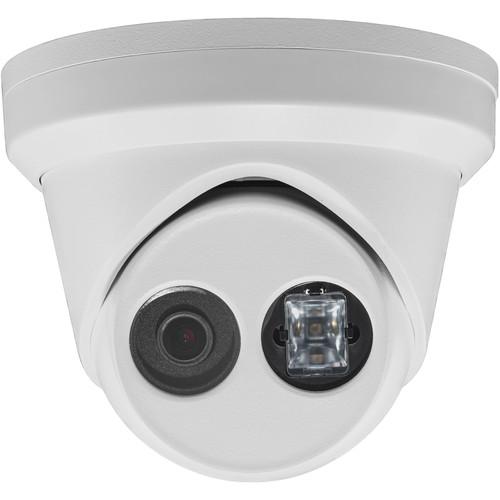

User Manual for Hikvision 1.3MP EXIR Turret Network Camera with 2.8mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision 1.3MP EXIR Turret Network Camera
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision 1.3MP EXIR Turret Network Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The EXIR Turret Network Camera from Hikvision is a 1/3" 1.3MP sensor dome camera that records video up to 1280 x 960 resolution at 30 fps. This dome camera has a 2.8mm lens and an EXIR illuminator with a maximum range of 100' for optional nighttime viewing. It features H.264 and MJPEG video compression, a day and night IR cut filter with an auto switch, digital noise reduction (3D-DNR), digital wide dynamic range, and backlight compensation that is zone configurable. The camera can be powered via PoE, simplifying installation and minimizing cable runs and is rated IP66 for water resistance. UPC: 842571108347 In the Box Hikvision 1.3MP EXIR Turret Network Camera with 2.8mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 1.3MP EXIR Turret Network Camera with 2.8mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2312WD-I Specs | | | Sensor | 1.3 MP 1/3" CMOS | | Lens Mount | M12 | | Focal Length | 2.8mm | | Maximum Aperture | f/2 | | Lens Field of View | Horizontal: 92.5° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.01 Lux
B&W: 0 Lux | | Shutter Speed | 1/100000 to 1/3 Seconds | | | | Streaming Resolution | 1280 x 960 at 30 fps
1280 x 720 at 30 fps
704 x 576 at 30 fps
640 x 480 at 30 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | , 2 Streams | | Automatic Gain Control | Yes | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, , ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | ONVIF, ISAPI | | Event Trigger | Yes | | Event Action | Recording, Alarm | | Data Streaming | Yes | | | | Recording Media | None | | Pan/Tilt | Manual Pan: 360°
Manual Tilt: 75° | | I/O Connections | 1 x Power
1 x RJ45 | | IR Range | 100' / 30.48 m | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 7.5 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP66 | | Dimensions |
