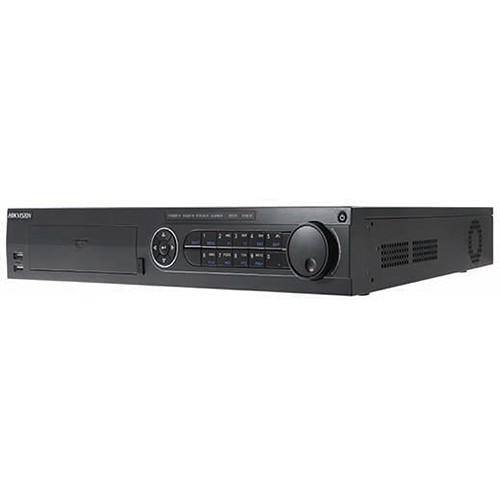

Product description Featuring HD-TVI BNC inputs, which allow sending uncompressed, high-resolution video over coaxial cable, Hikvision's 16-Channel 1080p Triple Hybrid Turbo HD DVR bridges the gap between analog and IP camera signals by allowing users to run IP-quality images over existing coaxial infrastructure. The HD-TVI inputs also support standard analog cameras, so keep your infrastructure and record from standard definition up to 1080p signals in real-time on all 16 channels.
Turbo HD supports up to four SATA interface HDDs, each at up to 6TB. Export data via SATA, eSATA, or USB. Output via HDMI and VGA (in up to 1080p), and CVBS. Turbo HD is also capable of dual-streaming and up to 16-channel synchronous playback at 1080p. - Key Features
-
- Connect to HD-TVI and analog cameras
- Connect to the Coaxitron camera/dome with long transmission distance
- Connect to IP cameras from Hikvision HDVR series
- Each channel supports dual-streaming
- Main stream supports up to 1080p resolution and sub-stream up to WD1
- Independent configuration for each channel, including resolution, frame rate, bit rate
- Encode both video and video/audio stream
- Video and audio synchronization during composite stream encoding
- Watermark technology
- Local Monitoring
-
- Simultaneous HDMI, VGA, CVBS output
- HDMI and VGA output at up to 1920 x 1080 resolution
- 1/4/6/8/9/16 screen live view supported
- Adjustable display sequence of screens
- Quick setting menu is provided for live view
- Selected live view channel can be shielded
- Motion detection
- Video-tampering detection
- Video exception alarm and video loss alarm functions
- Privacy mask
- Several PTZ protocols supported
- Zoom in/out by clicking the mouse
- PTZ tracing by dragging the mouse
- Recording & Playback
-
- Holiday recording schedule configuration
- Cycle and non-cycle recording modes
- Normal and event video encoding parameters
- Multiple recording types: manual, continuous, alarm, motion, motion/alarm, motion & alarm
- 8 recording time periods with separated recording types
- Pre-record and post-record for motion detection triggered recording
- Pre-record time for schedule and manual recording
- Search record files by events (alarm input/motion detection)
- Customize of tags; search and play back by tags
- Lock and unlock record files
- Local redundant recording
- Search and play back files by camera number, recording type, start time, end time
- Smart playback for going through less important information
- Reverse playback of multi-channel
- Up to 16-ch synchronous playback at 1080p
- Backup
-
- Export data by USB, SATA, or eSATA device
- Export video clips during playback
- Management and maintenance of backup devices
- Network Functions
-
- 10M / 100M / 1000M self-adaptive Ethernet interface
- IPv6 supported
- TCP/IP protocol, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS supported
- Extranet access by HiDDNS
- Supports access by EZVIZ Cloud P2P
- TCP, UDP, and RTP for unicast
- Auto/Manual port mapping by UPnP
- Remote search, playback, download, locking, and unlocking
- Remote parameters setup
- Remote import/export of device parameters
- Remote viewing of the device status, system logs, and alarm status
- Remote keyboard operation
- Remote locking and unlocking of control panel and mouse
- Remote HDD formatting and program upgrading
- Remote system restart and shutdown
- Upgrade via remote FTP server
- RS-232, RS-485 transparent channel transmission
- Alarm and exception information can be sent to the remote host
- Remotely start/stop recording
- Remotely start/stop alarm output
- Remote PTZ control
- Remote JPEG capture
- Two-way audio and voice broadcasting
- Embedded WEB server
UPC: 816783019258 In the Box Hikvision 16-Channel 1080p Triple Hybrid Turbo HD DVR with 3TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 16-Channel 1080p Triple Hybrid Turbo HD DVR with 3TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision Tribrid Specs | Video Compression | H.264 | | Analog & HD-TVI Video Input | 16x BNC interface (1.0 V p-p, 75 Ohms) | | Supported Camera Types | 720p25, 720p30, 720p50, 720p60, 1080p25, 1080p30, CVBS | | Audio Compression | G.711u | | Audio Input | 4 x RCA (2.0 V p-p, 1 kOhms) | | Two-Way Audio Input | 1 x RCA (2.0 V p-p, 1 kOhms) | | HDMI / VGA Output | 1920 × 1080 at 60 Hz, 1280 × 1024 at 60 Hz, 1280 × 720 at 60 Hz, 1024 × 768 at 60 Hz | | CVBS Output | 1 x BNC (1.0 V p-p, 75 Ohms)
NTSC Resolution: 704 × 480, PAL Resolution: 704 × 576 | | Encoding Resolution | Main Stream: 1080p, 720p, VGA, 4CIF, CIF
Sub-Stream: WD1 (non-real-time), 4CIF (non-real-time), CIF, QCIF, QVGA | | Frame Rate | Main Stream: 1/16 fps ~ real-time frame rate
Sub-Stream: 1/16 fps ~ real-time frame rate | | Video Bit Rate | 32 kbps to 10 Mbps | | Audio Bit Rate | 64 kbps | | Dual Streaming | Yes | | Stream Type | Video, Video & Audio | | Synchronous Playback | 16 channels | | Playback Resolution | 1080p, 720p, VGA, WD1, 4CIF, CIF, QVGA, QCIF | | Remote Network Connections | 128 | | Network Protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS | | Storage | 4 SATA interfaces for 4 HDDs (up to 6 TB each)
1 eSATA interface
3 TB HDD pre-installed | | Network Interface | 1x 10M / 100M / 1000M self-adaptive Ethernet interface | | Serial Interface | RS-232, RS-485, Keyboard | | USB Ports | 3 x USB 2.0 | | Alarm Input / Output | 16 / 4 | | Power Supply | 100 - 240 VAC, 47 - 63 Hz | | Power Consumption | ≤55 W (without hard disks) | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Operating Humidity | 10 to 90% | | Chassis | 19" rack-mounted 1.5U chassis | | Dimensions | 17.5 × 15.3 × 2.7" (45 x 39 x 7 cm) | | Weight | 11 lb (5 kg) |
