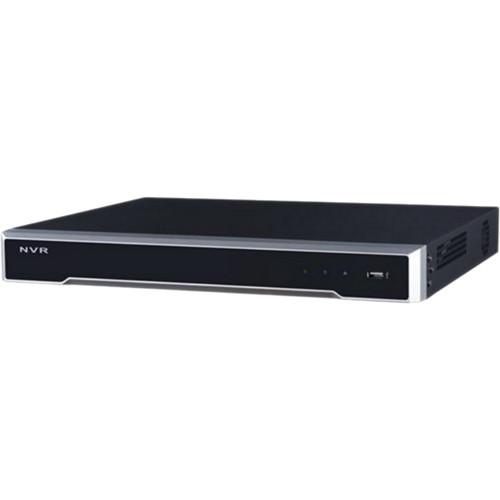

User Manual for Hikvision 16-Channel 12MP Plug-and-Play NVR with 6TB HDD Click to enlarge the picture
Contents of the user manual for the Hikvision 16-Channel 12MP Plug-and-Play NVR with
- Product category: Network Video Recorders (NVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Network Video Recorders (NVRs)
|
User manual for the Hikvision 16-Channel 12MP Plug-and-Play NVR with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Record and save video from up to 16 cameras with the 16-Channel 12MP Plug-and-Play NVR from Hikvision. With 16 PoE-injected ports, this NVR features plug-and-play functionality for quick setup and use. It can record and play back up to 12MP resolution video using H.264, H.264+, H.265, and H.265+ compression codecs and comes with a 1TB HDD presinstalled to save video from all 16 channels.. HDMI and VGA outputs enable you to display video in up to 4K resolution, and there are two USB ports for transferring data to external devices. It also offers two-way audio through an RCA input and output. - 16-channel NVR with 16 PoE-injected ports
- Up to 12MP recording resolution
- Up to 160 Mbps incoming bandwidth and 256 Mbps outgoing bandwidth
- HDMI and VGA outputs for up to 4K video output
- Up to 128 remote connections
- Two-way audio support via RCA input and output
- 6TB HDD preinstalled, supports up to 12TB (2 x 6TB)
- Four alarm inputs and one output
- Supports network detection, network delay, packet loss
- Plug-and-play functionality for quick setup and configuration
UPC: 813908028386 In the Box Hikvision 16-Channel 12MP Plug-and-Play NVR with 6TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 16-Channel 12MP Plug-and-Play NVR with 6TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-7616NI-I2/16P-6TB Specs | Channels | 16 x channels with built-in PoE | | Audio | 1-channel RCA input (2 V p-p, 1 kOhm)
1-channel RCA output (linear, 1 kOhm) | | Bandwidth | Incoming: Up to 160 Mbps
Outgoing: Up to 256 Mbps | | Remote Connections | 128 | | HDMI Output Resolution | 4K (3840 × 2160) at 60 Hz
4K (3840 × 2160) at 30 Hz
2K (2560 × 1440) at 60 Hz
1920 × 1080p at 60 Hz
1600 × 1200 at 60 Hz
1280 × 1024 at 60 Hz
1280 × 720 at 60 Hz
1024 × 768 at 60 Hz | | VGA Output Resolution | 1920 × 1080p at 60 Hz
1280 × 1024 at 60 Hz
1280 × 720 at 60 Hz
1024 × 768 at 60 Hz | | Recording Resolution | 12, 8, 6, 5, 4, and 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF | | Synchronous Playback | 16-channel | | Live View / Playback Resolution | 12, 8, 6, 5, 4, and 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF | | Compression | H.264, H.264+, H.265, H.265+ | | Decoding | Capacity: 4-channel at 4K, 16-channel at 1080p | | HDD Interface | 2 x SATA | | HDD Capacity | 6 TB preinstalled, supports up to 12 TB (2 x 6 TB) | | Network Interface | RJ45 10/100/1000Mbps self-adaptive Ethernet | | USB | 1 x USB 2.0 and 1 x USB 3.0 | | Alarm Input | 4-channel | | Alarm Output | 1-channel | | PoE Interface | 16 x independent 10/100Mbps IEEE 802.11af/at | | PoE Power | Maximum 200 W | | Power Supply | 100-240 VAC, 50/60 Hz | | Power Consumption | ≤15 W without HDD and PoE | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Operating Humidity | 10-90% | | Dimensions | 15.2 x 12.4 x 2" (385 x 315 x 52 mm) | | Weight | Approximately 6.6 lb (3 kg) | | | | Package Weight | 9.63 lb | | Box Dimensions (LxWxH) | 18.0 x 15.3 x 5.2" |
