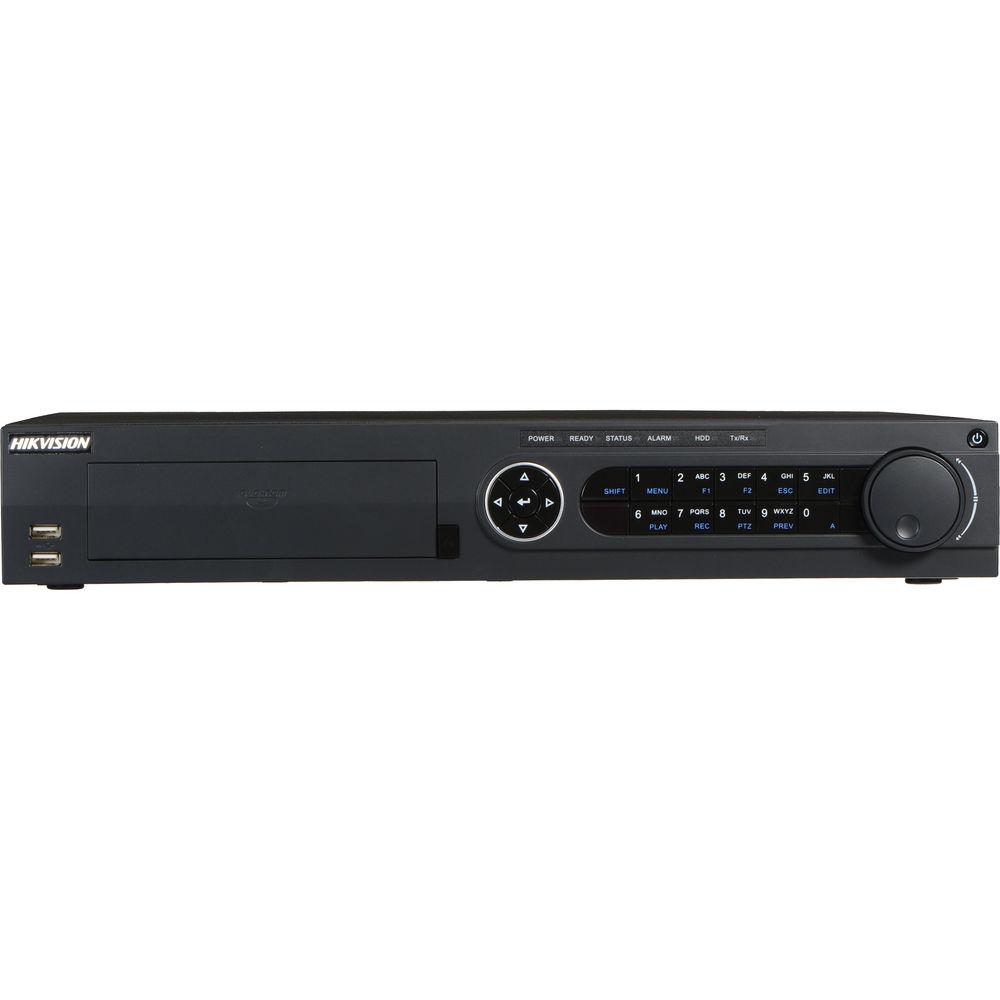

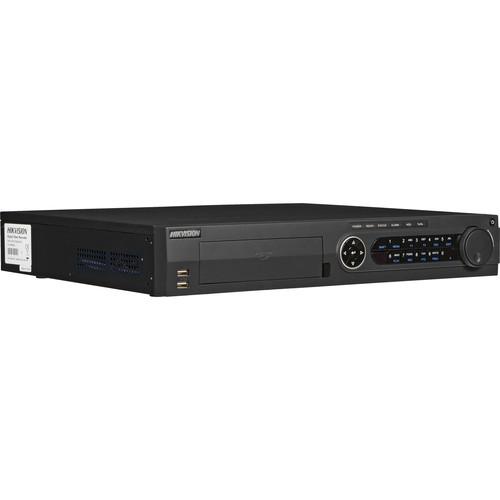

User Manual for Hikvision 16-Channel Embedded Plug-and-Play NVR with 2TB HDD Storage Click to enlarge the picture
Contents of the user manual for the Hikvision 16-Channel Embedded Plug-and-Play NVR with
- Product category: Network Video Recorders (NVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Network Video Recorders (NVRs)
 |
User manual for the Hikvision 16-Channel Embedded Plug-and-Play NVR with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The Hikvision DS-7716NI-SP/16 supports up to 16 network cameras -- both Hikvision and 3rd-party PoE cameras -- via 16 independent plug-and-play PoE interfaces, and records at up to 5 megapixels, including at Full HD 1080p resolution. Recording parameters, such as resolution, frame rate, and bit rate, are configurable for each channel. Four internal SATA slots each support up to a 6TB HDD, allowing you to build up the system to have a total of 24TB of storage space. 2TB of HDD storage space is included, already pre-installed. An external eSATA port supports an additional 2TB HDD for backup. Please note the unit supports 16 camera inputs at 720p, and 8 inputs at 1080p - Compression
-
- Dual-stream per channel
- H.264 video compression
- Configurable input/output quality
- Locally/remotely configurable compression parameters (continuous and event)
- Local Monitoring
-
- Simultaneous HDMI, VGA, and CVBS outputs
- HDMI and VGA output at up to 1080p resolution
- Division live view (1, 4, 6, 8, 9, 16) supported
- Adjustable screen display sequence
- Selected live view channel can be shielded
- Motion detection, tamper-proof, video exception alert, and video loss alert functions
- Manual video quality detection and handling
- Privacy mask
- Supports multiple PTZ protocols (PTZ preset, patrol, and pattern)
- Zoom in (mouse click) and PTZ tracing (mouse drag) functions
- Recording, Capture, and Playback
-
- Holiday recording schedule configuration
- Continuous and event video encoding parameters
- 8 recording periods with separate recording types (configurable)
- Pre-record and post-record for alarm, motion detection for recording, and pre-record time for schedule
- Search record files and captured pictures by events (alarm input/motion detection)
- Customization tags, searching, and playing back by tags
- Supports locking and unlocking recorded files
- Search and play back recorded files by channel number, recording type, start time, and end time
- Smart search for motion event when playing back
- Supports zooming in during playback
- Reverse playback for multiple channels
- Supports pause, speed up, speed down, skip forward, and skip backward during playback
- Synchronous playback for up to 16 channels
- Smart playback feature
- Continuous capture of video images and playback of captured pictures
- Supports selecting the main stream, sub stream, or transcoded stream as the recording stream
- Backup
-
- Export video data to USB or eSATA device
- Export video clips when playing back
- Management and maintenance of backup devices
- Automatic backup to eSATA device
- Clone hard drives to eSATA device
- Alarm and Exception
-
- Alarm for video loss, motion detection, tampering, HDD full, HDD error, network disconnection
- IP conflict, illegal login, video signal exception, input/output video standard mismatch, and recording/capture exception
- Alarm triggers full screen monitoring, audible warning, surveillance center notification, email alert, and alarm output
- Automatic restore when system is abnormal
- Push alarm notification function
- Other Local Functions
-
- Control via the front panel, mouse, remote control, or control keyboard
- 3-level user management — admin can create multiple accounts and define their permissions, including access to any channel
- Operation, alarm exceptions, and information log recording and searching
- Import and export device configuration information
- Network
-
- 1 self-adaptive 10/100/1000 Mb/s network interface
- Configurable working modes (multi-address, load balance, and network fault tolerance)
- Supports IPv6
- TCP/IP protocol, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, UPnP, NFS, and iSCSI supported
- TCP, UDP and RTP for unicast
- Auto/manual port mapping and automatic discovery by UPnP
- Remote Web browser access by HTTPS ensures high security
- Remote search, playback, download, locking and unlocking of recorded files, and resuming transfer of incomplete downloaded files
- Remote parameters setup (import/export of device parameters)
- Remote viewing of device status, system logs, and alarm status
- Remote keyboard operation, locking and unlocking of control panel and mouse, HDD formatting and program upgrade, system restart and shutdown, PTZ control and JPEG capture
- Remotely start/stop recording and alarm output
- Alarm and exception information can be sent to the remote host
- Supports remote upgrade via FTP server
- Two-way voice talk and voice broadcasting
- Embedded Web server
- N+1 hot spare function
- Supports ANR (Automatic Network Replenishment) technology
- Supports virtual host function
- Development Support
-
- SDK for Windows and Linux OS
- Source code of application software for demo
- Development support and training for application system
UPC: 816783016554 In the Box Hikvision 16-Channel Embedded Plug-and-Play NVR with 2TB HDD Storage USB Mouse IR Remote (Batteries Not Included) Power Cord Set of 2 Rack Mount Ears Manual/Software CD Quick Start Guide Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 16-Channel Embedded Plug-and-Play NVR with 2TB HDD Storage in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

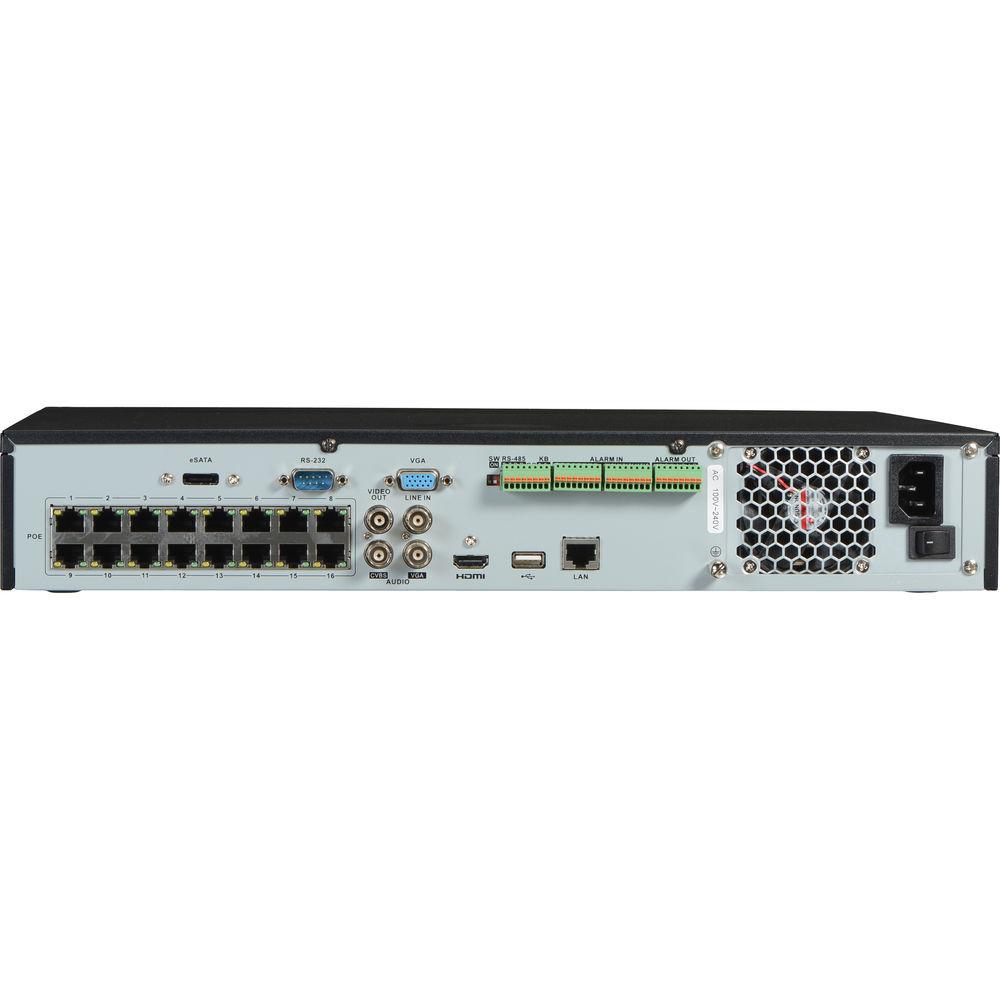

Technical parametersHikvision DS-7716NI-SP/16-2TB Specs | IP Video Inputs | 16 x RJ-45 independent 100 Mbps PoE network interfaces
200 W max power for total of all 16 inputs All ports comply with 802.3at (<30 W) and 802.3af (<15 W) | | Audio Input | 1 x BNC (2 Vp-p, 1 kohm); (two-way audio / bidirectional) | | Network Bandwidth | Incoming: 80 Mbps; Outgoing: 240 Mbps | | Camera Inputs | 1080p: 8
720p: 16 | | Remote Connection | 128 | | Recording Resolution | 5 MP, 3 MP, 1920 x 1080p, UXGA, 1280 x 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF | | CVBS Output | 1 x BNC (1 Vp-p, 75 ohms)
Resolution: 704 x 480 (NTSC), 704 x 576 (PAL) | | Frame Rate | Main stream: 30 fps; Sub-stream: 30 fps | | HDMI Output | 1 x HDMI type A
Resolution: 1920 x 1080p at 60/50 Hz, 1600 x 1200 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz, 1024 x 768 at 60 Hz | | VGA Output | 1 x D-Sub 15
Resolution: 1920 x 1080p at 60 Hz, 1600 x 1200 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz, 1024 x 768 at 60 Hz | | Audio Output | 2 x BNC (linear, 600 ohms) | | Playback Resolution | 5 MP, 3 MP, 1920 x 1080p, UXGA, 1280 x 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF | | Synchronous Playback | 16 channels 4CIF | | Storage | 4 x SATA slots supporting 2 HDDs + 1 DVD-R/W, or 4 HDDs
Up to a 6 TB HDD per slot for a total of up to 24 TB
2 TB SATA HDD storage space included (pre-installed)
1 x eSATA interface supporting up to a 6 TB HDD | | Ethernet Interface | 1 x RJ-45 10/100/1000 Mbps self-adaptive | | Serial Interface | 1 x RS-232 (for parameters configuration, maintenance, transparent channel)
1 x RS-485 (reserved)
1 x RS-485 keyboard interface (for special keyboard control) | | USB Interface | 3 x USB 2.0 | | Alarm | 16 x inputs; 4 x outputs | | Power Supply | 100 to 240 VAC, 6.3 A, 50 to 60 Hz | | Power Consumption | < 40 W | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Operating Humidity | 10 to 90% | | Chassis | 19" rack-mounted 1.5 RU chassis | | Dimensions | 17.3 x 15.4 x 2.8" (44 x 39 x 7 cm) | | Weight | 17.6 lb (8 kg) (without any HDD or DVD-RW) | | | | Package Weight | 15.8 lb | | Box Dimensions (LxWxH) | 20.0 x 19.0 x 6.0" |
