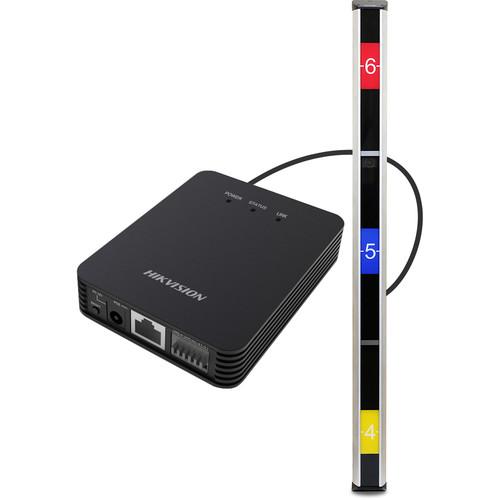

User Manual for Hikvision 2MP Covert Network Camera with Pole-Shaped Bracket Click to enlarge the picture
Contents of the user manual for the Hikvision 2MP Covert Network Camera with
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision 2MP Covert Network Camera with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The 2MP Covert Network Camera with Pole-Shaped Bracket from Hikvision utilizes a 1/2.7" progressive-scan CMOS sensor and a 3.7mm lens to capture video at a resolution up to 1920 x 1080 at 30 fps. It features true wide dynamic range up to 120 dB as well as 3D-DNR image enhancements. The camera compresses footage using H.264, MPEG4, and MJPEG formatting, maximizing your bandwidth and storage efficiency. It comes with a built-in microSD card slot (up to 128GB) for onboard storage. The base unit can connect to the lenses using a 26.2' cable. - 1/2.7" progressive scan CMOS
- Supports resolution up to 1920 x 1080 at 30 fps for real-time output
- Supports Power-over-Ethernet
- Built-in microSD card slot (up to 128GB)
UPC: 842571100914 In the Box Hikvision 2MP Covert Network Camera with Pole-Shaped Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 2MP Covert Network Camera with Pole-Shaped Bracket in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD6424FWD-20/E Specs | | | Image Sensor | 1/2.7" progressive scan CMOS | | Minimum Illumination | 0.01 lux at f/1.2 (AGC ON)
0.028 lux at f/2.0 (AGC ON) | | Shutter Time | 1 to 1/100,000 seconds | | Focal Length | 3.7mm at f/2.5 | | Angle of View | 78.5° | | Cable Length | 26.2' / 8 m | | Wide Dynamic Range | 120 dB | | Digital Noise Reduction | 3D-DNR | | | | Video | H.264 / MPEG4 / MJPEG | | Bit Rate | 32 kb/s to 16 Mb/s | | Audio | G.711 / G.722.1 / G.726 / MP2L2 | | Streaming | Triple streams | | | | Resolution | 1920 x 1080 maximum | | Frame Rate | 50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720)
60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720) | | Backlight Compensation | Yes, zone configurable | | Defog | Smart defog supported | | ROI | Supports up to 4 fixed areas in each stream | | Digital Noise Reduction | 3D-DNR supported | | Picture Overlay | Supports 128 x 128 size BMP with 24-bit depth image overlay, zone optional | | Day/Night | Electronic switching | | | | Storage | NAS (NFS, SMB / CIFS)
Edge recording | | Alarm Trigger | Line crossing detection, intrusion detection, defocus detection, scene change detection, motion detection, face detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict, storage exception | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Security | User authentication, watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask | | System Compatibility | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI | | | | Audio | Input: 1/8" / 3.5 mm 1-ch audio interface (mic in / line in)
Output: 1/8" / 3.5 mm 1-ch audio interface | | Communication | 1 x RJ45 10M/100M Ethernet port | | Alarm | 1 x Input
1 x Output | | Storage | microSD slot, supports up to 128 GB | | | | Operating Conditions | -22 to 140°F / -30 to 60°C | | Humidity | 95% or less (non-condensing) | | Power Supply | 12 VDC ±10%, PoE (802.3af) | | Power Consumption | 6.5 W (maximum) | | Dimensions | Main Unit: 3.07 x 4.13 x 1.26" / 78 x 105 x 32 mm
Lens: 1.57 x 1.02 x 0.98" / 37 x 26 x 25 mm
Bracket: 2.39 x 1.50 x 34.80" / 60.6 x 38.2 x 883.8 mm | | Weight | Main Unit: 7.4 oz / 210 g
Lens: 7.8 oz / 220 g (with 8 m cable)
Bracket: 32.9 oz / 934 g |
