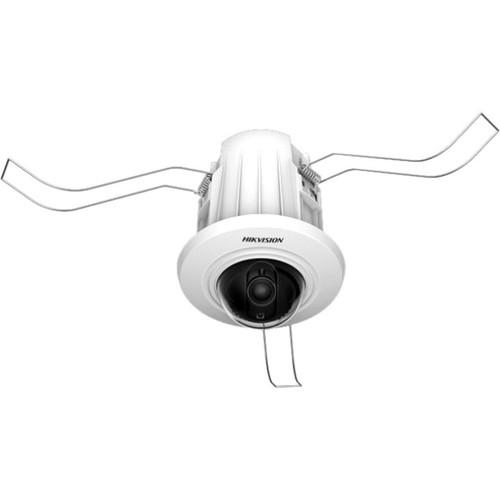

User Manual for Hikvision 2MP Day Night Dome Camera with 2.8mm Fixed Lens and Recessed Mount Click to enlarge the picture
Contents of the user manual for the Hikvision 2MP Day Night Dome Camera
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision 2MP Day Night Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Featuring a recessed mount, the 2MP Day/Night Dome Camera from Hikvision is an unobtrusive surveillance solution. The camera uses a 1/3" progressive-scan CMOS sensor for capturing video at up to HI2CD2E20F28 resolution, and it utilizes a 2.8mm fixed lens for coverage of a 106° field of view. You can also pan the camera 355° and tilt it 80° for a wide range of viewing options. Digital wide dynamic range, 3D noise reduction, and zone optional backlight compensation assist in capturing clear images in a variety of lighting conditions.
The camera uses an integrated microSD slot for edge recording and can support up to 64GB of storage. Footage is compressed using H.264 or MJPEG formats, maximizing storage and bandwidth usage. A RJ45 port enables the camera to connect to the network using Ethernet cables, and it also allows the camera to be powered using PoE technology. Built-in sensors provide alarm triggers, including line crossing, intrusion detection, motion detection, dynamic analysis, tampering alarm, network disconnect, IP address filtering, and storage exception. - HI2CD2E20F28 video resolution for high-quality images
- Adjustable saturation, brightness, and contrast
- 3D noise reduction enables capturing of clear images in low-light conditions
- Digital WDR adjusts exposure to maintain detail in ambient lighting
- Zone optional backlight compensation
- Pan and tilt adjustments for various viewing options
- Alarm triggers, including line crossing, intrusion detection, and network disconnect
- Password protection for a safe network
- Dual H.264 and MJPEG compression
- microSD slot supports up to 64GB for on-board storage
- Recessed mount for unobtrusive surveillance and easy installation
- ONVIF-compliance for a wide range of compatibility
UPC: 813908021356 In the Box Hikvision 2MP Day/Night Dome Camera with 2.8mm Fixed Lens and Recessed Mount Limited 3-Year Warranty Brochure PDF 857kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 2MP Day Night Dome Camera with 2.8mm Fixed Lens and Recessed Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2E20F Specs | | | Image Sensor | 1/3" progressive-scan CMOS sensor | | Maximum Image Resolution | HI2CD2E20F28 | | Minimum Illumination | 0.01 lux @ (F1.2, AGC on), 0 lux with IR | | Shutter Time | 1/3 to 1/100,000 sec | | Lens | 2.8mm | | Angle of View | 106° | | Lens Mount | M12 | | Day & Night | ICR | | Digital Noise Reduction | 3D DNR | | Wide Dynamic Range | Digital WDR | | Angle Adjustment | Pan: 0 to 355°
Tilt: 0 to 80° | | | | Video Compression | H.264 / MJPEG | | H.264 Profile | Baseline profile / main profile | | Bit Rate | 32 kb/s to 8 Mb/s | | Dual Streaming | Supported | | | | Frame Rate | 50 Hz: 1920 x 1080, 1280 x 960, 1280 x 720 @ 25 fps
60 Hz: 1920 x 1080, 1280 x 960, 1280 x 720 @ 30 fps | | Image Settings | Rotate mode, saturation, brightness, contrast adjustable by client software or web browser | | BLC | Supported (zone optional) | | ROI | Supported | | | | Storage | Local storage: Built-in microSD / SDHC / SDXC card slot, up to 64 GB
NAS (supports NFS, SMB / CIFS) | | Alarm Trigger | Line crossing, intrusion detection, motion detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict, storage exception | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | System Compatibility | ONVIF, PSIA, CGI, ISAPI | | Other Functions | One-key reset, flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, anonymous access | | | | Communication | 1 x RJ45 10/100M Ethernet | | | | Operating Conditions | 14 to 104°F (-10 to 40°C) | | Humidity | 95% or less (non-condensing) | | Power Supply | 12 VDC ± 10%, PoE (802.3af ) | | Power Consumption | 4.2 W maximum | | Dimensions | 36.9 x 47.8" (93.9 × 121.6 cm)
Drill Diameter: 3.0" (75.0 mm) | | Weight | 7.0 oz (200.0 g) | | | | Package Weight | 0.815 lb | | Box Dimensions (LxWxH) | 7.3 x 5.45 x 5.4" |
