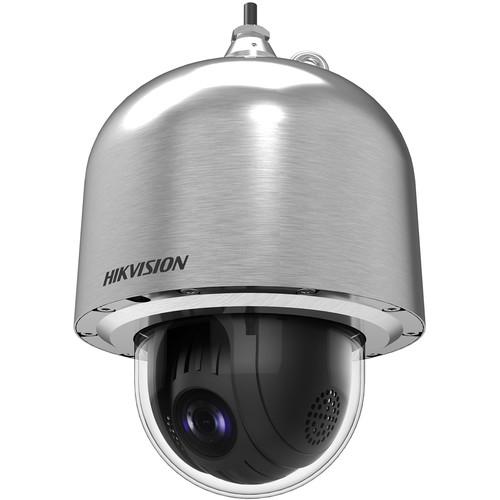

User Manual for Hikvision 2MP Explosion-Resistant Outdoor Network Dome Camera with 5.9-135.7mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision 2MP Explosion-Resistant Outdoor Network Dome
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision 2MP Explosion-Resistant Outdoor Network Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The 2MP Explosion-Resistant Outdoor Network Dome Camera with 5.9-135.7mm Lens from Hikvision captures high-quality color video in varied lighting conditions as low as 0.002 lux and black-and-white video down to 0.0002 lux. Embedded with 1/1.9" progressive scan CMOS sensor, it can record real-time 1920 x 1080 resolution. With 23x optical zoom and remote pan/tilt capabilities, it can provide coverage over a wide area.
The camera is rated IP68 for outdoor use in an explosion-resistant enclosure made of stainless steel. |
Upload User Manual
Have you got an user manual for the Hikvision 2MP Explosion-Resistant Outdoor Network Dome Camera with 5.9-135.7mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2DF6223-CXW Specs | | | Sensor | 2 MP 1/1.9" CMOS | | Focal Length | 5.9 to 135.7mm | | Maximum Aperture | f/1.5 - f/3.4 | | Zoom | Digital: 16x
Optical: 23x | | Lens Field of View | Horizontal: 3.0 to 59.8° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.002 Lux
B&W: 0.0002 Lux | | Shutter Speed | 1/30000 to 1 Seconds | | | | Streaming Resolution | 1920 x 1080 at 60 fps
1920 x 1080 at 50 fps | | Supported Video Compression | H.264, H.264+, MJPEG | | Multi-View Streaming | , 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Single | | Audio Formats | PCM | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | External Audio Output | 3.5 mm | | | | Security | Digest Authentication, HTTPS, IP Address Filtering, Password Protection | | Supported Protocols | Bonjour, DNS, DynDNS, FTP, HTTP, , ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Application Programming Interface (API) | Open-ended API, support ONVIF, PSIA, CGI and Genetec, support HIKVISION SDK | | Analytics | Intrusion, line crossing, audio exception, face, region entrance/exit detection | | Event Trigger | Yes | | Event Action | Recording, Alarm | | Data Streaming | Yes | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | Remote Pan: 360° at 540°/s
Remote Tilt: 90° (0 to 90°) at 400°/s | | Alarm I/O | 7 / 2 | | I/O Connections | 1 x RJ45 | | Certifications | ATEX, IECEx, as per Manufacturer | | Internal Storage | None | | External Storage Options | NAS | | Power Source | AC | | Power Consumption | 60 W | | Material of Construction | Stainless Steel | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP68 | | Dimensions |
