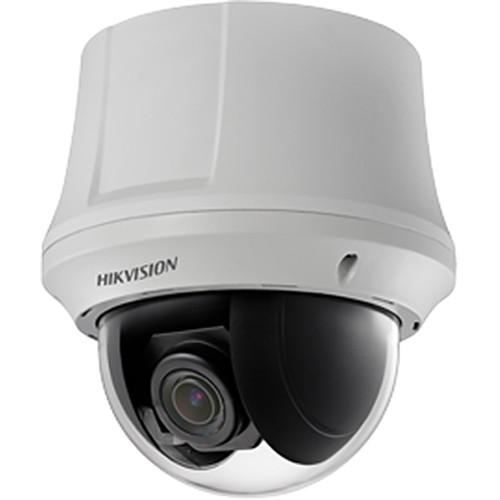

Product description The DS-2DE4220-AE3 2MP Day & Night Indoor PoE Network PTZ Dome Camera from Hikvision utilizes a 1/2.8" progressive scan CMOS sensor and 4.7 to 94mm varifocal lens to capture images at a resolution of 1920 x 1080. It supports H.264 and MJPEG compression with simultaneous dual streaming. The camera features motion detection, 3D-DNR (Digital Noise Reduction), D-WDR (Digital Wide Dynamic Range), and BLC (Back Light Compensation). - 2MP, 1/2.8" progressive scan CMOS sensor
- Full HD 1080p real-time resolution
- 20X Optical zoom, 16X digital zoom
- 3D intelligent positioning
- 3D-DNR (Digital Noise Reduction)
- DWDR (Digital Wide Dynamic Range)
- BLC (Back Light Compensation)
- Privacy mask, alarm input/output
UPC: 813908021363 In the Box Hikvision 2MP Indoor PoE Network PTZ Dome Camera with 4.7- 94mm Lens Limited 3-Year Warranty Brochure PDF 963.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 2MP Indoor PoE Network PTZ Dome Camera with 4.7- 94mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2DE4220-AE3 Specs | | | Image Sensor | 1/2.8" Progressive scan CMOS | | Effective Pixels (H x V) | 1920 x 1080 | | Minimum Illumination | Color: 0.05 lux @ (f/1.6, AGC On)
B&W: 0.01 lux @ (f/1.6, AGC On) | | White Balance | Auto / Manual / ATW / Indoor / Outdoor / Daylight lamp / Sodium lamp | | AGC | Auto / Manual | | S / N Ratio | ≥ 52 dB | | Shutter Speed | 1/1 to 1/10,000 sec | | Day & Night | IR cut filter | | Digital Zoom | 16x | | Focus Modes | Auto / Semiautomatic / Manual | | Privacy Masking | 2 privacy masks programmable | | | | Focal Length | 4.7 to 94mm, 20x optical zoom | | Zoom Speed | Approximately 3 sec (optical wide-tele) | | Angle of View | 58.3 / 3.2° (Wide/Tele) | | Minimum Working Distance | 10/1000 mm (Wide/Tele) | | Aperture Range | f/1.6 to f/3.5 | | | | Range | Pan: 360° endless
Tilt: -2 to 90° (auto flip) | | Speed | Pan Manual Speed: 0.1 to 160°/sec
Pan preset speed: 160°/s
Tilt Manual Speed: 0.1 to 120°/sec
Tilt preset speed: 120°/sec | | Zoom | Proportional: Rotation speed can be adjusted automatically according to zoom multiples | | Number of Presets | 256 | | Patrol | 8 Patrols, up to 32 presets per patrol | | Action Type | Pattern/Pan scan/Tilt scan/Frame scan/Panorama scan/Random scan | | PTZ Position Display | On / Off | | | | Alarm Input / Output | 1 Input 0-5 VDC / 1 relay output, alarm response actions configurable | | Audio Input / Output | 1 Mic/Line in, 2 to 2.4 V (p-p)
Output Impedance: 1 kOhm, ±10% / 1 output, Line level
Impedance: 600 Ohms | | | | Ethernet | 10Base-T / 100Base-TX, RJ45 connector | | Maximum Image Resolution | 1920 x 1080 | | Frame Rate | 50 Hz: 25 fps (1920 x 1080), 25 fps (1280 x 720)
60 Hz: 30 fps (1920 x 1080), 30 fps (1280 x 720) | | Image Compression | H.264 / MJPEG | | ROI | Support 2 areas with adjustable levels | | Audio Compression | G.711u /G.711a /G.726 /MP2L2 | | Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,IGMP, ICMP, DHCP, PPPoE | | Live View | Up to 6 | | Storage | Built-in microSD card slot, up to 64 GB, support edge recording Card not included. | | User/Host Level | Up to 32 users, 3 Levels: Administrator, operator, user | | Security | User authentication (ID and PW), Host authentication (MAC address), IP address filtering | | | | Application Programming Interface | Open-ended API, support Onvif, PSIA, and CGI | | Web Browser | IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+ | | | | Power | 24 VAC / PoE (802.3af), 12 W | | Working Temperature | 14 to 122°F (-10 to 50°C) | | Humidity | 90% or less | | Protection Level | TVS 4,000 V lightning protection, surge protection and voltage transient protection | | Dimensions | Ceiling: 6.5 x 7.07" (165 x 179.5 mm)
In-Ceiling: 6.5 x 6.6 (165.0 x 168.0 mm) | | Weight | 4.4 lb (1.9 kg) | | | | Package Weight | 6.75 lb | | Box Dimensions (LxWxH) | 15.3 x 8.8 x 8.7" |
