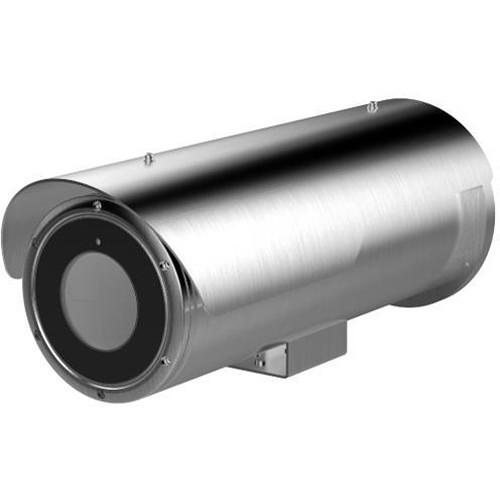

User Manual for Hikvision 2MP Outdoor Anti-Corrosion Network Bullet Camera with Night Vision and 3.8-16mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the Hikvision 2MP Outdoor Anti-Corrosion Network Bullet
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision 2MP Outdoor Anti-Corrosion Network Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The 2MP Outdoor Anti-Corrosion Network Bullet Camera from Hikvision features a 1/1.8" progressive scan CMOS sensor and 3.8-16mm varifocal lens for capturing videos at a maximum resolution of 1920 x 1080. The camera's housing is constructed from 316L stainless steel for protection against corrosion. The camera also complies with WF2, C5-M, and NEMA-4X anti-corrosion and IP67 weather-resistant standards. This day/night camera provides 24-hour surveillance thanks to a removable IR cut filter and built-in IR LEDs with a range of up to 164'. - Up to 1920 x 1080 at 60 fps resolution
- Ultra Low-Light technology
- 120 dB Wide Dynamic Range
- IP67-rated weather-resistant housing
- Accepts microSD/SDHC/SDXC cards up to 128GB
- Smart Features
- Behavior analysis, line crossing detection, intrusion detection, region entrance detection, unattended baggage, object removal, exception detection
In the Box Hikvision 2MP Outdoor Anti-Corrosion Network Bullet Camera with Night Vision and 3.8-16mm Varifocal Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 2MP Outdoor Anti-Corrosion Network Bullet Camera with Night Vision and 3.8-16mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD6626B/E-HIR5 Specs | | | Image Sensor | 1/1.8" progressive scan CMOS | | Minimum Illumination | Color: 0.002 lux at (f/1.2, AGC ON)
B&W: 0.0002 lux at (f/1.2, AGC ON) | | Shutter Speed | 1 to 1/100,000 sec | | Slow Shutter | Support | | Lens Mount | CS | | Lens | 3.8-16mm f/1.5
HFOV: 103.1 to 28° | | Day/Night | IR cut filter | | Digital Noise Reduction | 3D-DNR | | WDR Technology | 120 dB | | | | Video Compression | H.264/MJPEG/MPEG4 | | Encoding | H.264 Encoding Level: Baseline Profile/main profile/high profile | | Video Bit Rate | 32 kbps to 16 Mbps | | Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM | | Audio Bit Rate | 64 kbps (G.711) / 16 kbps (G.722.1) / 16 kbps (G.726) / 32 to 128 kbps (MP2L2) | | | | Maximum Resolution | 1920 x 1080 | | Frame Rates | Main Stream
50 Hz: 50 fps (1920 x 1080, 1280 x 960, 1280 x 720)
60 Hz: 60 fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub Stream
PAL: 50 Hz: 25 fps (352 x 288, 640 x 480, 704 x 576 ), NTSC: 25 fps (352 x 240, 640 x 480, 704 x 480)
PAL: 60 Hz: 30 fps (352 x 288, 640 x 480, 704 x 576), NTSC: 25 fps (352 x 240, 640 x 480, 704 x 480) | | Streams | Third Stream
Independent with main stream and sub stream
Up to 50 Hz: 25 fps (1920 x 1080)
60 Hz: 30 fps (1920 x 1080) | | Image Settings | Rotate mode, saturation, brightness, contrast, and sharpness are adjustable by client software or web browser | | Backlight Compensation | Yes, zone optional | | Day/Night Switching | Auto, schedule, alarm trigger | | Picture Overlay | Logo picture can be overlaid on video with 128 × 128 24-bit bmp format
Supports 24-bit BMP image overlay, zone optional | | ROI | Up to 4 fixed areas in each stream or dynamic tracking | | | | Network Storage | microSD/SDHC/SDXC card (up to 128 GB) local storage
NAS (NFS, SMB/CIFS) | | Alarm Trigger | Tampering alarm, motion detection, network disconnect, IP address conflict, storage full, storage error | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Standards | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI | | Function | One-key recovery, flash-prevention, three streams, heartbeat, mirror, password protection, video cover, watermark, IP address filtering, anonymous access | | | | Audio Interface | 1-channel, 3.5 mm audio in (mic in / line in) / output external interface | | Communication | 1 x 10M/100M Ethernet port, 1 x RS-485 port, 1 x RS-232 interface | | Housing | 1 x anti-corrosion inlet protected by a metal hose | | Video Output | 1 V p-p composite output (75 Ohms/BNC) | | Alarms | 1 x input/1 x output (up to 24 VDC/1 A or 110 VAC/500 mA) | | | | Operating Conditions | -40 to 140°F (-40 to 60°C)
Humidity: 95% or less (non-condensing) | | Power Supply | 24 VAC | | Construction Material | 316L stainless steel | | Ingress protection | IP67 | | Corrosion | WF2, C5-M, NEMA-4X | | IR Range | 164' (50 m) | | Power Consumption | 100 W maximum | | System Requirements | Operating System: Microsoft Windows XP SP1 and above version
CPU: 2.0 GHz or higher
RAM: 1 GB or higher
Display: 1024 × 768 resolution or higher
Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above version, Mozilla Firefox 5.0 and above version and Google Chrome 18 and above version | | Dimensions | 18.3 x 7.5 x 7.1" (465 x 189.7 x 180 mm) | | Weight | 22.3 lb (10.1 kg) |
