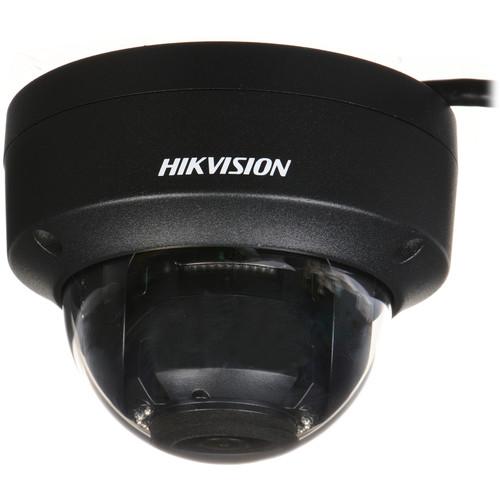

User Manual for Hikvision 2MP Outdoor Network Dome Camera with 2.8mm Fixed Lens Click to enlarge the picture
Contents of the user manual for the Hikvision 2MP Outdoor Network Dome Camera
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision 2MP Outdoor Network Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The black 2MP Outdoor Network Dome Camera from Hikvision features a progressive scan CMOS sensor and 2.8mm fixed lens to capture images at a resolution of up to 2MP at 30 fps. With a built-in IR cut filter and integrated IR LEDs, this camera can capture images in complete darkness at a distance up to 98'. The camera supports H.264 and MJPEG compression formats with simultaneous dual streaming. There are inputs and outputs for audio components as well as an alarm system, and an RJ45 port provides Ethernet connectivity. A Wide Dynamic Range of up to 120 dB allows the camera to capture images under varied lighting conditions, including backlight and low light. The camera features a built-in microSD/SDHC/SDXC card slot that can support up to 128GB for on-board storage, and it is ONVIF-compliant for use in a large range of locations. With an IP66- and IK10-rated vandal-resistant housing, this camera is suitable for outdoor applications. -
- Up to 2MP high resolution
- Full HD 1080p video
- Dual video streams
- 2.8mm fixed lens options
- 120 dB WDR (Wide Dynamic Range)
- 3D DNR (Digital Noise Reduction)
- Smart features
- PoE (IEEE 802.3af)
- IR range 98.4’
- IP66 and IK10 Protection
- Audio/Alarm Input/Output
- microSD slot with support for up to 128GB
UPC: 813908027518 In the Box Hikvision 2MP Outdoor Network Dome Camera with 2.8mm Fixed Lens (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 2MP Outdoor Network Dome Camera with 2.8mm Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2122FWD-ISB-2.8MM Specs | | | Image Sensor | 1/2.8" progressive scan CMOS | | Minimum Illumination | Color: 0.028 lux at f/2.0, AGC on
B&W: 0 lux with IR | | Shutter Speed | 1/3 to 1/10,000 sec | | Lens | 2.8mm | | Angle of View | 106° | | Lens Mount | M12 | | Day/Night | IR cut filter with auto switch | | Digital Noise Reduction | 3D-DNR | | Wide Dynamic Range | 120 dB | | Pan | 0 to 355° | | Tilt | 0 to 75° | | Rotation | 0 to 355° | | | | Video Compression | H.264+/H.264/MJPEG | | H.264 Profile | Main | | Video Bit Rate | 32 kb/s to 16 Mb/s | | Dual Stream | Yes | | Audio | G.711/G.722.1/G.726/MP2L2, 64 kb/s (G.711)/16 kb/s (G.722.1)/16 kb/s (G.726)/32 to 128 kb/s (MP2L2) | | | | Maximum Resolution | 1920 x 1080 | | Frame Rate | 30 fps 1920 x 1080, 1280 x 960, 1280 x 720 | | Image Settings | Compression, color, saturation, brightness, contrast, sharpness, rotate mode, privacy mask | | Backlight Compensation | Zone configured | | Region of Interest | Yes | | | | Smart Features | Line crossing detection, intrusion detection | | | | Network Storage | NAS (supports NFS, SMB/CIFS), ANR | | Alarm Triggers | Motion detection, line crossing detection, intrusion detection, tamper alarm, network disconnect, IP address conflict, storage exception | | Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UUPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Security | Three level user authentication, password authorization, HTTPS and SSH certificate, IEEE 802.1X, basic and digest authentication, watermark, IP address filtering, log-in lockout | | Standards | ONVIF (profile S, profile G), PSIA, CGI, ISAP | | | | Communication | 1 RJ45 10M/100M Ethernet port | | On-board Storage | Built-in microSD/SDHC/SDXC slot, up to 128 GB | | Alarm | 1 x I/O | | Audio | 1 x I/O | | | | Operating Conditions | -22 to 140°F (-30 to 60°C) , humidity 95% or less (non-condensing) | | Power | 12 VDC ±10%, PoE (802.3af) | | Power Consumption | Maximum 5 W, maximum 9 W with pan and tilt | | IR Range | 98.4' (30 m) | | Ingress protection | IP66 | | Impact Protection | IK10 | | Dimensions | 4.4 × 3.2" (111 x 82 mm) | | Weight | 17.6 oz (500 g) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 5.4 x 5.4 x 4.4" |
