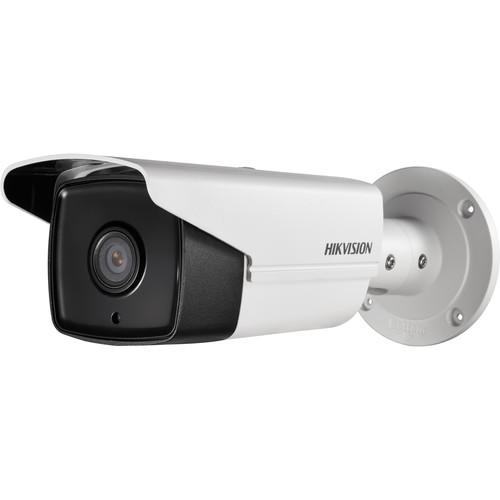

User Manual for Hikvision 2MP Outdoor Network License Plate Recognition Bullet Camera with 2.8-12mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision 2MP Outdoor Network License Plate
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision 2MP Outdoor Network License Plate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The 2MP Outdoor Network License Plate Recognition Bullet Camera with 2.8-12mm Lens & Night Vision from Hikvision has a 1/1.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 60 fps. This LPR camera is designed to capture images of vehicles moving at speeds up to 75 mph across up to four lanes of traffic, and supports the capture and recognition of vehicles both approaching and leaving. It's equipped with IR LEDS to deliver a night vision range up to 164'. The 2.8-12mm motorized varifocal lens has a 92-32° horizontal field of view. Two-way audio is supported thanks to an audio input and output. Integrated PoE technology allows data and power to be transmitted over one cable. An onboard memory slot supports microSD cards up to 128GB. microSD cards are available separately.
This device is ONVIF-compliant for Profiles S and G, making it compatible with a wide range of surveillance products. Additionally, this device is housed in an IP67-rated enclosure that is suitable for outdoor use. - Supports capture and recognition of vehicles both approaching and leaving
- Capture rate up to 99%, and recognition rate up to 95%
- DarkFighter technology to capture images in low-light conditions
- Uses PoE and 12 VDC power
- H.264+, H.264, and MJPEG compression with triple streaming
- IR cut filter enables true day and night functionality
- Image settings include rotate mode, saturation, brightness, contrast, and sharpness
- 120 dB wide dynamic range
- Electronic image stabilization (EIS)
- Region of Interest supports four fixed regions for each stream, and dynamic tracking
- Up to 2048 whitelist and blacklist records
- Alarm triggers include road traffic, motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, and HDD error
- General functions include one-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filtering, and mirror
- 32 kb/s to 16 Mb/s video bit rate
- Environment noise filtering
- Up to 20 channels of simultaneous live view
- Target cropping supported
- IP67-rated enclosure that is suitable for outdoor use
- Offers lightning protection, surge protection, voltage transient protection, and anti-static protection
UPC: 842571106930 In the Box Hikvision 2MP Outdoor Network License Plate Recognition Bullet Camera with 2.8-12mm Lens & Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 2MP Outdoor Network License Plate Recognition Bullet Camera with 2.8-12mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD4A26FWD-IZHS/P Specs | | | Sensor | 2 MP 1/1.8" CMOS | | Focal Length | 2.8 to 12mm | | Maximum Aperture | f/1.4 | | Zoom | Optical: 4.3x | | Lens Field of View | Horizontal: 92 to 32° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.0027 Lux
B&W: 0 Lux | | Shutter Speed | 1/100000 to 1 Seconds | | | | Streaming Resolution | 1920 x 1080 at 25/30/50/60 fps
1280 x 960 at 25/30/50/60 fps
1280 x 720 at 25/30/50/60 fps
704 x 576 at 25/30 fps
704 x 480 at 25/30 fps
640 x 480 at 25/30 fps
352 x 288 at 25/30 fps
352 x 240 at 25/30 fps | | Supported Video Compression | H.264, H.264+, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711, G.722.1, G.726, MP2 | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering, Lockout, Password Protection, Watermark | | Supported Protocols | DDNS, DHCP, DNS, FTP, HTTP, , ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & G, ISAPI | | Analytics | Motion detection, road traffic | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power
1 x BNC | | IR Illuminators | 850 nm | | IR Range | 164' / 49.99 m | | Certifications | CSA, UL, as per Manufacturer | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3at (30 W) 12 VDC ±10%
Terminal block PoE, 802.3at, class 4 | | Power Consumption | 14.5 W (With Heater)
19.2 W (With Heater) 12 VDC: 14.5 W Max, 1.3 A
PoE: 19.2 W Max, 0.3-0.5 A | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP67 | | Dimensions | H: 3.9 x W: 4.1 x L: 12.3" / H: 99.1 x W: 104.1 x L: 312.4 mm | | Weight | 4.6 lb / 2.1 kg | | | | Package Weight | 4.95 lb | | Box Dimensions (LxWxH) | 15.2 x 6.3 x 6.2" |
