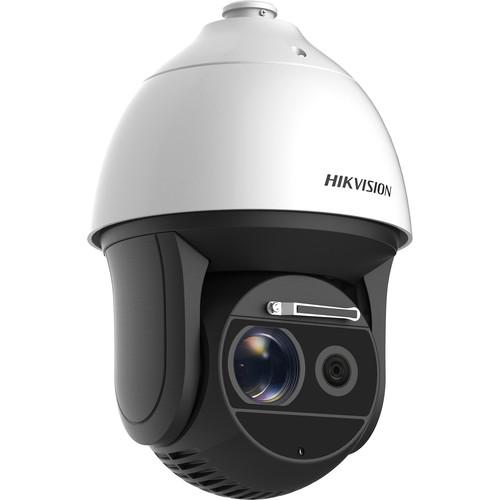

User Manual for Hikvision 2MP Outdoor Network PTZ Dome Camera with 6.6-330mm Lens, Night vision & Wiper Click to enlarge the picture
Contents of the user manual for the Hikvision 2MP Outdoor Network PTZ Dome
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision 2MP Outdoor Network PTZ Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The 2MP Outdoor Network PTZ Dome Camera from Hikvision features a 1/2.8" progressive scan CMOS sensor and a 6.6-330mm focal lens to capture video at a maximum resolution of 1920 x 1080. The lens offers 50x optical zoom for capturing detail at long distances. An IR cut filter allows the camera to produce clear images in complete darkness from up to 1640' away.
Enclosed in an IP66-rated housing with a wiper, the system can be used for both indoor and outdoor applications. The camera also features a wide range of smart functions such as intrusion detection, line crossing detection, audio exception, face detection, and region entrance/exit detection. - 3D digital noise reduction
- Backlight and highlight compensation
- Optical image stabilization
- Supports H.265+/H.265 video compression
- Suitable for surveillance of rivers, forests, roads, railways, airports, ports, squares, parks, scenic spots, stations, and large venues
UPC: 842571110074 In the Box Hikvision 2MP Outdoor Network PTZ Dome Camera with 6.6-330mm Lens, Night vision & Wiper Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 2MP Outdoor Network PTZ Dome Camera with 6.6-330mm Lens, Night vision & Wiper in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2DF8250I5X-AELW Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Focal Length | 6.6 to 330mm | | Maximum Aperture | f/1.8 - f/5.5 | | Zoom | Digital: 16x
Optical: 50x | | Lens Field of View | Horizontal: 41.3 to 1.1°
Vertical: 23.6 to 0.6°
Diagonal: 47.4 to 1.3° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.05 Lux
B&W: 0 Lux | | Shutter Speed | 1/30000 to 1 Seconds | | | | Streaming Resolution | 1920 x 1080 at 60 fps
1920 x 1080 at 50 fps | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | , 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | PCM | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | External Audio Output | 3.5 mm | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, Password Protection | | Supported Protocols | Bonjour, DHCP, DNS, DynDNS, FTP, HTTP, , IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, TCP | | | | Application Programming Interface (API) | ONVIF, CGI, HIKVISION SDK, Third-Party | | Analytics | Intrusion, Line Crossing, Region Entrance, Region Exiting, Face, Audio Exception Detection | | Event Trigger | Yes | | Event Action | Recording, Alarm | | Data Streaming | Yes | | | | Recording Media | microSD (Up to 256 GB) | | Pan/Tilt | Remote Pan: 360° at 280°/s
Remote Tilt: 110° (-20 to 90°) at 250°/s | | Alarm I/O | 7 / 2 | | I/O Connections | 1 x RJ45
1 x BNC
1 x 9-Pin Serial (RS-485) | | IR Range | 1640.42' / 500 m | | Internal Storage | None | | External Storage Options | NAS | | Power Source | AC | | Power Consumption | 60 W | | Material of Construction | Aluminum | | Operating Temperature | -40 to 149°F / -40 to 65°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | Dimensions |
