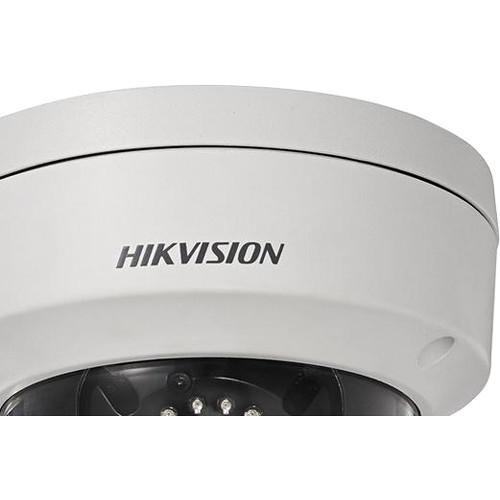

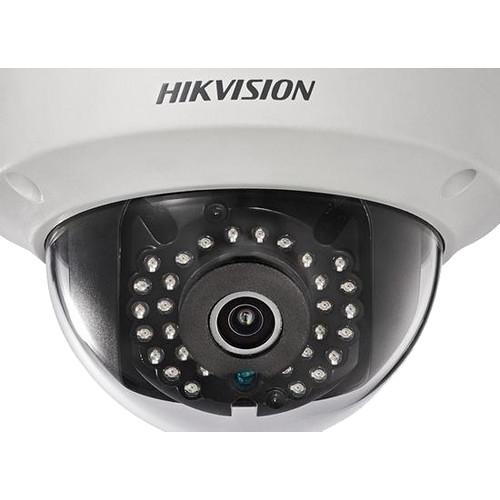

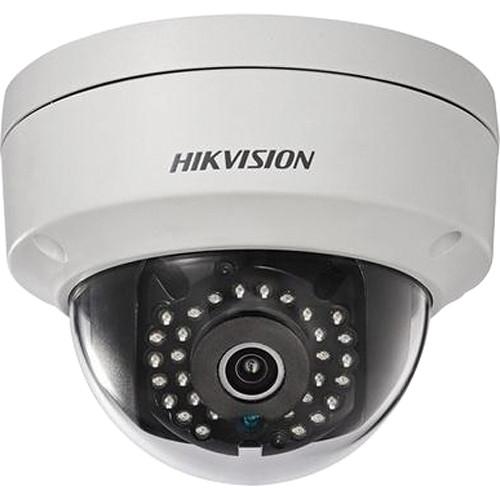

User Manual for Hikvision 2MP Outdoor Network Vandal-Resistant Dome Camera with 2.8mm Fixed Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision 2MP Outdoor Network Vandal-Resistant Dome
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
 |
User manual for the Hikvision 2MP Outdoor Network Vandal-Resistant Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The 2MP Outdoor Network Dome Camera from Hikvision features a progressive scan CMOS sensor and 2.8mm fixed lens to capture images at a resolution of up to 2MP at 30 fps. With a built-in IR cut filter and integrated IR LEDs, this camera can capture images in complete darkness at a distance up to 98'. The camera supports H.264 and MJPEG compression formats with simultaneous dual streaming. There are inputs and outputs for audio components as well as an alarm system, and an RJ45 port provides Ethernet connectivity. A Wide Dynamic Range of up to 120 dB allows the camera to capture images under varied lighting conditions, including backlight and low light. The camera features a built-in microSD/SDHC/SDXC card slot that can support up to 128GB for on-board storage, and it is ONVIF-compliant for use in a large range of locations. With an IP66 and IK10-rated vandal-resistant housing, this camera is suitable for outdoor applications. UPC: 813908023466 In the Box Hikvision 2MP Outdoor Network Vandal-Resistant Dome Camera with 2.8mm Fixed Lens & Night Vision Limited 3-Year Warranty Brochure PDF 243kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 2MP Outdoor Network Vandal-Resistant Dome Camera with 2.8mm Fixed Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2122FWD-IS-2.8MM Specs | | | Sensor | 1/2.8" progressive scan CMOS | | Minimum Illumination | Color: 0.028 lux at f/2.0
0 lux with IR | | Shutter Speed | 1/100,000 to 1/3 sec | | Lens | 2.8mm at f/2.0 | | Lens Mount | M12 | | Day/Night | IR cut filter with auto switch | | DNR | 3D-DNR | | Wide Dynamic Range | 120 dB | | | | Video | H.264/MJPEG / H.264+ | | H.264 Profile | Main profile | | Video Bit Rate | 32 kbps to 16 Mbps | | Audio Compression | G.711/G.722.1/G.726/MP2L2 | | Streams | Dual streams | | | | Maximum Resolution | 1920 x 1080 | | Frame Rate | 50Hz: 25 fps (1920 × 1080), 25 fps (1280 × 960), 25 fps (1280 × 720)
60Hz: 30 fps (1920 × 1080), 30 fps (1280 × 960), 30 fps (1280 × 720) | | BLC | Zone configurable | | | | Network Storage | NAS (supports NFS, SMB/CIFS), ANR | | Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Security | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask | | Standard | ONVIF (Profile S, G), PSIA, CGI, ISAPI | | | | Communication | 1 x RJ45 10/100M Ethernet port | | On-board Storage | Built-in microSD/SDHC/SDXC slot; up to 128 GB (card not included) | | Alarm | 1 x I/O | | Audio | 1 x I/O | | Reset | Yes | | | | IR Range | 98.4' / 30 m | | Protection | IP66; IK10 | | Power Supply | 12 VDC ±10%, PoE (802.3af) | | Power Consumption | Maximum 5 W | | Operating Conditions | Temperature: -22 to 140°F / -30 to 60°C
Humidity: 95% or less (non-condensing) | | Dimensions | 4.4 x 3.2" / 11.1 x 8.2 cm | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 1.885 lb | | Box Dimensions (LxWxH) | 5.45 x 5.35 x 4.35" |
