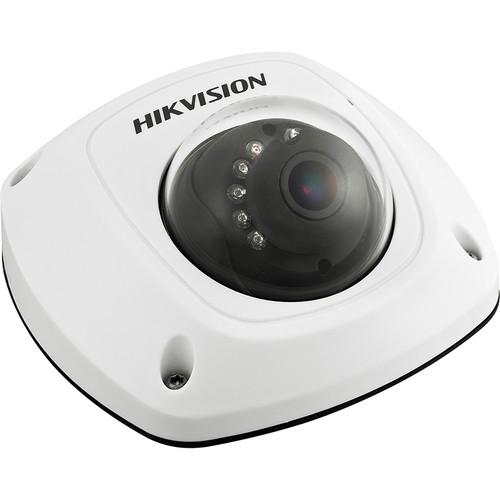

User Manual for Hikvision 2MP Outdoor Vandal-Resistant Network Dome Camera with 2.8mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision 2MP Outdoor Vandal-Resistant Network Dome
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision 2MP Outdoor Vandal-Resistant Network Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The 2MP Outdoor Vandal-Resistant Network Dome Camera from Hikvision features a 1/3" progressive scan CMOS sensor and 2.8mm fixed lens to capture images at a resolution of up to 2MP at 30 fps. The camera supports H.264 and MJPEG compression formats with dual streaming. There are inputs and outputs for audio components as well as alarm components, and an RJ45 port provides Ethernet connectivity. A Wide Dynamic Range of up to 120 dB allows the camera to capture images under varied lighting conditions. It is ONVIF-compliant for use in a large range of locations. With its IP66- and IK08-rated housing, this camera is suitable for outdoor applications. - 3D digital noise reduction
- 120 dB wide dynamic range
- Built-in audio input, audio output, alarm I/O
UPC: 813908023497 In the Box Hikvision 2MP Outdoor Vandal-Resistant Network Dome Camera with 2.8mm Lens & Night Vision (White) Limited 3-Year Warranty Brochure PDF 128.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 2MP Outdoor Vandal-Resistant Network Dome Camera with 2.8mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2522FWD-IS-2.8MM Specs | | | Image Sensor | 1/3" progressive scan CMOS | | Minimum Illumination | 0.028 lux @ (f/2.0, AGC on)
0 lux with IR | | Shutter Time | 1/3 to 1/10,000s | | Lens | 2.8mm @ f/2.0 | | Lens Mount | M12 | | Day & Night | IR cut filter with auto switch | | Wide Dynamic Range | 120 dB | | Adjustment | Angle:
Pan: -30 to 30°
Tilt: 0 to 75°
Rotation: 0 to 360° | | Noise Reduction | 3D-DNR | | | | Video Compression | H.264 / MJPEG | | H.264 Profile | Main profile | | Video Bit Rate | 256 kbps to 16 Mbps | | Audio Compression | G.711 / G.722.1 / G.726 / MP2L2 | | Audio Bit Rate | 64 kbps (G.711) / 16 kbps (G.722.1) / 16 kbps (G.726) / 32 to 128 kbps (MP2L2) | | Dual Stream | Yes | | | | Maximum Image Resolution | 1920 x 1080 | | Frame Rate | 30 fps: 1920 × 1080, 1280 × 960, 1280 × 720 | | Image Settings | Rotate mode, saturation, brightness, and contrast adjustable by client software or web browser | | Back Light Compensation | Yes, support zone configurable | | ROI | Yes | | | | Network Storage | microSD/SDHC/SDXC up to 128 GB, NAS (Support NFS, SMB/CIFS) | | Alarm Trigger | Line crossing, intrusion detection, dynamic analysis, motion detection, tampering alarm, network disconnect, IP address conflict, storage exception | | Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Standard | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI | | | | Communication | 1 RJ45 10 m / 100 m Ethernet port | | On-board Storage | Built-in microSD/SDHC/SDXC card slot, up to 128 GB | | Alarm | 1 x alarm input/output | | Audio Input | 1 channel, 2.0 to 2.4 V p-p, 1 kOhm | | Audio Output | 1 channel, line level, 600 Ohms | | Reset | Yes | | | | Humidity | 95% or less (non-condensing) | | Power Supply | 12 VDC ± 10%, PoE (802.3af) | | Power Consumption | Maximum 5 W | | IR Range | 32.8' (10 m) approximately | | Ingress protection | IP66 | | Impact Protection | IK08 | | Operating Conditions | -22 to 140°F (-30 to 60°C)
Humidity 95% or less (non-condensing) | | Dimensions | 3.9 x 3.8 x 2.1" (99.3 x 96.7 x 52.8 mm) | | Weight | 21 oz (600 g) | | | | Package Weight | 1.52 lb | | Box Dimensions (LxWxH) | 9.95 x 6.4 x 3.85" |
