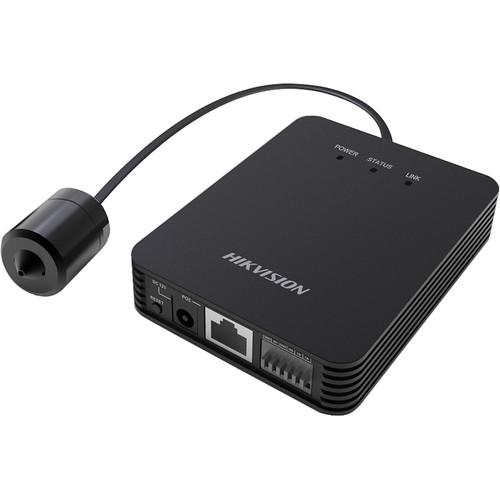

User Manual for Hikvision 2MP Separated Network Camera with 3.7mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision 2MP Separated Network Camera with
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision 2MP Separated Network Camera with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The 2MP Separated Network Camera from Hikvision is a covert camera for ATM surveillance and features a 1/2.7'' progressive scan CMOS sensor to capture images at a resolution up to 1920 x 1080 at 30 fps. The camera compresses footage using H.264 and M-JPEG formatting, maximizing your bandwidth and storage efficiency. Additionally, video can be streamed in up to three individual streams to further conserve bandwidth usage. A built-in microSD / SDHC / SDXC card slot supports up to 128GB of on-site recording or the camera can record remotely to a dedicated NAS. The network is secured with a number of safety features, including password protection, watermarking, IP address filtering, and anonymous access. -
- 2MP resolution
- True WDR of up to 120 dB for capturing images under varied light conditions
- Rotate mode makes the camera suitable for corridor areas
- Real-time output
- Supports highlight compensation and defogging
- Can be powered over PoE
UPC: 813908025903 In the Box Hikvision 2MP Separated Network Camera with 3.7mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 2MP Separated Network Camera with 3.7mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD6424FWD-10 Specs | | | Image Sensor | 1/2.7" progressive scan CMOS | | Minimum Illumination | 0.01 lux @ f/1.2 (AGC On), 0 lux with IR
0.028 lux @ f/2.0 (AGC On), 0 lux with IR | | Shutter Speed | 1 to 1/100,000 seconds | | Slow Shutter | Supported | | Lens | 3.7mm @ f/2.5 | | Angle of View | 65° | | Wide Dynamic Range | 120 dB | | Digital Noise Reduction | 3D-DNR | | Lens Mount | M12 | | Cable Length | 26.2' / 8 m | | | | Video | H.264 / MJPEG | | Type | H.264 Type: Baseline Profile / Main Profile / High Profile | | Video Bit Rate | 32 kb/s to 16 Mb/s | | Audio | G.711 / G.722.1 / G.726 / MP2L2 | | Audio Bit Rate | 64 kb/s (G.711) / 16 kb/s (G.722.1) / 16 kb/s (G.726) / 32 to 160 kb/s (MP2L2) | | | | Maximum Resolution | 1920 x 1080 | | Frame Rate | 50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720)
60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720) | | Stream Type | Third stream (independent with main stream):
50 Hz: 10 fps (1280 x 960)
60 Hz: 10 fps (1280 x 960) | | Image Settings | Rotate mode (first channel), saturation, brightness, contrast, sharpness, and gray scale (adjustable) | | Backlight Compensation | Yes | | HLC | Supported | | Defog | Supported | | ROI | Up to 4 fixed areas in each stream | | Image Overlay | Supports 128 x 128 size BMP with 24-bit depth image overlay, zone optional | | Day/Night | Auto / timing / alarm trigger | | | | Storage | microSD/SDHC/SDXC card, up to 128 GB
NAS (NFS, SMB / CIFS)
Edge recording | | Alarm Trigger | Motion detection, face detection, dynamic analysis, tampering alarm, network disconnect, IP address conflicts, storage full, storage error, intrusion detection, line crossing detection, defocus detection, audio exception detection, scene change detection | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Security | Reset, flickerless, multi-stream, heartbeat, rotate, password protection, video masking, watermark, anonymous login, IP address filtering | | System Compatibility | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI | | | | Audio | 1 x 1/8" / 3.5 mm audio interface (mic in / line in) or 1/8" / 3.5 mm audio out | | Communication | 1 x RJ45 10M/100M Ethernet port | | Alarm | 1 x Input
1 x Output | | | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Humidity (Non-Condensing) | 95% or less | | Power Supply | 12 VDC ±10%, PoE (802.3af) | | Maximum Power Consumption | 6.5 W | | Dimensions | 3.1 x 4.1 x 1.3" / 7.8 x 10.5 x 3.2 cm | | Weight | Main Body: 7.4 oz / 210.0 g
Lens: 8.2 oz / 233 g | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 10.1 x 6.6 x 5.2" |
