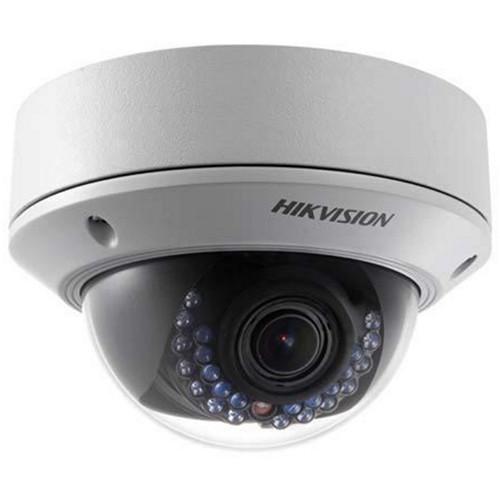

User Manual for Hikvision 2MP Vandal-Resistant Outdoor Network Dome Camera with 2.8-12mm Varifocal Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision 2MP Vandal-Resistant Outdoor Network Dome
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision 2MP Vandal-Resistant Outdoor Network Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The black 2MP Vandal-Resistant Outdoor Network Dome Camera from Hikvision utilizes a 1/2.8" progressive scan CMOS sensor and a 2.8-12mm motorized lens to capture images at a resolution of 1920 x 1080. It supports H.264, MJPEG, and H.264+ compression with simultaneous dual streaming. The camera features motion detection, WDR (Wide Dynamic Range), 3D-DNR (Digital Noise Reduction), and BLC (Back Light Compensation). It comes with an IP66-rated housing that provides protection from ingress of dust and moisture. It is also rated IK10 to prevent vandalism. - 2MP, 1/2.8" progressive scan CMOS sensor
- Full HD 1080p video output
- WDR 120 dB (Wide Dynamic Range)
- 3D-DNR (Digital Noise Reduction)
- BLC (Back Light Compensation)
- Up to 100' (30m) IR night vision range
- Built-in microSD/SDHC/SDXC card slot, up to 128GB (card not included)
- 12VDC ±10% or PoE (802.3af)
UPC: 813908028256 In the Box Hikvision 2MP Vandal-Resistant Outdoor Network Dome Camera with 2.8-12mm Varifocal Lens & Night Vision (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 2MP Vandal-Resistant Outdoor Network Dome Camera with 2.8-12mm Varifocal Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2722FWD-IZSB Specs | | | Image Sensor | 1/2.8" progressive scan CMOS | | Signal System | NTSC/PAL | | Minimum Illumination | Color: 0.014 lux @ (f/1.4, AGC or)
B&W: 0 lux with IR | | Shutter Time | 1/3 to 1/10,000 sec | | Slow Shutter | Yes | | Lens | 2.8-12mm motorized varifocal, f/1.4 | | Angle Adjustment | Pan: 0 to 355°
Tilt: 0 to 75°
Rotation: 0 to 355° | | Lens Mount | Φ14 | | Day & Night | IR cut filter (auto / schedule / alarm trigger) | | Wide Dynamic Range | 120 dB | | Digital Noise Reduction | 3D-DNR | | | | Video Compression | H.264 / MJPEG / H.264+ | | H.264 Profile | Main profile | | Video Bit Rate | 32 kb/s to 16 Mb/s | | Audio Compression | G.711 / G.722.1 / G.726 / MP2L2 | | Audio Bit Rate | 64 kb/s (G.711) / 16 kb/s (G.722.1) / 16 kb/s (G.726) / 32 to 128 kb/s (MP2L2) | | Dual Streaming | Yes | | | | Maximum Image Resolution | 1920 x 1080 | | Frame Rate | 30 fps (1920 x 1080, 1280 x 960, 1280 x 720) | | Image Enhancement | WDR, BLC, ROI | | Image Settings | Rotate Mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser | | BLC | Yes, zone configurable | | ROI | Yes, 4 regions | | | | Network Storage | NAS (supports NFS, SMB/CIFS), ANR | | Alarm Trigger | Intrusion detection, line crossing detection, motion detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict, storage exception | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Security | User authentication, watermark, IP address filtering, anonymous access, reset | | Standard | ONVIF (profile S, profile G), PSIA, CGI, ISAPI | | | | Audio | 1-channel 3.5 mm audio input (Mic in/Line in) / out interface | | Communication | 1 x RJ45 10M/100M Ethernet interface | | Alarm Input / Output | 1/1 | | Smart Features | Line crossing detection, intrusion detection | | On-board Storage | Built-in microSD/SDHC/SDXC card slot, up to 128 GB (available separately) | | Operating Conditions | -22 to 140°F (-30 to 60°C) | | Humidity | 95% or less (non-condensing) | | Power Supply | 12 VDC ±10% , PoE (802.3af) | | Power Consumption | Maximum 5.5 W | | IR Range | 98' (30 m) | | Ingress Protection | IP66 weatherproof rating | | Impact Protection | IEC60068-2-75Eh, 50J; EN50102, IK10 | | Dimensions | Ø5.5 x 4" (Ø140 x 100 mm) | | Weight | 2.2 lb (1 kg) |
