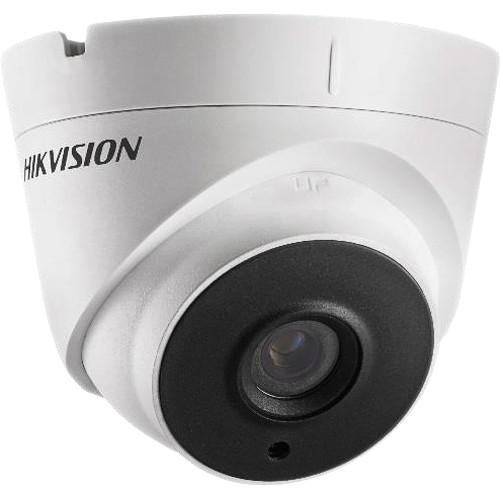

User Manual for Hikvision 2MP WDR EXIR Turret Camera with 3.6mm Fixed Lens Click to enlarge the picture
Contents of the user manual for the Hikvision 2MP WDR EXIR Turret Camera
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision 2MP WDR EXIR Turret Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The 2MP WDR EXIR Turret Camera from Hikvision utilizes a 2MP CMOS image sensor and a 3.6mm fixed lens to capture images at a resolution up to 1928 x 1088. With a built-in IR-cut filter this camera can capture clear images in complete darkness with an IR range up to 131.2'. The camera offers WDR (Wide Dynamic Range) of up to 120 dB for capturing images under varied lighting conditions, including extreme backlight and low light. With the IP66-rated weatherproof housing, this camera is suitable for outdoor applications. -
- 2MP high-performance CMOS sensor
- Analog HD output, up to 1928 x 1088 resolution
- OSD menu, Smart IR
- Supports True Day/Night function, DNR, and true WDR
- EXIR technology, up to 131.2' IR distance
- IP66 weatherproof
- Up the coax transmission
UPC: 813908026931 In the Box Hikvision 2MP WDR EXIR Turret Camera with 3.6mm Fixed Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 2MP WDR EXIR Turret Camera with 3.6mm Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE56D7T-IT3-3.6MM Specs | | | Image Sensor | 1080p CMOS image sensor | | Signal System | NTSC | | Effective Pixels | 1928 x 1088 | | Minimum Illumination | 0.01 lux @ f/1.2 (AGC On)
0 lux with IR | | Shutter Time | 1/30 to 1/50,000 sec | | Lens | 3.6mm | | Angle of View | 82.2° | | Lens Mount | M12 | | Day & Night | ICR | | Angle Adjustment | Pan: 0° to 360°
Tilt: 0° to 90°
Rotate: 0° to 360° | | Synchronization | Internal synchronization | | Wide Dynamic Range | 120 dB | | Video Frame Rate | 1080p @ 30 fps | | HD Video Output | 1 x Analog HD output | | S/N Ratio | >62 dB | | | | AGC | Supported | | Software Day / Night | Color/B&W/SMART | | White Balance | ATW/MWB | | BLC | Supported | | Functions | Wide dynamic range
Digital noise reduction
Mirror
SMART IR | | | | Operating Conditions | -40 to 140°F / -40 to 60°C | | Humidity | 90% or less (non-condensing) | | Power Supply | 12 VDC (±15%) | | Power Consumption | 5 W (maximum) | | Protection Level | IP66 | | IR Range | 131.2' | | Communication | Up the coax
Protocol: TVI output | | Dimensions (Ø x L) | 4.3 x 3.7" / 11.0 x 9.3 cm | | Weight | 0.7 lb / 350 g |
