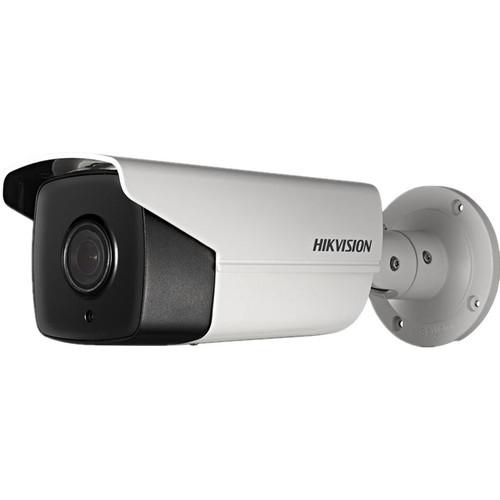

User Manual for Hikvision 2MP WDR IR 1080p Array Bullet Network Camera with Built-In Heater Click to enlarge the picture
Contents of the user manual for the Hikvision 2MP WDR IR 1080p Array
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision 2MP WDR IR 1080p Array contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The 2MP WDR IR 1080p Array Bullet Network Camera with Built-In Heater from Hikvision incorporates a 1/2.8" progressive scan CMOS sensor that captures clear images in 1920 x 1080 resolution. Image noise such as blur gets eliminated, thanks to the 3D digital noise reduction. The built-in heater combined with an IP67 rated housing allows the camera to function outdoors even in extreme cold weather. - Full HD 1080p video, up to 60 fps
- On-board storage, up to 64GB
- Smart Focus: Motorized VF lens
UPC: 816783018633 In the Box Hikvision 2MP WDR IR 1080p Array Bullet Network Camera with Built-In Heater (8-32mm @ F1.4 Motorized VF Lens) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 2MP WDR IR 1080p Array Bullet Network Camera with Built-In Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD4A25FWD-IZH8 Specs | | | Image Sensor | 1/2.8" Progressive Scan CMOS | | Minimum Illumination | 0.01 lux @ (F1.2, AGC On), 0 lux with IR | | Shutter Time | 1 to 1/100,000 sec | | Lens | 8-32mm @ F1.4 Motorized VF lens | | Auto Iris | DC drive | | Day & Night | IR cut filter with auto switch | | Digital Noise Reduction | 3D DNR | | DNR | 3D DNR | | Wide Dynamic Range | 120 dB | | | | Video Compression | H.264 / MJPEG | | H.264 Profile | Baseline Profile / Main Profile / High Profile | | Video Bit Rate | 32 kb/s to 16 Mb/s | | Audio Compression | G.711/G.722.1/G.726/MP2L2 | | Audio Bit Rate | 64 kb/s (G.711) / 16 kb/s (G.722.1) / 16 kb/s (G.726) / 32 to 128 kb/s (MP2L2) | | | | Maximum Resolution | 1920 × 1080 | | Frame Rate | 50 Hz: 50 fps (1920 × 1080) / (1280 × 960) / (1280 × 720)
60 Hz: 60 fps(1920 × 1080) /(1280 × 960)/(1280 × 720) | | Streaming | Independent with Main Stream and Sub Stream, up to 50 Hz: 25 fps (1920 × 1080), 60 Hz: 30 fps (1920 × 1080) | | Image Settings | Rotate mode, saturation, brightness, contrast, grayscale adjustable through client software or web browser | | BLC | Support, zone optional | | Defog | Support | | Day/Night | Auto/Schedule/Triggered by Alarm In | | Overlay | 128 x 128 24-bit BMP format overlay, zone optional | | ROI | Support | | | | Network Storage | microSD/SDHC/SDXC card with ANR (up to 64G), NAS (Support NFS, SMB/CIFS) | | Alarm Trigger | Line crossing detection, intrusion detection, scene change detection, audio exception detection, motion detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict, storage exception | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Security | One-key recovery, flash-prevention, three streams, heartbeat, mirror, password protection, video mask, watermark, IP address filtering, anonymous access | | System Compatibility | ONVIF, PSIA, CGI, ISAPI | | | | Protection Level | IP67 | | Operating Conditions | Humidity: 95% or less (non-condensing)
Operating Temperature: -40 to 140°F (-40 to 60°C) | | Power Supply | 12 VDC ± 10%, PoE (802.3af) | | Power Consumption | 13 W maximum | | IR Range | Up to 328.0' (100 m) | | Dimensions | 3.93 x 4.09 x 12.27" (100 × 103.9 × 311.8 mm) | | Weight | 65.2 oz (1850 g) | | | | Package Weight | 4.6 lb | | Box Dimensions (LxWxH) | 15.4 x 6.3 x 6.2" |
