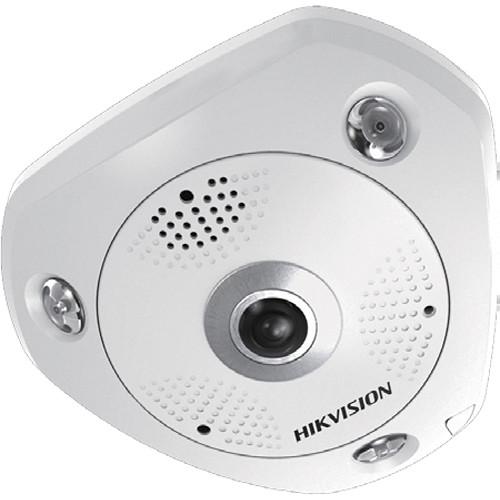

User Manual for Hikvision 3MP Fisheye ePTZ Camera Click to enlarge the picture
Contents of the user manual for the Hikvision 3MP Fisheye ePTZ Camera
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision 3MP Fisheye ePTZ Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The 3MP Fisheye ePTZ Camera from Hikvision features a 1/3" progressive-scan CMOS sensor for up to 2048 x 1536 resolution at 25 fps. Equipped with a 1.19mm fisheye lens, the camera can capture a 360° panoramic field of view for a wide coverage area. Additionally, the camera's lens is surrounded by IR LEDs, providing up to 49' of night vision in complete darkness. Image enhancements such as backlight compensation, white balance, and 3D DNR allow you to capture clear images in ambient light for use in a variety of environments. A built-in microphone and speaker provide 2-way audio for listening and speaking to those you are monitoring. H.264 video compression conserves storage and bandwidth, and the camera features an integrated microSD slot that supports up to 128GB of on-site storage for edge recording. This device is ONVIF-compliant for compatibility with a wide range of surveillance devices, and PoE technology enables you to run just one wire for both data and power, for a simple and easy setup. - 1/3" progressive-scan CMOS sensor for up to 2048 x 1536 video resolution
- 1.19mm fixed fisheye lens for a 360° panoramic field of view
- Built-in microphone and speaker for 2-way audio
- Integrated microSD slot supports up to 128GB of on-site storage for edge recording
- 3D DNR effectively filters noise from the image, even in low-light scenarios
- Saturation, brightness, hue, sharpness, and contrast adjustable image settings
- Backlight compensation, automatic gain control, and white balance enhancements
- IR LEDs provide up to 49' of night vision for use at all times
- Motion detection, network disconnect, IP address conflict, and tampering will trigger an alarm
- Security features such as user authentication, IP address filtering, and anonymous access
- Can be powered via 12 VDC or standard PoE for convenience
- ONVIF-compliant for compatibility with a wide range of surveillance devices
UPC: 816783017261 In the Box Hikvision 3MP Fisheye ePTZ Camera Limited 3-Year Warranty Brochure PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 3MP Fisheye ePTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD6332FWD-I Specs | | | Sensor | 1/3" progressive-scan CMOS | | Minimum Illumination | 0.28 lux @ f/2.0 (AGC On)
0 lux with IR | | Shutter Speed | 1/25 (1/30) to 1/100,000 seconds | | Lens | 1.19mm @ f/2.0 | | Angle of View | 360° | | Lens Mount | M12 | | Day & Night | ICR | | IR Range | Maximum: 49' (15 m) | | | | Video | H.264 / MPEG4 / MJPEG | | H.264 Profile | Baseline / Main / High | | Video Bit Rate | 32 Kb/s to 16 Mb/s | | Audio | Compression: G.711 / G.726 / MP2L2
Bit Rate: 64 Kb/s (G.711) / 16 Kb/s (G.726) / 64 Kb/s (MP2L2) | | | | Maximum Resolution | 2048 x 1536 | | Frame Rate | High-Frame Mode: Supported
1 x fisheye (2048 x 1536, 25 fps) or (1536 x 1536, 30 fps) or 4 x PTZ (800 x 600, 30 fps)
Multi-Channel Mode: Supported
1 x fisheye (1536 x 1536, 20 fps) and 1 x panoramic (1600 x 1200, 20 fps) and 3 x PTZ (800 x 600, 20 fps) | | Maximum Streams | High Frame Rate Mode: 1 or 4
Multi-Channel: Up to 5
(No sub-streams) | | Digital Noise Reduction | 3D DNR | | Wide Dynamic Range | 120 dB | | Image Settings | Saturation, brightness, contrast, hue, sharpness, AGC, white balance | | Light Compensation | Supported | | Day/Night Switching | Auto / Manual / Scheduled / Alarm trigger | | | | Storage | NAS, SAMB / CIFS | | Alarm Trigger | Motion detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict, storage exception | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Security | User authentication, watermark, IP address filtering, anonymous access | | Standard | ONVIF, PSIA, CGI, ISAPI | | | | Audio | Built-in microphone (24 dB)
Built-in speaker, supports echo cancellation | | Communication | 1 x RJ45 10M/100M/1000M Ethernet | | On-board Storage | microSD/SDXC slot, supports up to 128 GB | | | | Operating Conditions | Temperature: -22 to 140°F / -30 to 60°C
Humidity: 95% or less (non-condensing) | | Power Supply | 12 VDC ±10% / PoE (802.3af) | | Power Consumption | Maximum: 12 W | | Dimensions | 6.5 x 6.0 x 1.7" / 16.4 x 15.3 x 4.4 cm | | Weight | 3.1 lb (1.4 kg) | | | | Package Weight | 2.225 lb | | Box Dimensions (LxWxH) | 10.5 x 9.1 x 5.4" |
