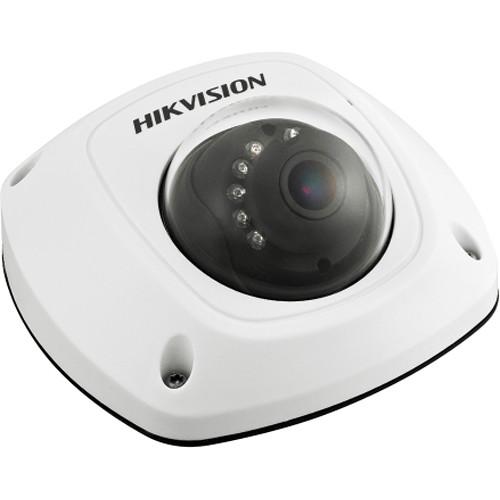

User Manual for Hikvision 3MP HD Outdoor PoE Network Mini Dome Camera with 4mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision 3MP HD Outdoor PoE Network
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision 3MP HD Outdoor PoE Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The Hikvision DS-2CD2532F-I is a high resolution outdoor surveillance camera featuring dual stream capability, on-board recording, night vision, WDR and DNR image enhancement, Power-over-Ethernet support, and more. Capture video in your choice of 2048 x 1536 HD at 20 fps, 1920 x 1080 Full HD at 30 fps, or 1280 x 720 HD at 30 fps, and simultaneously send two video streams to your monitor and/or recorder. The field of view at 2048 x 1536 is 70° and increases slightly when you select a lower resolution. Record everything over your network or internally to up to a 64GB microSD card (sold separately). An audio alarm interface alerts the owner of detected motion, disconnect from the network storage error, and possible tampering. The system is capable of WiFi connection, useful for monitoring along a further transmission range. The camera is weather-resistant and vandal-proof for reliable outdoor use.
IR LEDs around the lens provide up to 33 ft of night vision in black-and-white capture. Power this camera via a Power-over-Ethernet connection to your NVR or PoE switch or alternatively via any 12 VDC 1A power supply (sold separately). Your images are enhanced with the camera's Digital Wide Dynamic Range and Digital Noise Reduction features, and you can also tailor the look you want by adjusting a variety of settings, such as brightness and contrast.
You can manage the camera via the included software or via a web browser connection to an online management interface. The camera can be mounted directly to the wall or ceiling with included hardware or via optional adjustable wall/ceiling mounts (model #s DS-1272ZJ-120 and DS-1271ZJ-120). - Key Features
-
- Capture in your choice of 2048 1280 HD at 20 fps, 1920 x 1080 HD at 30 fps, or 1280 x 720 HD at 30 fps
- Simultaneously send two video streams to your monitor and/or recorder
- Power-over-Ethernet capable
- Up to 33 ft of night vision
- Network recording and on-board recording to up to 64GB microSD cards
- Digital Wide Dynamic Range
- Digital Noise Reduction
- Weather-resistant and vandal-proof
- Management software included
- Mount directly to the wall or ceiling with included hardware
- Optional adjustable wall/ceiling mounts supported
- Image Settings
- Adjustable through client software or web browser:
- Rotate Mode
- Saturation
- Brightness
- Contrast
- Sharpness
- Alarm Trigger
-
- Line Crossing
- Intrusion Detection
- Motion Detection
- Dynamic Analysis
- Tampering Alarm
- Network Disconnect
- IP Address Conflict
- Storage Exception
- Miscellaneous Features
-
- Flickerless
- Heartbeat
- Mirror
- User authentication
- Video mask
- Watermark
UPC: 816783016820 In the Box Hikvision 3MP HD Outdoor PoE Network Mini Dome Camera with 4mm Lens (with Audio I/O and Wifi Capabilities) Mount Screws & Hardware (for Mounting Direct to Wall) CD with Management Software User Manual Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 3MP HD Outdoor PoE Network Mini Dome Camera with 4mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2532F-IWS-4MM Specs | Image Sensor | 3 MP 1/3" progressive scan CMOS | | Recording Resolution | 2048 x 1536 at 20 fps 60/50 Hz
1920 x 1080 at 30/25 fps 60/50 Hz
1280 x 720 at 30/25 fps 60/50 Hz | | Lens | 4 mm @ f/2.0 | | Field of View | 2048 x 1536: 70°
1920 x 1080: 79° | | Minimum Illumination | 0.07 lux at f/1.2, AGC ON, 0 lux with IR | | Shutter Time | 1/30 - 1/100,100s | | Lens Mount | M12 | | Day & Night | IR cut filter with auto switch | | Adjustment | Pan: -30 to 30°
Tilt: 0 to 80°
Rotation: 0 to 360° | | Digital Noise Reduction (DNR) | 3D DNR | | Wide Dynamic Range | Digital WDR | | Backlight Compensation | Yes, zone configurable | | Video Compression | H.264 / MJPEG
Main Profile: H.264 | | Video Bit Rate | 32 Kbps - 12 Mbps | | ROI | Yes | | Dual Streaming | Yes | | Network Storage | NAS ( NFS, SMB/CIFS) | | Local Storage | Built-in microSD/SDHC/SDXC card slot (supports up to 64 GB cards) | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | System Compatibility | OINVIF, PSIA, CGI | | Communication Interface | 1x RJ45 10M/100M Ethernet port | | Alarm I/O | Yes | | Alarm Triggers | Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception, storage error | | WiFi Compatible | Standard: IEEE802.11b/g/n
Frequency Range: 2.4 to 2.4835 GHz
Bandwidth: Support 20/40 MHz
Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmission Range: 11b - 11 Mb/s, 11g - 54 Mb/s, 11n - up to 150 Mb/s
Transmission Range: Up to 656.2' / 200.0 m outdoors, up to 164.0' / 50.0 m indoors | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Operating Humidity | 95% or less (non-condensing) | | Power Supply | PoE (802.3af); 12 VDC ± 10% (optional — any 12 VDC, 1 A power supply supported) | | Power Consumption | 5 W (max) | | Impact Protection | IEC60068-2-75Eh, 5J; EN50102, up to IK08 | | Ingress Protection | IP66 | | IR Range | Approx. 33 ft (10 m) | | Dimensions | 3.9 x 3.8 x 2" (10 x 9.7 x 5.3 cm) | | Weight | 1.3 lb (0.6 kg) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 10.0 x 6.4 x 4.0" |
