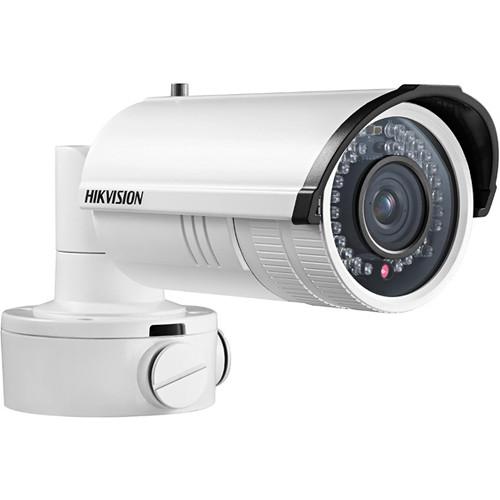

User Manual for Hikvision 3MP Outdoor Bullet Camera Click to enlarge the picture
Contents of the user manual for the Hikvision 3MP Outdoor Bullet Camera
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision 3MP Outdoor Bullet Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The 3MP Outdoor Bullet Camera from Hikvision utilizes a 1/3" progressive-scan CMOS sensor for 2048 x 1536 resolution at 20 fps, and it features an 8-32mm motorized varifocal lens for a 26° to 8.54° field of view. IR LEDs surround the lens for up to 262.5' of night vision, and an IR cut filter automatically switches from color to B&W for clear details in changing light conditions. Digital WDR, 3D DNR, and backlight compensation enable the camera to capture high-quality images in ambient lighting, and saturation, brightness, and contrast settings allow you to configure your camera depending on different environments. Additionally, a built-in heater and defog function offers functionality in inclement weather.
The camera will trigger an alarm when motion is detected, when there is a network disconnect, when there is an IP address conflict, or when a storage exception occurs. A microSD slot supports up to 64GB of data for edge storage, however, the camera also supports NAS storage for saving larger amounts of information. Triple streaming in H.264 and MJPEG formats maximizes your bandwidth and allows you to customize your network. Furthermore, with PoE technology you can power the camera using the RJ45 Ethernet connection for a minimum of wires during setup. The camera is ONVIF-compliant for compatibility with other surveillance devices, and an IP66-rated housing allows you to install the camera outdoors. - 1/3" progressive-scan CMOS sensor for a max resolution of 2048 x 1536
- IR LEDs provide up to 262.5' of night vision for use at all times
- Image enhancements such as digital WDR, 3D DNR, and backlight compensation
- Image settings, including saturation, brightness, and contrast
- microSD slot supports up to 64GB of storage for edge recording
- Intrusion detection, motion detection, network disconnect, and face detection will trigger an alarm
- Built-in heater and defog functions, as well as EIS (Electronic Image Stabilization)
- H.264 and MJPEG triple streaming for customizing your network
- Can be powered using PoE technology for a minimum of wires during installation
- ONVIF-compliance for compatibility with a wide range of surveillance devices
- IP66-rated weatherproof housing for use outdoors
UPC: 816783018510 In the Box Hikvision 3MP Outdoor Bullet Camera Limited 3-Year Warranty Guides & Manuals bsquuquvfcwsvzfcafssssavsrqfqfb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 3MP Outdoor Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Hikvision 3MP Outdoor Bullet Camera can be downloaded in PDF format at the link stated below.
Technical parametersHikvision DS-2CD4232FWD-IZH8 Specs | | | Image Sensor | 1/3" progressive-scan CMOS | | Minimum Illumination | 0.014 lux @ f/1.4 (AGC on), 0 lux with IR | | Shutter Time | 1 to 1/100,000 seconds | | Slow Shutter | Yes | | Lens | 8-32mm @ f/1.4 | | Field of View | 26° to 8.54° | | Lens Mount | Φ14 | | Auto Iris | DC drive | | Day & Night | IR cut filter (Auto / Schedule / Alarm trigger) | | Digital Noise Reduction | 3D DNR | | Wide Dynamic Range | 120 dB WDR | | | | Video Compression | H.264 / MPEG4 / MJPEG | | H.264 Profile | Baseline profile / Main profile / High profile | | Video Bit Rate | 32 Kb/s to 16 Mb/s | | | | Maximum Resolution | 2048 x 1536 | | Frame Rate | 60 Hz: 20 fps (2048 x 1536), 30 fps (1920 x 1080), 30 fps (1280 x 720) | | Streaming | 3rd Stream: Independent setting up to 60 Hz: 20 fps (2048 x 1536) | | Image Settings | Rotate Mode, Saturation, Brightness, Contrast grayscale adjustable through client software or web browser | | Backlight Compensation | Yes, zone configurable | | Defog | Yes | | EIS | Yes | | Picture Overlay | 128 x 128, BMP 24-bit, zone configurable | | ROI | Yes, up to 4 configurable areas | | | | Network Storage | NAS | | Alarm Trigger | Intrusion detection, Defocus detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Security | User authentication, watermark, IP address filtering, anonymous access, reset | | System Compatibility | ONVIF, PSIA, CGI | | | | Communication | 1 x RJ45 10M/100M Ethernet interface | | On-board Storage | Built-in microSD/SDHC/SDXC card slot, up to 64 GB | | Reset Button | Yes | | | | Operating Conditions | -22 to 140°F (-30 to 60°C)
With Smart Heater: -40 to 140°F (-40 to 60°C) | | Humidity | 95% or less (non-condensing) | | Power Supply | 12 VDC ±10%, PoE (802.3af) | | Power Consumption | Maximum: 12.5 W | | IR Range | Up to 262.5' / 80 m | | Ingress protection | IP66-rated | | Dimensions | 3.9 x 4.1 x 12.9" (98.0 x 105.0 x 328.8 mm) | | Weight | 3.8 lb / 1.7 kg | | | | Package Weight | 4.6 lb | | Box Dimensions (LxWxH) | 15.1 x 6.3 x 6.3" |
