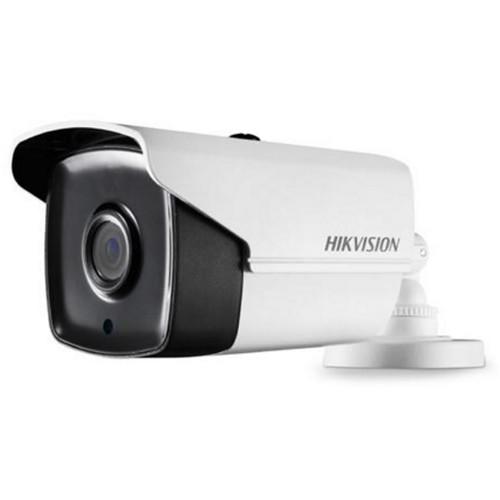

User Manual for Hikvision 3MP WDR EXIR Bullet Camera with 3.6mm Fixed Lens and Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision 3MP WDR EXIR Bullet Camera
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision 3MP WDR EXIR Bullet Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The 3MP WDR EXIR Bullet Camera from Hikvision utilizes a 3MP CMOS sensor and a 3.6mm fixed lens to capture full HD images. With a built-in IR-cut filter this camera can capture clear images in low-light conditions for up to 65.6'. The camera supports a video frame rate of up to 30 fps and offers WDR of up to 120 dB for capturing images under varied lighting conditions. With the IP66-rated weatherproof housing, this camera is suitable for outdoor applications. -
- 3MP CMOS
- Analog HD output, up to 1080p resolution
- Supports True Day/Night function, DNR, and true WDR
- Smart IR and EXIR technology
- Up the coax transmission
UPC: 813908026894 In the Box Hikvision 3MP WDR EXIR Bullet Camera with 3.6mm Fixed Lens and Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 3MP WDR EXIR Bullet Camera with 3.6mm Fixed Lens and Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE16F7T-IT-3.6MM Specs | | | Image Sensor | 3 MP CMOS image sensor | | Signal System | Not specified by manufacturer | | Effective Pixels | 2052 x 1536 | | Minimum Illumination | 0.01 lux @ f/1.2, AGC ON
0 lux with IR | | Shutter Time | 1/25 to 1/50,000 sec | | Lens | 3.6mm | | Angle of View | Not specified by the manufacturer | | Lens Mount | M12 | | Day & Night | ICR | | Angle Adjustment | Pan: 0° to 360°
Tilt: 0° to 90°
Rotate: 0° to 360° | | Synchronization | Internal synchronization | | Wide Dynamic Range | 120 dB | | Video Frame Rate | 18 fps @ 1920 x 1536 | | HD Video Output | 1 x Analog HD output | | S/N Ratio | >62 dB | | | | AGC | Supported | | Day & Night | Color/BW/SMART | | White Balance | ATW/ MWB | | BLC | Supported | | Functions | Wide dynamic range, digital noise reduction, mirror, SMART IR | | | | Operating Conditions | -40 to 140°F / -40 to 60°C | | Humidity | 90% or less (non-condensing) | | Power Supply | 12 VDC ±15% | | Power Consumption | Maximum 5 W | | Protection Level | IP66 | | IR Range | 65.6' / 20 m | | Communication | Up the coax
Protocol: HIKVISION-C (TVI output) | | Dimensions | 2.3 x 2.2 x 6.1" / 58.5 x 55.5 x 153.6 mm | | Weight | Approximately 0.82 lb / 0.37 kg |
