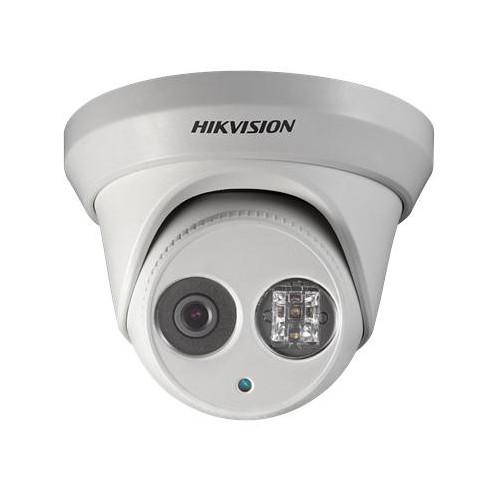

User Manual for Hikvision 4MP Day Night IR Outdoor Dome Camera with 6mm Fixed Lens Click to enlarge the picture
Contents of the user manual for the Hikvision 4MP Day Night IR Outdoor
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision 4MP Day Night IR Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description With three selectable video resolutions, you can use the 4MP Day/Night IR Outdoor Dome Camera from Hikvision to monitor an outdoor area in either 4MP, 1080p, or 720p resolution. These high-definition resolutions combined with a 1/3" progressive-scan CMOS sensor and frame rates of up to 30 fps provide high-quality images in a wide range of scenarios. IR LEDs offer night vision at a distance of up to 100', and an automatic IR cut filter enables use of the camera in low-light conditions. A 6mm fixed lens provides a 56° field of view, and the camera can be panned 360°, tilted 75°, and rotated 360° for multiple viewing areas.
Wide dynamic range and 3D digital noise reduction features offer clear image capture in environments with ambient lighting. Zone configured backlight compensation and four regions of interest allow you to focus on and enhance specific areas within your field of view. Smart features, such as line crossing and intrusion detection, provide analytics for tracking disturbances. Motion detection, alarm tampering, a network disconnect, IP address conflict, and storage exception will all trigger an alarm, keeping you up-to-date with your camera's functionality.
The camera's 802.3af network connection is protected with a number of security measures, including three level user identification and password authorization. Also, the Ethernet connection can be used to power the camera using PoE technology. ONVIF-compliance offers compatibility with a wide range of devices, and a weatherproof IP66-rated housing allows for use in outdoor areas. - 4MP (2688 x 1520) video resolution and frame rates up to 30 fps
- Wide dynamic range for high-quality images in ambient lighting
- Smart features, such as line crossing and intrusion detection, provide analytics
- Multiple alarm triggers, including motion detection, alarm tampering, and network disconnect
- Power over Ethernet using 802.3af protocol
- Supports H.264+, H.264, and MJPEG video compression
- High-performance IR LEDs provide night vision at a distance of up to 100'
- Four regions of interest for focusing on an area within your field of view
- Backlight compensation is zone configured
- Network security features include three level user authentication and password authorization
- Weatherproof with an IP66 rating for outdoor use
- ONVIF-compliance allows for compatibility with a wide range of devices
UPC: 813908022568 In the Box Hikvision 4MP Day/Night IR Outdoor Dome Camera with 6mm Fixed Lens Limited 3-Year Warranty Brochure PDF 809.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 4MP Day Night IR Outdoor Dome Camera with 6mm Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2342WD-I Specs | | | Image Sensor | 1/3" progressive-scan CMOS | | Minimum Illumination | Color: 0.028 lux @ f/2.0 (AGC on)
B&W: 0 lux with IR | | IR LEDs | Illumination Distance: 100' / 30 m | | Shutter Speed | 1/3 to 1/10,000 s | | Lens | 6mm fixed | | Angle of View | 56° | | Lens Mount | M12 | | Day/Night | IR cut filter with auto switch | | Digital Noise Reduction | 3D DNR | | Wide Dynamic Range | 120 dB | | Adjustments | Pan: 360°
Tilt: 75°
Rotate: 360° | | | | Video Compression | H.264+, H.264, MJPEG | | H.264 Profile | Main profile | | Video Bit Rate | 32 Kbps to 16 Mbps | | Dual Streaming | Yes | | | | Maximum Resolution | 2688 x 1520 | | Frame Rate | 20 fps: 2688 x 1520
30 fps: 1920 x 1080, 1280 x 720 | | Image Settings | Compression, color saturation, brightness, contrast, sharpness, rotate mode, privacy mask | | Backlight Compensation | Zone configured | | ROI | 4 regions | | | | Smart Features | Line crossing detection (4 lines)
Intrusion detection (4 regions) | | | | Storage | NAS (supports NFS, SMB/CIFS), ANR | | Alarm Triggers | Motion detection, line crossing detection, intrusion detection, tamper alarm, network disconnect, IP address conflict, storage exception | | Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RT SP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Security | Three level user authentication, password authorization, HTTPS and SSH certificate, IEEE802.1x, basic and digest authentication, watermark, IP address filtering, log-in lockout | | Standards | ONFIF (Profile S, Profile G), PSIA, CGI, ISAPI | | | | Communication | 1 x RJ45 10/100M Ethernet port | | | | Operating Environment | Temperature: -22 to 140°F / -30 to 60°C
Humidity: 95% or less | | Power Supply | 12 VDC ±10%
PoE (802.3af) | | Power Consumption | Maximum: 7.5 W (with ICR on) | | Dimensions | 5.0 x 3.8" / 12.7 x 9.7 cm | | Weight | 1.5 lb / 0.7 kg | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 6.0 x 5.9 x 5.4" |
