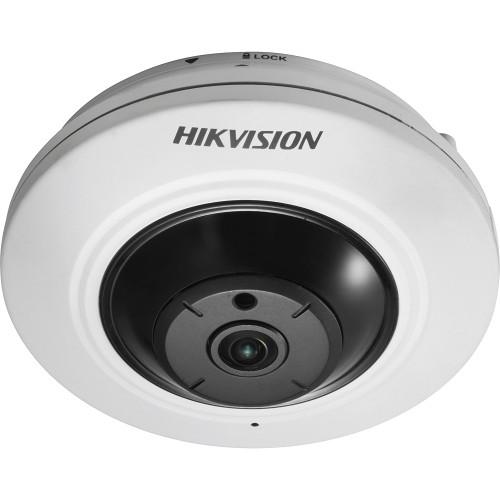

User Manual for Hikvision 4MP Fisheye Mini Dome Camera Click to enlarge the picture
Contents of the user manual for the Hikvision 4MP Fisheye Mini Dome Camera
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision 4MP Fisheye Mini Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The 4MP Fisheye Mini Dome Camera from Hikvision features a 1/3" progressive-scan CMOS sensor for up to 2560 x 1440 resolution at 15 fps. The camera can also achieve 1920 x 1080 and 1280 x 720 resolutions at 30 fps for full HD video in real time. Equipped with a 1.6mm fisheye lens, the camera can capture a 186° horizontal field of view for a wide coverage area. Additionally, the camera's lens is surrounded by IR LEDs, providing up to 26' of night vision in complete darkness. Image enhancements such as backlight compensation, white balance, and 3D DNR allow you to capture clear images in ambient light for use in a variety of environments. A built-in audio input and output and alarm input and output enable you to conveniently expand your surveillance setup. H.264 video compression conserves storage and bandwidth, and the camera features an integrated microSD slot that supports up to 128GB of on-site storage for edge recording. This device is ONVIF-compliant for compatibility with a wide range of surveillance devices, and PoE technology enables you to run just one wire for both data and power, for a simple and easy setup. - 1/3" progressive-scan CMOS sensor for up to 2560 x 1440 video resolution
- 1.6mm fixed fisheye lens for a 186° horizontal field of view
- Audio input and output and alarm input and output for expanding your setup
- Integrated microSD slot supports up to 128GB of on-site storage for edge recording
- 3D DNR effectively filters noise from the image, even in low-light scenarios
- Saturation, brightness, contrast, hue, and sharpness image settings
- Backlight compensation, automatic gain control, and white balance enhancements
- IR LEDs provide up to 26' of night vision for use at all times
- Motion detection, network disconnect, line crossing, and tampering will trigger an alarm
- Security features such as user authentication, IP address filtering, and anonymous access
- Can be powered via 12 VDC or standard PoE for convenience
- ONVIF-compliant for compatibility with a wide range of surveillance devices
UPC: 813908020373 In the Box Hikvision 4MP Fisheye Mini Dome Camera Limited 3-Year Warranty Guides & Manuals dqbcrssr Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 4MP Fisheye Mini Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Hikvision 4MP Fisheye Mini Dome Camera can be downloaded in PDF format at the link stated below.
Technical parametersHikvision DS-2CD2942F-IS Specs | | | Sensor | 1/3" progressive-scan CMOS | | Minimum Illumination | Color: 0.01 lux @ f/1.2 (AGC on)
B&W: 0.018 lux @ f/1.6 (AGC on)
0 lux with IR | | Shutter Time | 1/3 to 1/100,000 seconds | | Slow Shutter | Supported | | Lens | 1.6mm @ f/1.6 | | Angle of View | Horizontal: 186°
Vertical: 106° | | Lens Mount | M12 | | Day & Night | Electronic | | IR Range | 26' (8.0 m) | | | | Video | H.264 / MJPEG | | H.264 Profile | Baseline Profile / Main Profile | | Bit Rate | 32 Kb/s to 8 Mb/s | | Audio Compression | G.711 / G.722 / G.726 / MP2L2 | | Audio Bit Rate | 64 Kbps (G.711) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 128 Kbps (MP2L2) | | | | Maximum Resolution | 2560 x 1440 | | Frame Rate | 50 Hz: 12.5 fps (2560 x 1440), 25 fps (1920 x 1080, 1280 x 720)
60 Hz: 15 fps (2560 x 1440), 30 fps (1920 x 1080, 128 x 720) | | Image Enhancement | BLC / 3D DNR / ROI / Defog | | Image Settings | Saturation, Brightness, Contrast, Hue, Sharpness, AGC, White Balance | | Day/Night Switching | Auto / Scheduled / Triggered by alarm in | | | | Network Storage | NAS (Support NFS, SMB/CIFS)
micro SD/SDHC/SDXC slot, supports up to 128 GB | | Alarm Trigger | Line Crossing, Intrusion detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Security | User Authentication, Watermark, IP address filtering, Anonymous access | | Standard | ONVIF (Profile S, G), PSIA, CGI, ISAPI | | | | Operating Temperature | 14 to 104°F (-10 to 40°C) | | Humidity | 95% or less (non-condensing) | | Power Supply | 12 VDC ±10% / PoE (802.3af) | | Power Consumption | Maximum: 5.5 W | | Mount Type | Ceiling, wall, table | | Dimensions (Ø x D) | 4.68 x 1.62" (11.9 x 4.12 cm) | | Weight | 21.2 oz (600 g) | | | | Package Weight | 1.09 lb | | Box Dimensions (LxWxH) | 5.95 x 5.15 x 4.0" |
