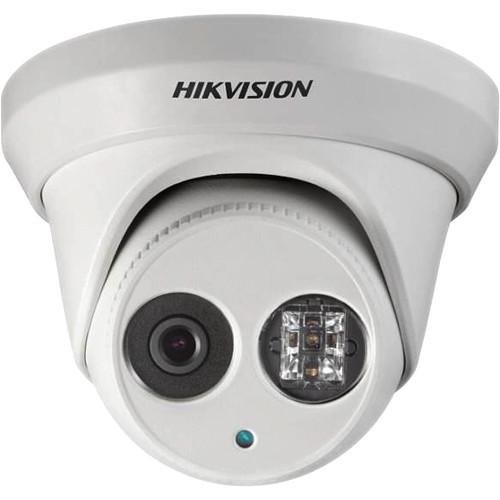

User Manual for Hikvision 4MP Indoor Outdoor EXIR Turret Network Camera with 2.8mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision 4MP Indoor Outdoor EXIR Turret
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision 4MP Indoor Outdoor EXIR Turret contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Capture indoor/outdoor, day/night surveillance video in your choice of 2688 x 1520 high-resolution, Full HD 1080p, or 720p HD. The Hikvision DS-2CD2342WD-I-2.8MM is a mini-dome, Power-over-Ethernet network camera featuring a 4MP high-resolution image sensor and interchangeable 2.8 mm. It has a weather-resistant housing and IR LEDs near the lens that provide up to 98 ft of night vision in complete darkness, the combination allowing for 24/7 monitoring in all weather conditions. Dual-stream capability allows you to send separate streams of your captured signal to your monitor and NVR simultaneously in your choice of H.264 and/or MJPEG compression profiles.
You can power this camera via a Power-over-Ethernet connection to your NVR or PoE switch, or alternatively using any 12V DC 1A power supply, sold separately. Your images are enhanced with the camera's Digital Wide Dynamic Range and Digital Noise Reduction features, and you can also tailor the look you want by adjusting a variety of settings, such as brightness and contrast. You can manage all settings and features via a web browser connection to an online management interface or via a free-download management software (Windows-compatible) available on the Hikvision website.
Hardware is included for surface-mounting the camera (such as directly to the ceiling) but you can also incorporate an optional Hikvision wall-mount bracket (model # DS-1273ZJ-130-TRL) or ceiling-mount pendant cap and mount (model #s PC130T and CPM). - Key Features
-
- Weather-resistant, day/night, mini-dome network camera
- 4MP high-resolution 1/2.8" progressive scan CMOS image sensor
- Capture 2688 x 1520 high-resolution at 20 fps, or Full HD 1080p or 720p HD at 30/25 fps
- Interchangeable 2.8mm lens
- Up to 98 ft of night vision
- Dual-streaming in H.264 and/or MJPEG
- Digital Wide Dynamic Range
- Digital Noise Reduction
- Manage all settings via an online management interface or a free-download Windows management software
- Surface mount hardware included
- Optional wall-mount bracket and ceiling-mount pendant cap and mount supported
UPC: 813908022544 In the Box Hikvision 4MP Indoor/Outdoor EXIR Turret Network Camera with 2.8mm Lens Surface Mount Screws Limited 3-Year Warranty Brochure PDF 809.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 4MP Indoor Outdoor EXIR Turret Network Camera with 2.8mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2342WD-I-2.8MM Specs | | | Image Sensor | 1/2.8" progressive scan CMOS | | Weatherproof Rating | IP66 | | Resolution | 2688 x 1520 at 20 fps 60/50 Hz
1920 x 1080 at 30/25 fps 60/50 Hz
1280 x 720 at 30/25 fps 60/50 Hz | | Lens | 2.8 mm at f/2.0
M12 mount | | Angle of View | Not specified by manufacturer | | Minimum Illumination | 0.01 lux at f/1.2, AGC ON, 0 lux with IR | | Night Vision | Approx. 98 ft (30 m) | | Shutter Time | 1/3 - 1/10,000s | | Angle Adjustment | Horizontal: 0 - 360°
Vertical: 0 - 75°
Rotation: 0 - 360° | | Noise Reduction | 3D Digital Noise Reduction (3D DNR) | | Dynamic Range | 120 dB Wide Dynamic Range | | Backlight Compensation | Yes, zone configurable | | Video Compression | H.264 (main profile) / MJPEG | | Dual Streaming | Yes | | Bit Rate | 32 Kbps - 16 Mbps | | ROI | Supported | | Network Storage | NAS (Support NFS, SMB/CIFS), ANR | | Alarm Trigger | Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception | | Network Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | System Compatibility | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI | | Communication Interface | 1 x RJ45 10 M / 100 M Ethernet interface | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Humidity | 95% or less (non-condensing) | | Power Supply | 12 VDC ± 10% , PoE (802.3af) | | Power Consumption | Max. 5.5 W (7.5 W with ICR on) | | Dimensions | 5" (12.7 cm) diameter
3.8" (9.8 cm) height | | Weight | 1.5 lb (0.67 kg) | | | | System Requirements | Operating System: Windows XP SP1 and above, Vista, Windows 7, Server 2003, Server 2008 32-bit
CPU: Intel Pentium IV 3.0 GHz or higher
RAM: 1 GB or higher
Display: 1024 x 768 resolution or higher
CD-ROM drive for software installation | | | | Package Weight | 1.695 lb | | Box Dimensions (LxWxH) | 6.05 x 5.95 x 5.65" |
