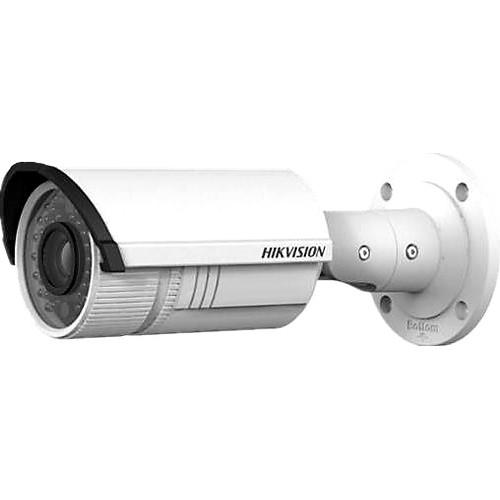

User Manual for Hikvision 4MP Outdoor Bullet Camera Click to enlarge the picture
Contents of the user manual for the Hikvision 4MP Outdoor Bullet Camera
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision 4MP Outdoor Bullet Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The 4MP Outdoor Bullet Camera from Hikvision utilizes a 1/3" progressive-scan CMOS sensor for 2688 x 1520 resolution at 20 fps, and it features a 2.8-12mm motorized varifocal lens surrounded by IR LEDs for up to 98.4' of night vision. WDR, 3D DNR, and backlight compensation enable the camera to capture clear images in ambient lighting, and saturation, brightness, contrast, and sharpness settings allow you to configure your camera depending on different environments. Additional features include one-key reset, password protection, privacy masking, watermarking, IP address filtering, and anonymous access.
The camera will trigger an alarm when motion is detected, if someone tampers with the device, if there is a network disconnect, if there is an IP address conflict, or if a storage exception occurs. Dual streaming in H.264+, H.264, and MJPEG formats offers maximized bandwidth and customization of your network. A microSD slot supports up to 128GB of data for edge storage, however, the camera also supports NAS storage for saving larger amounts of information. Additionally, an external input and output allows you to connect a microphone and speaker to the camera for 2-way audio. The camera is ONVIF-compliant for compatibility with other surveillance devices, and an IP66-rated housing allows you to install the camera outdoors. - 1/3" progressive-scan CMOS sensor for 2688 x 1520 high-quality resolution
- IR LEDs provide up to 98.4' of night vision for use at all times
- Image enhancements such as WDR, 3D DNR, and backlight compensation
- Image settings, including rotate mode, saturation, brightness, contrast, and sharpness
- Audio input and output for 2-way audio capability
- Security features include one-key reset, flash-prevention, password protection, and privacy masking
- H.264+, H.264, and MJPEG dual streaming for customizing your network
- Can be powered using PoE technology for a minimum of wires during installation
- ONVIF-compliance for compatibility with a wide range of devices
- IP66-rated weatherproof housing for use outdoors
UPC: 813908023527 In the Box Hikvision 4MP Outdoor Bullet Camera Limited 3-Year Warranty Brochure PDF 462.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 4MP Outdoor Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2642FWD-IZS Specs | | | Image Sensor | 1/3" progressive-scan CMOS | | Minimum Illumination | 0.01 lux @ f/1.2 (AGC ON)
0.014 lux @ f/1.4 (AGC ON)
0 lux with IR | | Shutter Time | 1/3 to 1/10,000 seconds | | Slow Shutter | Yes | | Lens | 2.8-12mm @ f/1.4, motorized lens | | Lens Mount | Φ14 | | Day & Night | IR cut filter with auto switch | | Wide Dynamic Range | 120 dB | | | | Video Compression | H.264 / MJPEG / H.264+ | | H.264 Profile | Main profile | | Video Bit Rate | 32 Kb/s to 16 Mb/s | | Audio Compression | G.711 / G.722.1 / G.726 / MP2L2 | | Audio Bit Rate | 64 Kb/s (G.711) / 16 Kb/s (G.722.1) / 16 Kb/s (G.726) / 32 to 128 Kb/s (MP2L2) | | | | Maximum Image Resolution | 2688 x 1520 | | Frame Rate | 50 Hz: 20 fps (2688 x 1520), 25 fps (1920 x 1080), 25 fps (1280 x 720)
60 Hz: 20 fps (2688 x 1520), 30 fps (1920 x 1080), 30 fps (1280 x 720) | | Image Enhancement | BLC / 3D DNR / ROI | | Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser | | Day/Night Switching | Auto / Schedule / Triggered by alarm input | | | | Network Storage | NAS (Support NFS, SMB/CIFS), ANR
Built-in microSD/SDHC/SDXC card slot, up to 128GB | | Alarm Trigger | Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception | | Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Security | One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, anonymous access | | Standard | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI | | | | Communication | 1 x RJ45 10M/100 M Ethernet interface | | Operating Conditions | -22 to 140°F (-30 to 60°C) | | Humidity | 95% or less (non-condensing) | | Power Supply | 12 VDC ±10%, PoE (802.3af) | | Power Consumption | 5.5 W (max)
With IR Cut Filter: 7.5 W (max) | | Ingress protection | IP66 weatherproof rating | | IR Range | Up to 98' (30 m) | | Dimensions | 3.74 x 4.13 x 10.18" (9.5 x 10.5 x 25.9 cm) | | Weight | 2.65 (1.2 kg) | | | | Package Weight | 3.165 lb | | Box Dimensions (LxWxH) | 15.25 x 6.35 x 6.05" |
