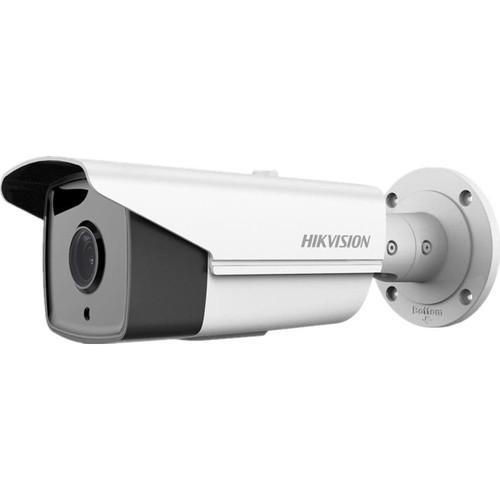

User Manual for Hikvision 4MP Outdoor Bullet Camera Click to enlarge the picture
Contents of the user manual for the Hikvision 4MP Outdoor Bullet Camera
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision 4MP Outdoor Bullet Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The 4MP Outdoor Bullet Camera from Hikvision features a 1/3" CMOS sensor for up to 4MP resolution at 20 fps. The camera can also achieve 1080p and 720p resolutions at 30 fps for video footage in real time. The camera's 6mm lens is surrounded by IR LEDs, enabling it to operate in complete darkness at up to 164'. Wide dynamic range, backlight compensation, and 3D digital noise reduction all offer clear images in ambient lighting for use in a wide range of settings. Additionally, you can adjust the saturation, brightness, contrast, and sharpness settings for configuring the camera based on your environment. When motion, intrusion, line crossing, tampering, a network disconnect, an IP address conflict, or a storage exception is detected, the camera will trigger an alarm, immediately notifying you to the event. The device supports PoE technology for a minimum of wires during setup, and the camera is IP66-rated for use outdoors. - 1/3" progressive-scan CMOS sensor for high-quality video
- Up to 4MP resolution at 20 fps with MJPEG, H.264, and H.264+ video compression
- EXIR high-performance LEDs provide up to 164' of night vision for use at all times
- 120 dB wide dynamic range allows you to capture clear images in ambient lighting
- 3D DNR filters noise from the image, even in low light conditions
- Image settings include rotate mode, saturation, brightness, contrast, and sharpness
- Motion detection, intrusion detection, line crossing, and a network disconnect will all trigger an alarm
- Dual streaming, password protection, and IP address filtering provide network security
- ONVIF-compliant (Profile S, G) for compatibility with a wide range of surveillance devices
- 12 VDC ±10% and PoE (802.3af) power supplies for versatile and easy installation
- IP66-rated enclosure for use outdoors and in inclement weather
UPC: 813908022643 In the Box Hikvision 4MP Outdoor Bullet Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 4MP Outdoor Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2T42WD Specs | | | Image Sensor | 1/3" progressive-scan CMOS | | Minimum Illumination | Color: 0.01 lux @ f/1.2 (AGC on)
B/W: 0.028 lux @ f/2.0 (AGC on)
0 lux with IR on | | Shutter Time | 1/3 to 1/100,000 seconds | | Slow Shutter | Supported | | Lens | 6mm, f/2.0 | | Lens Mount | M12 | | Day & Night | IR cut filter with auto switch | | IR Range | Up to 164' (50 m) | | Wide Dynamic Range | 120 dB | | | | Video Compression | H.264 / MJPEG / H.264+ | | H.264 Profile | Main profile | | Bit Rate | 32 Kb/s to 16 Mb/s | | | | Maximum Image Resolution | 2688 x 1520 | | Frame Rate | 50 Hz: 2688 x 1520 @ 20 fps, 1920 x 1080, 1280 x 720 @ 25 fps
60 Hz: 2688 x 1520 @ 20 fps, 1920 x 1080, 1280 x 720 @ 30 fps | | Image Enhancement | BLC / 3D DNR / ROI | | Image Settings | Rotate mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser | | Day/Night Switching | Auto / Schedule / Triggered by alarm-in | | | | Network Storage | NAS (Support NFS, SMB / CIFS) | | Alarm Trigger | Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Security | Flash-prevention, Dual stream, Heartbeat, Mirror, Password protection, Privacy mask, Watermark, IP address filtering, Anonymous access | | System Compatibility | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI | | | | Communication Interface | 1 x RJ45 10M/100M Ethernet | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Operating Humidity | 95% or less (non-condensing) | | Power Supply | 12 VDC ±10%, PoE (802.3af) | | Power Consumption | 7.5 W | | Ingress Protection | IP66 | | Dimensions | 11.8 x 3.4 x 3.3" (30.0 x 8.6 x 8.4 cm) | | Weight | 2.6 lb (1.2 kg) | | | | Package Weight | 3.21 lb | | Box Dimensions (LxWxH) | 15.15 x 6.45 x 6.3" |
