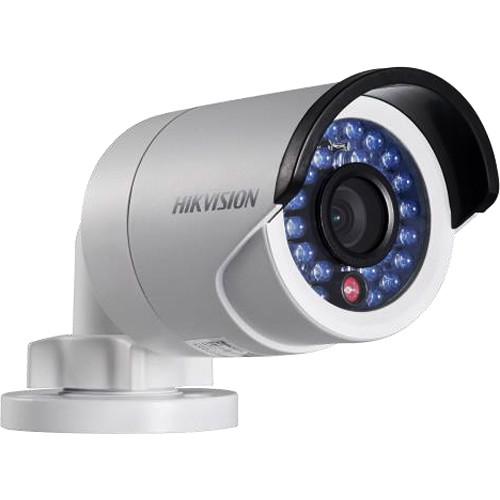

User Manual for Hikvision 4MP Outdoor Mini Bullet Camera Click to enlarge the picture
Contents of the user manual for the Hikvision 4MP Outdoor Mini Bullet Camera
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision 4MP Outdoor Mini Bullet Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The 4MP Outdoor Mini Bullet Camera from Hikvision features a 1/3" progressive-scan CMOS sensor for up to 2688 x 1520 resolution at 20 fps. The camera can also achieve 1080p and 720p resolutions at 30 fps for HD video in real time. Equipped with a 6mm fixed lens, the camera can capture a 55° horizontal field of view for a wide coverage area. Additionally, the camera's lens is surrounded by IR LEDs, providing up to 98' of night vision in complete darkness. Image enhancements such as WDR, backlight compensation, and 3D DNR allow you to capture clear images in ambient light for use in a variety of environments. You can easily pan, tilt, and rotate the camera during installation, so that you can choose a specific area you would like to view, and PoE technology allows you to run just one wire for both data and power, for a simple and easy setup. This device is ONVIF-compliant for compatibility with a wide range of surveillance devices, and it is IP66-rated for weatherproof protection. - 1/3" progressive-scan CMOS sensor for up to 2688 x 1520 video resolution
- Dual video streaming for maximizing bandwidth usage
- 6mm fixed focal lens provides a 55° horizontal field of view
- Wide dynamic range allows you to capture clear images in ambient lighting
- 3D DNR effectively filters noise from the image, even in low-light scenarios
- Backlight Compensation and saturation, brightness, contrast, and sharpness image settings
- IR LEDs provide up to 98.4' of night vision for use at all times
- 3-axis adjustment for choosing your desired view area during installation
- Saturation, brightness, contrast, and sharpness image settings
- Motion detection, tampering alarm, network disconnect, and storage exception alarm triggers
- Security measures including one-key rest, flash-prevention, and password protection
- ONVIF-compliant for compatibility with a wide range of surveillance devices
- IP66 weather-proof housing protects the camera from inclement weather for use outdoors
- Metal housing and mounting bracket for strength and durability
- Mobile Monitoring via EZVIZ P2P or iVMS-4500
- Can be powered via 12 VDC or standard PoE for convenience
UPC: 813908022605 In the Box Hikvision 4MP Outdoor Mini Bullet Camera Limited 3-Year Warranty Brochure PDF 768.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 4MP Outdoor Mini Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision IP66 Specs | | | Image Sensor | 1/3" progressive-scan CMOS | | Minimum Illumination | 0.01 lux @ f/1.2 (AGC On)
0 lux with IR | | Shutter Time | 1/3 to 1/10,000 seconds | | Lens | 6mm @ f/2.0 | | Angle of View | 55° | | Lens Mount | M12 | | Day & Night | IR cut filter with auto switch | | IR Range | Up to 98' (30 m) | | Digital Noise Reduction | 3D DNR | | Wide Dynamic Range | 120 dB | | | | Video Compression | H.264 Main Profile / MJPEG | | Bit Rate | 256 Kbps to 16 Mbps | | Dual Streaming | Supported | | | | Maximum Image Resolution | 2688 x 1520 | | Frame Rate | 50 Hz: 20 fps (2688 x 1520), 25 fps (1920 x 1080), 25 fps (1280 x 720)
60 Hz: 20 fps (2688 x 1520), 30 fps (1920 x 1080), 30 fps (1280 x 720) | | Image Settings | Rotate mode, Saturation, Brightness, Contrast, Sharpness adjustable through client software or web browser | | Back Light Compensation | Yes, zone configurable | | ROI | Supported | | | | Network Storage | NAS (support NFS, SMB/CIFS), ANR | | Alarm Trigger | Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception | | Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Security | One-key reset, Flash-prevention, Dual stream, Heartbeat, Mirror, Password protection, Privacy mask, Watermark, IP address filtering, Anonymous access | | Interoperability | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI | | | | Communication | 1 x RJ45 10/100M Ethernet interface | | | | Operating Conditions | -22 to 140°F (-30 to 60°C) | | Humidity | 95% or less (non-condensing) | | Power Supply | 12 VDC ±10%, PoE (802.3af) | | Power Consumption | Maximum: 5 W | | Ingress protection | IP66 weather proof rating | | Dimensions | 2.4 x 3.0 x 5.5" / 6.1 x 7.6 x 14.0 cm | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 6.9 x 4.4 x 4.1" |
