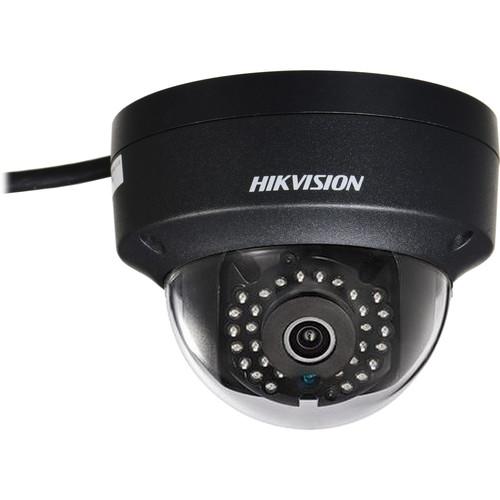

User Manual for Hikvision 4MP Outdoor Network Dome Camera with Night Vision and 2.8mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision 4MP Outdoor Network Dome Camera
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision 4MP Outdoor Network Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The black 4MP Outdoor Network Dome Camera with Night Vision and 2.8mm Lens from Hikvision features a 1/3" progressive scan CMOS sensor and a 2.8mm fixed lens to capture 2688 x 1520 resolution video at up to 20 fps. IR LEDs and an IR cut filter allow the camera to produce clear images in complete darkness up to 98' away. The camera supports H.264/MJPEG/H.264+ compression formats with simultaneous dual streaming to optimize network bandwidth. There are inputs and outputs for audio components as well as an alarm system, and an RJ45 port provides Ethernet connectivity and PoE functionality. Wide Dynamic Range up to 120 dB allows the camera to capture images under varied lighting conditions. The microSD slot supports up to 128GB memory cards (available separately) for local storage. The camera is housed in an IP67- and IK10-rated enclosure for protection from dust, water, and impact, making it suitable for outdoor use. - Captures 4MP video at up to 20 fps
- IR LEDs for night vision up to 98'
- 2.8mm lens has a 106° field of view
- WDR up to 120 dB for accurate images in varying lighting conditions
- IP67-rated enclosure provides protection against dust and water
- IK10-rated enclosure for impact protection and vandal resistance
UPC: 813908027488 In the Box Hikvision 4MP Outdoor Network Dome Camera with Night Vision and 2.8mm Lens (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 4MP Outdoor Network Dome Camera with Night Vision and 2.8mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2142FWD-ISB-2.8MM Specs | | | Image Sensor | 4 MP 1/3" progressive scan CMOS sensor | | Minimum Illumination | 0.028 lux at f/2.0 with AGC ON
0 lux with IR | | Shutter Speed | 1/3 to 1/10,000 sec | | Lens | 2.8mm | | Field of View | 106° | | Lens Mount | M12 | | Day/Night | IR cut filter with auto switch | | Digital Noise Reduction | 3D-DNR | | Wide Dynamic Range | Up to 120 dB | | Angle Adjustment | Pan: 0 to 355°
Tilt: 0 to 75°
Rotation: 0 to 355° | | | | Video Compression | H.264, MJPEG | | H.264 Profile | Main | | Video Bit Rate | 32 kbps to 16 Mbps | | Dual Stream | Supported | | Audio Compression | G.711, G.722.1, G.726, MP2L2 | | | | Maximum Resolution | 2688 x 1520 | | Maximum Frame Rate | 20 fps at 2688 x 1520
30 fps at 1920 x 1080, 1280 x 720 | | Image Settings | Compression, color, saturation, brightness, contrast, sharpness, rotate mode, privacy mask | | BLC | Zone configurable | | ROI | Supported | | | | Network Storage | NAS (supported NFS, SMB/CIFS), ANR | | Security | User authentication, watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask | | Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Standard | ONVIF (Profile S and G), PSIA, CGI, ISAP | | | | Communication | RJ45 10M/100M Ethernet port | | microSD Support | Up to 128 GB (microSD/SDHC/SDXC, available separately) | | Alarm | 1 x alarm input/output | | Audio Input | 1 channel (2.0 to 2.4 V p-p, 1 kOhm) | | Audio Output | 1 channel (Line level, 600 Ohms) | | | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Operating Humidity | <95% non-condensing | | Power Supply | 12 VDC ±10%, PoE (802.3af Class 3) | | Maximum Power Consumption | 5 W | | IR Range | Up to 98.4' (30 m) | | Material | Base and Top Cover: Metal | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions | 4.4 x 3.2" (111 x 82 mm) | | Weight | 1.1 lb (0.5 kg) | | | | Package Weight | 1.855 lb | | Box Dimensions (LxWxH) | 5.4 x 5.35 x 4.35" |
