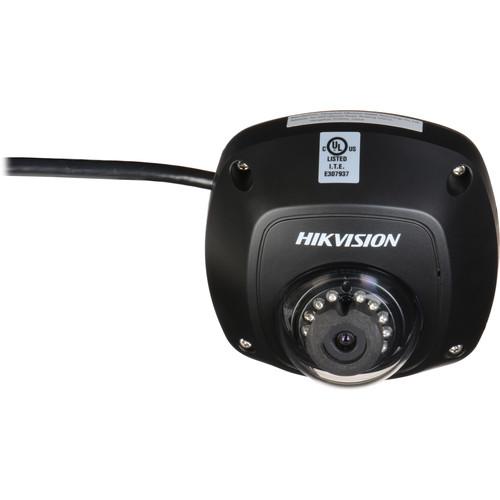

User Manual for Hikvision 4MP Outdoor Network Mini Dome Camera with Night Vision and 6mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision 4MP Outdoor Network Mini Dome
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision 4MP Outdoor Network Mini Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The black 4MP Outdoor Network Mini Dome Camera with Night Vision and 6mm Lens from Hikvision utilizes a 1/3" progressive scan CMOS sensor and a 6mm fixed lens to capture images at a resolution of 2688 x 1520. It supports H.264 and MJPEG compression with simultaneous dual streaming for minimizing bandwidth and storage requirements without compromising video quality. The camera features motion detection, 3D-DNR (Digital Noise Reduction), and BLC (Backlight Compensation). It comes with an IP67- and IK08-rated housing that provides protection from ingress of dust and moisture, as well as impact, ensuring uninterrupted surveillance in exposed locations. - 4MP 1/3" progressive scan CMOS sensor
- 2688 x 1520 resolution video at up to 20 fps
- 120 dB WDR (Wide Dynamic Range)
- Built-in microphone, audio output, alarm input/output
- IP67-rated housing for outdoor use
- IK08-rated impact protection
UPC: 813908028232 In the Box Hikvision 4MP Outdoor Network Mini Dome Camera with Night Vision and 6mm Lens (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 4MP Outdoor Network Mini Dome Camera with Night Vision and 6mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2542FWD-ISB-6MM Specs | | | Image Sensor | 1/3" 4 MP progressive scan CMOS | | Minimum Illumination | 0.01 lux at f/1.2 with AGC ON
0 lux with IR | | Shutter Time | 1/3 to 1/10,000 sec | | Lens | 6mm at f/2.0 | | Field of View | 55.4° | | Lens Mount | M12 | | Day & Night | IR cut filter with auto switch | | Wide Dynamic Range | 120 dB | | Angle Adjustment | Pan: -30 to 30°
Tilt: 0 to 75°
Rotation: 0 to 360° | | Digital Noise Reduction | 3D-DNR | | | | Video Compression | H.264, MJPEG | | Video Bit Rate | 32 kb/s to 16 Mb/s | | Audio Compression | G.711, G.722.1, G.726, MP2L2 | | Audio Bit Rate | 64 kb/s (G.711), 16 kb/s (G.722.1), 16 kb/s (G.726), 32 to 128 kb/s (MP2L2) | | | | Maximum Image Resolution | 2688 x 1520 | | Frame Rate | 50 Hz: 20 fps at 2688 x 1520, 25 fps at 1920 x 1080, 25 fps x 1280 x 720
60 Hz: 20 fps at 2688 x 1520, 30 fps at 1920 x 1080, 30 fps x 1280 x 720 | | Image Settings | Rotate Mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser | | Backlight Compensation | Zone configurable | | ROI | Supported | | | | Network Storage | NAS (Support NFS, SMB/CIFS), ANR | | Detection | Intrusion detection, line crossing detection, motion detection, dynamic analysis | | Alarm Trigger | Tampering alarm, network disconnect, IP address conflict, storage exception | | Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Standard | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI | | | | Communication | RJ45 10/100 Mb/s Ethernet | | Onboard Storage | Built-in microSD/SDHC/SDXC card slot, up to 128 GB (available separately) | | Alarm | 1 x alarm input/output | | Audio Interface | Built-in microphone, 1 x audio output | | Reset | Yes | | | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Humidity | <95% non-condensing | | Power Supply | 12 VDC ±10%, PoE 802.3af Class 3 | | Maximum Power Consumption | 5 W | | IR Range | Up to 33' (10 m) | | IP Rating | IP67 | | IK Rating | IK08
IEC60068-275Eh, 20 joules EN50102 | | Dimensions | 3.9 x 4 x 2" (99 x 97 x 53 mm) | | Weight | 1.3 lb (0.6 kg) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 10.0 x 6.3 x 4.0" |
