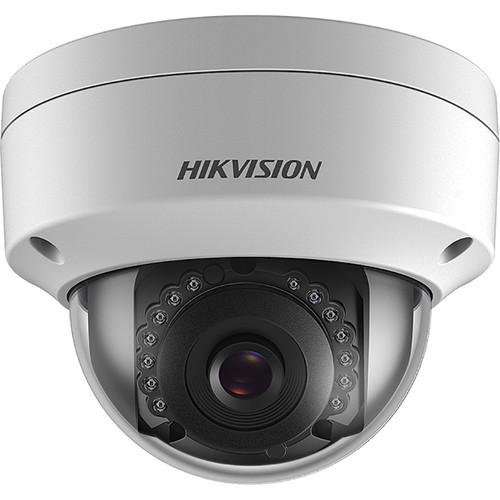

User Manual for Hikvision 5MP Outdoor Vandal-Resistant Outdoor Network Dome Camera with 8mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision 5MP Outdoor Vandal-Resistant Outdoor Network
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision 5MP Outdoor Vandal-Resistant Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Monitor an outdoor area with the 5MP Outdoor Vandal-Resistant Outdoor Network Dome Camera from Hikvision. It can capture 2560 x 1920 resolution video at up to 20 fps for smooth recording. Its 8mm lens has a 33° field of view and is surrounded by IR LEDs for up to 100' of night vision. Wide dynamic range and 3D digital noise reduction help the camera produce accurate images in varying lighting conditions.
Three-axis angle adjustments allow you to position the camera in the needed direction. A microSD slot supports up to a 128GB microSD card (available separately) for local storage. The camera is housed in an IP67- and IK10-rated enclosure for protection against dust, water, and impact, making it suitable for use outdoors and in high-risk areas. - 1/2.9" progressive scan CMOS sensor for 5MP video
- 2560 x 1920 resolution video at up to 20 fps
- EXIR LEDs provide night vision up to 100' for 24/7 monitoring
- 3-axis pan, tilt, and rotate angle adjustments for multiple viewing angles
- microSD slot supports up to 128GB of storage for edge recording
- IP67- and IK10-rated enclosure for outdoor use and for use in in high-risk areas
UPC: 842571105988 In the Box Hikvision 5MP Outdoor Vandal-Resistant Outdoor Network Dome Camera with 8mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 5MP Outdoor Vandal-Resistant Outdoor Network Dome Camera with 8mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2155FWD-I 8MM Specs | | | Image Sensor | 1/2.9" progressive scan CMOS sensor | | Minimum Illumination | 0.027 lux at f/2.0 with AGC ON
0 lux with IR LEDs | | Shutter Time | 1/3 to 1/100,000 sec | | Slow Shutter | Supported | | Lens | 8mm | | Field of View | 33° | | Lens Mount | M12 | | Iris | f/1.6 | | Angle Adjustment | Pan: 0 to 355°
Tilt: 0 to 75°
Rotation: 0 to 355° | | Digital Noise Reduction | 3D-DNR | | Wide Dynamic Range | Up to 120 dB | | Day/Night | IR cut filter | | IR LED Range | Up to 100' (30 m) | | | | Video Compression | Main Stream: H.265+, H.265, H.264+, H.264
Sub Stream: H.265+, H.265, H.264+, H.264, MJPEG
Third Stream: H.265+, H.265, H.264+, H.264 | | Compression Type | H.265: Main profile
H.264: Main and high profile | | Video Bit Rate | 32 kbps to 16 Mbps | | | | Maximum Image Resolution | 2560 x 1920 | | Frame Rate | Main Stream: 20 fps at 2560 x 1920, 30 fps at 2560 x 1440, 2048 x 1536, 1920 x 1080, 1280 x 720
Sub-Stream: 30 fps at 640 x 360, 352 x 240
Third Stream: 30 fps at 1280 x 720, 640 x 360, 352 x 240 | | Image Enhancement | BLC, 3D-DNR | | Image Settings | Rotate mode
Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software | | Region of Interest | Separate support for one fixed region in main and sub streams | | Day/Night | Auto, scheduled | | | | Network Storage | Support for microSD/SDHC/SDXC card up to 128 GB (available separately), NAS (NFS,SMB/CIFS), ANR | | Alarm Trigger | Motion detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error | | Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 | | System Compatibility | ONVIF Profile S and G, PSIA, CGI, ISAPI | | General | One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter | | | | Communication | 1 x RJ45 10M/100M Ethernet interface | | | | Behavior Analysis | Line crossing detection, intrusion detection, unattended baggage detection, object removal detection | | Detection | Line Crossing Detection: Cross a predefined virtual line, up to 1 pre-defined virtual line supported
Intrusion Detection: Enter and loiter in a predefined virtual region, up to 1 pre-defined virtual region supported
Object Removal Detection: Objects removed from a predefined region, such as exhibits on display
Unattended Baggage Detection: Objects left over in the predefined region such as baggage, purses, and dangerous materials
Face Detection: Human face appears in the image can be detected and trigger linkage method | | | | Operating Conditions | -22 to 140°F (-30 to 60°C) | | Humidity | ≤95% non-condensing | | Power Supply | 12 VDC ±25%: 6.2 W
PoE 802.3af Class 3: 9 W | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions | 4.4 x 3.2" (111 x 82.4 mm) | | Weight | 1.1 lb (0.5 kg) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 5.4 x 5.4 x 4.5" |
