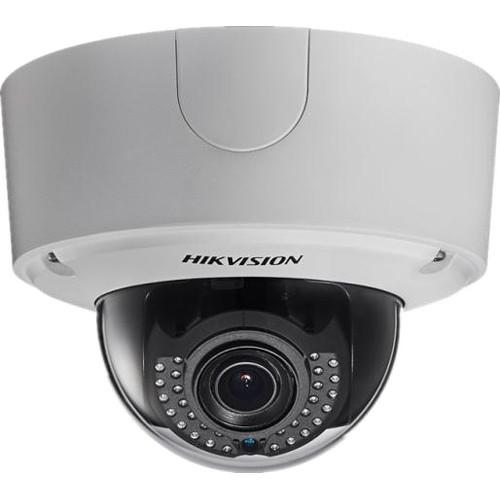

User Manual for Hikvision 6MP Day Night IR Outdoor Dome Camera with 2.8-12mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the Hikvision 6MP Day Night IR Outdoor
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision 6MP Day Night IR Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The 6MP Day/Night IR Outdoor Dome Camera from Hikvision features a 1/1.8'' progressive-scan CMOS sensor and a 2.8-12mm varifocal lens. The camera offers a maximum resolution of 3072 x 2048 and a maximum frame rate of 30 fps. Wide dynamic range, 3D DNR, and a defog function all assist in capturing clear images in a wide range of environments. H.264 and MJPEG formats maximize bandwidth and storage usage without compromising video quality, and a built-in microSD slot supports up to 128GB of edge storage. PoE technology allows you to power the camera using Ethernet cables for a minimum amount of wires during installation. ONVIF-compliance provides a wide range of compatibility for easily pairing the camera with an NVR or other device. - Smart Functions
-
- Supports 6 behavior analyses; 4 exception detections, 1 recognition, and 1 statistic function
- Supports edge recording and dual-VCA
- Supports low bit rate; low latency; ROI enhance encoding
- Camera and Image
-
- Supports 3072 x 2048 at 24 fps
- Supports image distortion correction
- Supports rotate mode, suitable for environment as corridor
- Supports regional cropping, details can be seen with low bandwidth
- Code smoothness setting for different requirements of image quality and fluency
- Support H.264/MJPEG/MPEG4 video compression and multi-level video quality configuration
- Supports Basic/Main/High Profile H.264 encoding complexity
- Multiple OSD: Black & white self-adaptive; custom
- Supports D-WDR
- Supports defog, BLC, HLC, EIS
- Infrared
-
- Maximum IR distance of up to 131'
- Smart IR prevents over-exposure when object is close to the camera
- System
-
- Supports ONVIF (profile S/profile G), CGI, PSIA, ISAPI protocol
- Supports three streams, and 20 channels live view at the same time
- Anti-thunder, anti-surge, anti-static protection level
- Smart heater for starting in extra low temperatures
- IP66 & IK10 protection level
- Interface
-
- Supports standard 128 GB microSD/SDHC/SDXC card
- Supports 10M/100M Ethernet port
- Supports audio I/O and dual channel stereo audio
- Supports alarm I/O
- Supports CVBS analog output (4CIF resolution)
- Security
-
- Supports three-level user authentication management, user and password authorization, IP address filtering and anonymous access
- Supports security certificate as HTTPS, SSH; support creating certificate
- Basic and digest authentication is supportable in IE configuration
- Locks the user account in case of multiple invalid login attempts
UPC: 813908020045 In the Box Hikvision 6MP Day/Night IR Outdoor Dome Camera with 2.8-12mm Varifocal Lens Limited 3-Year Warranty Brochure PDF 716.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 6MP Day Night IR Outdoor Dome Camera with 2.8-12mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD4565F-IZH Specs | | | Sensor | 1/1.8'' | | Minimum Illumination | 0.01 lux @ (f/1.2,AGC On), 0.014 lux @ (f/1.4,AGC On), 0 lux with IR | | Shutter Speed | 1 to 1/100,000 sec | | Slow Shutter | Supported | | Lens | 2.8-12mm @ f/1.4
Angle of View: 94.5° to 30.5° | | Auto-Iris Lens Support | DC drive | | Day & Night | IR cut filter with auto switch | | Wide Dynamic Range | D-WDR | | | | Video | H.264 / MPEG4 / MJPEG | | H.264 Profile | Baseline / Main / High | | Video Bit Rate | 32 kbps to 16 Mbps | | Audio | G.711 / G.722.1 / G.726 / MP2L2 | | Audio Bit Rate | 64 kbps (G.711) / 16 kbps (G.722.1) / 16 kbps (G.726) / 32 to 128 kbps (MP2L2) | | | | Maximum Resolution | 3072 x 2048 | | Frame Rate | 50 Hz: 24 fps @ 3072 × 2048, 25 fps @ 3072 × 1728, 2560 × 2048, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 x 720
60 Hz: 24 fps @ 3072 × 2048, 30 fps @ 3072 × 1728, 2560 × 2048, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 x 720 | | Streaming | Third Stream: Independent with main stream and sub stream
Up to 50/60 Hz: 10 fps @ 4CIF | | Image Enhancement | BLC / HLC / 3D DNR / ROI / Defog | | Image Settings | Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or Web browser | | Distortion | Supports distortion correction | | Cropping | Supports regional cropping | | Day/Night Switching | Auto / Schedule / Triggered by alarm in | | Overlay | Logo picture can be overlaid on video with 128 x 128 24-bit bmp format | | | | Storage | NAS (supports NFS, SMB/CIFS), ANR | | Alarm Trigger | Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception | | Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Security | User authentication, watermark, IP address filtering, anonymous access | | Standard | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI | | | | Audio | 1-channel 3.5 mm audio in (Mic in/Line in) / out interface
Built-in microphone | | Communication Interface | 1 x RJ45 10M/100M Ethernet port, 1 x RS-485 interface | | Alarm | 1 x input, 1 x output (up to 24 VDC, 1 A or 110 VAC, 500 mA) | | Video Output | 1 Vpp composite output (75 Ω/BNC) | | On-board Storage | Built-in microSD/SDHC/SDXC slot; up to 128 GB | | Reset Button | Yes | | | | Filtering | Supports environment noise filtering | | Audio I/O | Support dual audio track, stereo | | Audio Sampling Rate | 16 / 32 / 44.1 / 48 kHz | | | | Functions | Behavior Analysis: Line crossing detection, intrusion detection, region entrance, region exiting, unattended baggage, object removal
Exception Detections: Scene change detection, sudden audio increase/decrease detection, audio loss detection, defocus detection
Recognition: Face detection recognition
Statistics: Object counting (entrance and exit object number is accounted and showed on screen in real time) | | IP Rating | IP66 | | IR Distance | 131' (40 m) | | Operating Conditions | Temperature: -40 to 140°F (-40 to 60°C)
Humidity: 95% or less (non-condensing) | | Power Supply | 24 VAC ± 10%, 12 VDC ± 10%, PoE (802.3at) | | Power Consumption | 17 W | | Dimensions | 6.5 × 5.0" (16.5 × 12.7 cm) | | Weight | 4.63 lb (2.10 kg) | | | | Package Weight | 4.05 lb | | Box Dimensions (LxWxH) | 10.0 x 8.5 x 7.5" |
