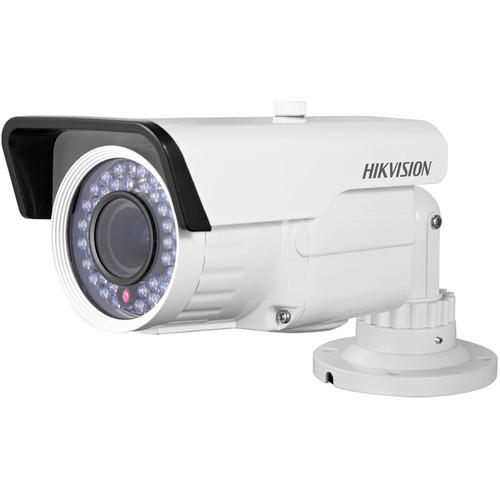

User Manual for Hikvision 720 TVL PICADIS Varifocal IR Bullet Camera Click to enlarge the picture
Contents of the user manual for the Hikvision 720 TVL PICADIS Varifocal IR
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision 720 TVL PICADIS Varifocal IR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description With a waterproof and dustproof enclosure and a wide operating temperature range, the 720 TVL PICADIS Varifocal IR Bullet Camera from Hikvision is an ideal outdoor camera. Featuring a 1/3" image sensor, footage is provided in clear 720 TVL resolution, while the IR LEDs provide night vision for objects up to 130' away. The IR cut filter automatically adjusts to day or night light environments, and, together with backlight compensation, automatic white balance, and auto gain control settings, ensures your camera provides high video image output no matter what time of day it is. - 1/3" PICADIS image sensor creates 720 TVL resolution images
- IR LEDs allow for night vision for objects up to 130' away, even in complete darkness
- Varifocal lens can be adjusted for different zoom levels
- Adjustable white balance creates accurate color depiction
- Auto gain control adjusts for maintaining strong illumination signals
- True Day/Night and backlight compensation allow for viewable images even in environments with changing light levels
- Large operating temperature range for a variety of indoor settings
- IP66-rated enclosure is waterproof and dustproof
UPC: 816783015755 In the Box Hikvision 720 TVL PICADIS Varifocal IR Bullet Camera Limited 3-Year Warranty Brochure PDF 956kbebeedrvxeywxtfuw Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 720 TVL PICADIS Varifocal IR Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE15C2N-VFIR3 Specs | Image Sensor | 1/3" PICADIS | | Lens | 2.8 to 12mm varifocal | | Angle of View | 27.2 to 92° | | IR Range | Up to 130.0' / 39.6 m | | Signal System | NTSC | | Horizontal Resolution | 720 TVL | | Effective Pixels (H x V) | 1280 x 960 | | Minimum Illumination | 0.14 lux @ f/1.4 AGC on, 0 lux with IR | | Shutter Speed | 1/30 to 1/15,000 sec | | Angle Adjustment | Pan: 0 to 360°
Tilt: 0 to 90°
Rotation: 0 to 360° | | Day/Night Operation | IR cut filter with auto switch | | Synchronization | Internal | | Video Output | 1 Vpp composite, 75 ohms/BNC | | S/N Ratio | >52 dB | | BLC | Yes | | AGC | Yes | | Power Supply | 12 VDC ±10% | | Power Consumption | 4 W maximum
6.5 W maximum with IR cut filter | | Temperature & Humidity | -40 to 140°F / -40 to 60°C, 90% or less humidity (non-condensing) | | Dimensions | 3.5 x 3.5 x 10.2" / 8.8 x 8.9 x 25.8 cm | | Weight | 2.97 lb / 1.35 kg | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 12.2 x 5.6 x 5.4" |
