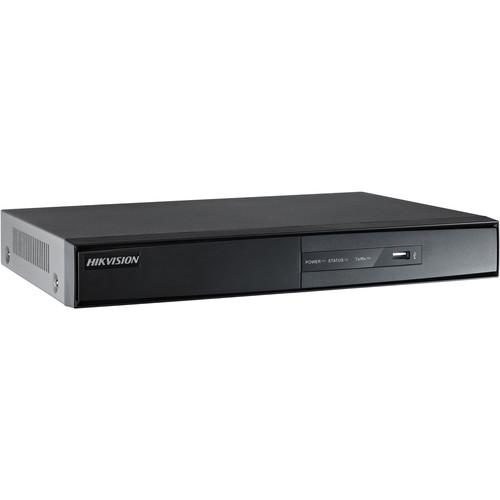

User Manual for Hikvision 8-Channel 720p DVR with 1TB HDD Click to enlarge the picture
Contents of the user manual for the Hikvision 8-Channel 720p DVR with 1TB
- Product category: Digital Video Recorders (DVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Digital Video Recorders (DVRs)
|
User manual for the Hikvision 8-Channel 720p DVR with 1TB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The 8-Channel 720p DVR with 1 TB HDD from Hikvision can be used to support up to 8 analog cameras. Utilizing H.264 and dual-stream video compression, the DVR is designed to receive and transfer data at a convenient pace. HDMI and VGA outputs allow footage to be viewed on a connected monitor with playback resolutions of up to 1080p. With an internal capacity of 1 SATA interface for up to 1TB capacity, footage can be stored to the device directly, or transferred to external devices for storing larger libraries. With two USB 2.0 ports and RCA connectors, a keyboard, mouse, microphone, or other compatible devices can be connected to the DVR to create a full viewing station. - H.264 and dual-stream compression
- Supports both HD-TVI and analog cameras with adaptive access
- Full-channel 720p resolution real-time recording
- HDMI and VGA output at up to 1920 x 1080 resolution
- Up to 8 channels synchronous playback
- Long transmission distance over coax cable
UPC: 816783018770 In the Box Hikvision 8-Channel 720p DVR with 1TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 8-Channel 720p DVR with 1TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-7200 Specs | Compression | Video: H.264
Audio: G.711u | | Input Channels | Video: 8
Audio: 8 | | Output Resolutions | HDMI/VGA:
1080p: 1920 x 1080, 60 Hz
SXGA: 1280 x 1024, 60 Hz
720p: 1280 x 720, 60 Hz
XGA: 1024 x 768, 60 Hz | | Frame Rate | Real Time:
Main Stream: 1/16 fps
Sub-Stream: 1/16 fps | | Bit Rate | Video: 32 Kb/s, 6 Mb/s
Audio: 64 kb/s | | Stream Type | Video, Video & Audio | | Dual Streaming | Support | | Synchronous Playback | 8 channels | | Playback Resolution | 1080p, 720p, VGA, WD1, 4CIF, CIF, QVGA, QCIF | | Encoding Resolutions | Main stream: 1080p (non-real-time), 720p; VGA; WD1; 4CIF; CIF
Sub-stream: WD1 (non-real-time); 4CIF (non-real-time); CIF; QCIF; QVGA | | Hard Disk | Capacity: 1 TB
SATA: 1 interface | | Supported Camera Types | 720p25, 720p30, 720p50, 720p60, 1080p25, 1080p30, CVBS | | Network Protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS | | Remote Network Connections | 128 | | Connectors | 8 x BNC, video input
4 x RCA, audio input
8 x Alarm, input
1 x RCA, audio output
1 x VGA, output
1 x HDMI, output
4 x Alarm, output
2 x USB 2.0, port
1 x RJ45, 10/100M adaptive Ethernet port
1 x RS-485, half-duplex port
1 x Power jack, 12 VDC power input | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Humidity | 10 - 90% | | Power | Supply: 12 VDC
Consumption: < 20 W | | Rackmount Space | 1 RU | | Dimensions | 12.4 x 9.5 x 1.8" (315 x 242 x 45 mm) | | Weight | 3.3 lb (1.5 kg) | | | | Package Weight | 7.965 lb | | Box Dimensions (LxWxH) | 17.0 x 14.95 x 5.35" |
