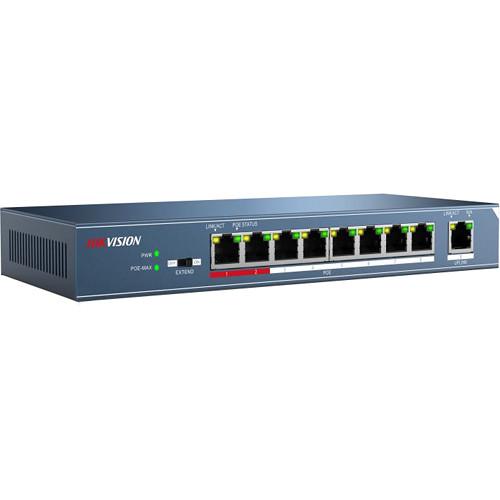

User Manual for Hikvision 8-Port 10 100 Mb s PoE-Compliant Unmanaged Network Switch Click to enlarge the picture
Contents of the user manual for the Hikvision 8-Port 10 100 Mb s
- Product category: Network Switches, Bridges & Hubs Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Network Switches, Bridges & Hubs
|
User manual for the Hikvision 8-Port 10 100 Mb s contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The 8-Port 10/100 Mb/s PoE-Compliant Unmanaged Network Switch from Hikvision gives you the ability to deploy devices on your network that do not have access to power lines or outlets. By utilizing PoE (Power Over Ethernet), both power and data is transmitted over the connection. With up to 30W per port, you can network and power devices such as IP cameras, VoIP phones, IP telephones, wireless access points, and more.
This switch supports a total switching fabric bandwidth of up to 1.8 Gb/s, and a 1.25Mb RAM data buffer helps decrease latency to accommodate heavy traffic. The sturdy metal enclosure features plug-and-play installation and 4kV of built-in surge protection. - Additional Features
- IEEE 802.3at/af PoE-compliant
10/100 Mb/s Auto-MDIX Ports
Total PoE Power Budget of 123W
IEEE 802.3x Flow Control Support
Support for 4000 MAC address entries UPC: 813908029529 In the Box Hikvision 8-Port 10/100 Mb/s PoE-Compliant Unmanaged Network Switch Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 8-Port 10 100 Mb s PoE-Compliant Unmanaged Network Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-3E0109P-E Specs | Ports | LAN: 8 x 10/100 Mb/s
WAN: 1 x 100 Mb/s | | Network Protocols | IEEE 802.3, 802.3u, 802.3x, 802.3af, and 802.3at | | Performance | Switching Capacity: 1.8 Gb/s
Forwarding Rate (Max.): 1.34 Mpps
High Priority Ports: Ports 1-2
Forwarding Mode: Store-and-Forward
MAC Address Table: 4000
Flow Control: IEEE 802.3x Full Duplex | | Power Over Ethernet | PoE Standard: 8 ports IEEE 802.3af (up to 15.4 W per port), or 4 ports IEEE 802.3at (up to 30 W per port)
PoE Power Budget: 123 W
Working Mode (Extend On): 820.2' / 250 m, 10 Mb/s, CAT 5e
Working Mode (Extend Off): 328.1' / 100 m | | General | Power Supply: 51 VDC, 2.5 A
Power Consumption: ≤ 127 W
Surge Protection: 4 kV
Working Temperature: 32 to 104°F / 0 to 40°C
Working Humidity: 10% to 90% (non-condensing)
Storage Temperature: -40 to 158°F / -40 to 70°C
Storage Humidity: 5% to 90% (non-condensing)
Weight: 20.1 oz / 570.1 g
Dimensions (WxDxH): 9.3 x 4.1 x 1.1" / 23.5 x 10.3 x 2.7 cm | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 12.1 x 8.4 x 3.2" |
