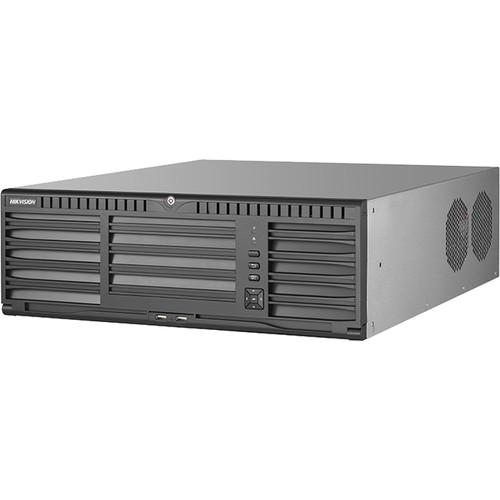

User Manual for Hikvision 96064NI-I16 64-Channel 12MP NVR Click to enlarge the picture
Contents of the user manual for the Hikvision 96064NI-I16 64-Channel 12MP NVR
- Product category: Network Video Recorders (NVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Network Video Recorders (NVRs)
|
User manual for the Hikvision 96064NI-I16 64-Channel 12MP NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Stream and record up to 64 channels of video with the 3 RU 96064NI-I16 NVR from Hikvision at resolutions up to 12MP. Equipped with 16 SATA ports, each of which can accommodate an HDD up to 10TB, this NVR supports up to 160TB of internal storage (HDDs available separately). External storage options include PCs via internet connection, network servers, eSATA, and USB storage devices. H.265, H.265+, H.264, H.264+, MPEG4, and MJPEG compression help optimize network bandwidth use while ensuring high-quality recording and playback.
The NVR enables simultaneous playback of up to 16 channels at up to 4096 x 2160 resolution via its HDMI ports and up to 1920 x 1080 via its VGA port. Up to 64 channels can be recorded at resolutions between 12MP and QCIF with a maximum combined transfer speed of 512 Mb/s. There are four RJ45 10/100/1000 Mb/s self-adaptive Ethernet interfaces, as well as RS-232, RS-485, and serial keyboard interfaces. - Logical and visualized GUI design
- Pluggable HDD design provides for convenient installation and maintenance
- Professional embedded hardware and software
- Supports redundant power supply to improve the system stability
- Uses ANR technology to enhance storage reliability when the network disconnected
- Supports HDD hot swap with RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10 storage scheme configurable
- Normal or hot spare working mode is configurable to constitute an N+1 hot spare system
- Compatible with third-party network cameras
- Support live view, storage, and playback of the connected camera at up to 12MP resolution
- H.265+ compression effectively reduces the storage space by up to 75%
- HDMI and VGA1 simultaneous outputs by default, asynchronous outputs configurable
- Supports decoding up to 20 channels at 1080p resolution
- HDD data smart release when disk is full to extend the storage period
- Supports HDD quota and group modes
- Normal/Important/Custom video playback
- Important files management
- Centralized management of IP cameras is supported, including configuration, information import/export, real-time information display, two-way audio, and upgrade
- Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
- VCA detection alarm is supported
- VCA search for face detection, behavior analysis, people counting, and heat map
- Supports starting record with one key
- Realizes instant playback for assigned channel during multi-channel display mode
- Smart search for the selected area in the video, and smart playback to improve playback efficiency
UPC: 842571110395 In the Box Hikvision 96064NI-I16 64-Channel 12MP NVR (No HDD, 3 RU) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision 96064NI-I16 64-Channel 12MP NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-96064NI-I16 Specs | IP Video Inputs | 64 channels | | Bandwidth | Incoming: 512 Mb/s
Outgoing: 512 Mb/s, or 400 Mb/s (when RAID is enabled) | | Protocol | Hikvision, ACTi, Arecont, Axis, Bosch, Brickcom, Canon, Hunt, ONVIF (Version 2.5), Panasonic, PELCO, RTSP, Samsung, Sony, Vivotek, Zavio | | Video Outputs | 2 x HDMI
1 x VGA | | HDMI Resolution | DCI 4K (4096 x 2160), 4K UHD (3840 x 2160) at 30 Hz, 2K (2560 x 1440) at 60 Hz, 1080p (1920 x 1080) at 60 Hz, UXGA (1600 x 1200) at 60 Hz, SXGA (1280 x 1024) at 60 Hz, 720p (1280 x 720) at 60 Hz, XGA (1024 x 768) at 60 Hz | | VGA Resolution | 1080p (1920 x 1080) at 60 Hz, UXGA (1600 x 1200) at 60 Hz, SXGA (1280 x 1024) at 60 Hz, 720p (1280 x 720) at 60 Hz, XGA (1024 x 768) at 60 Hz | | Audio Output | 1-channel RCA (2.0 V p-p, 1 kOhm) | | Decoding Formats | H.265, H.265+, H.264, H.264+, MPEG4, MJPEG | | Video Resolution | 12 MP, 8 MP, 7 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF | | Synchronized Playback | Up to 16 channels | | HDD Interface | 16 SATA interfaces supporting hot-plug | | Capability | 20 channels at 1080p | | HDD Capacity | Up to 10 TB for each HDD (HDDs available separately) | | Storage Expansion | 1 x eSATA interface | | Supported RAID Type | RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10 | | Network Protocol | IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS | | Network Interface | 4 x RJ45 10M/100M/1000M self-adaptive Ethernet interface | | Two-Way Audio Input | 1-channel, RCA (2.0 V p-p, 1 kOhm) | | Serial Ports | 1 x RS-485
1 x RS-232
1 x keyboard | | USB Interface | 2 x USB 2.0, front panel
2 x USB 3.0, rear panel | | Alarm Ports | 16 x inputs
8 x outputs | | Power Supply | 100 to 240 VAC, 550 W | | Fan | Redundant dual ball bearing fan; Speed adjustable; Hot-plug | | Power Consumption | ≤140 W (without HDD) | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 10 to 90% | | Chassis | 3 RU | | Dimensions | 17.4 x 19.4 x 5.7" / 44.2 x 49.4 x 14.6 cm | | Weight | 35.3 lb / 16 kg (without HDD) | | | | Package Weight | 36.4 lb | | Box Dimensions (LxWxH) | 25.2 x 22.9 x 11.5" |
