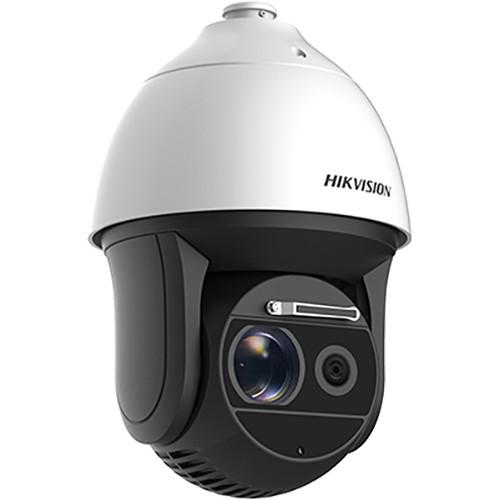

User Manual for Hikvision DarkFighter 2MP Outdoor Network PTZ Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision DarkFighter 2MP Outdoor Network PTZ
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DarkFighter 2MP Outdoor Network PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DarkFighter 2MP Outdoor Network PTZ Dome Camera from Hikvision features a 1/1.8" progressive scan CMOS sensor that allows it to capture images at maximum resolution of 1920 x 1080. The camera features a 5.7-205.2mm varifocal lens for 36x optical zoom and 16x digital zoom.
The IR laser light of the PTZ dome camera provides a night vision range of up to 1640' (500m) in total darkness. Furthermore, optical defog and EIS (Electronic Image Stabilization) help to improve image quality in challenging conditions. This camera has an IP67 weatherproof rating designed to withstand harsh weather conditions, and is also IK10-rated for vandal resistance to protect against acts of theft or vandalism. - Deep-learning-based target classification algorithm for auto-tracking 2.0 and perimeter protection
- 24 programmable polygon privacy masks
- Supports 3D-DNR, BLC, HLC, 120 dB WDR, optical defog, EIS, regional exposure, regional focus, and rapid focus
- Up to 32 users with up to 20 simultaneously
- Suitable for monitoring rivers, forests, roads, railways, airports, ports, squares, parks, scenic spots, stations, and large venues
UPC: 842571111033 In the Box Hikvision DarkFighter 2MP Outdoor Network PTZ Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DarkFighter 2MP Outdoor Network PTZ Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2DF8236I5X-AELW Specs | | | Sensor | 2 MP 1/1.8" CMOS | | Focal Length | 5.7 to 205.2mm | | Maximum Aperture | f/1.5 - f/4.5 | | Zoom | Optical: 36x
Digital: 16x | | Lens Field of View | Horizontal: 2.0 to 59.8°
Vertical: 1.1 to 33.6°
Diagonal: 2.3 to 68.6° | | Day/Night | Yes | | Minimum Illumination | Color: 0.002 Lux
B&W: 0 Lux | | Shutter Speed | 1/30000 to 1/1 Seconds | | | | Streaming Resolution | 1920 x 1080 at 25/30/50/60 fps | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | | | Streaming | Two-Way | | Audio Formats | G.711, G.722.1, G.726, PCM | | Built-In Mic | No | | Built-In Speaker | No | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, User Access Log | | Supported Protocols | Bonjour, DHCP, DNS, DynDNS, FTP, HTTP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | Open-Ended, ONVIF, CGI, Hikvision SDK, and Third-Party Management Platform | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Recording Media | microSD (Up to 256 GB) | | Pan/Tilt | Remote Pan: 360° at 280°/s
Remote Tilt: 110° (-20 to 90°) at 250°/s | | Alarm I/O | 7 / 2 | | I/O Connections | 1 x RJ45 | | IR Range | 1640.42' / 500 m | | Video Management Software | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect | | Internal Storage | None | | External Storage Options | NAS | | Power Source | AC, PoE 802.3at (30 W) | | Power Consumption | AC: 60 W
PoE: 50 W | | Operating Temperature | -40 to 158°F / -40 to 70°C | | Operating Humidity | 90% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 74 owners. Add your rating and experience with the product.
