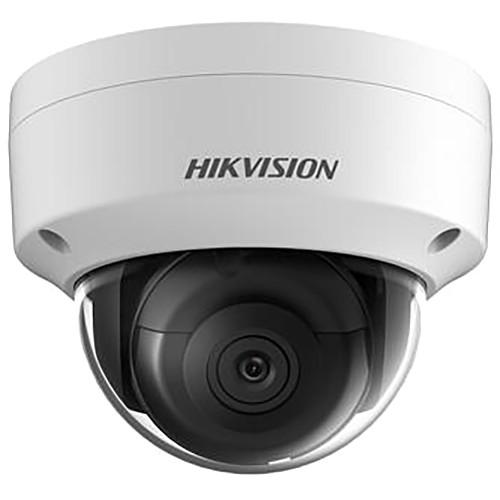

User Manual for Hikvision DarkFighter DS-2CD2145FWD-I 4MP Outdoor Network Dome Camera with Night Vision & 4mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision DarkFighter DS-2CD2145FWD-I 4MP Outdoor Network
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DarkFighter DS-2CD2145FWD-I 4MP Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description See through the night and watch over your property with the DarkFighter DS-2CD2145FWD-I 4MP Outdoor Network Dome Camera with Night Vision from Hikvision. Equipped with a 4MP CMOS DarkFighter sensor and a 4mm fixed lens, the DS-2CD2145FWD-I captures video at resolutions up to 2688 x 1520 at 30 fps in a 88 x 46° field of view. The camera is equipped with an IR cut filter and EXIR 2.0 IR LEDs for night vision with an effective range of up to 100'. Image enhancement features including a 120 dB wide dynamic range and backlight compensation enable you to capture clear images in varying lighting conditions.
Designed for easy setup, the DS-2CD2145FWD-I uses PoE technology, enabling you to run just one wire for both data and power. Moreover, it has a microSD card slot for edge storage and is IP67 and IK10 rated for outdoor use and vandal resistance. ONVIF compliance ensures compatibility with a wide range of surveillance equipment. - Color images down to 0.014 lux at f/1.6 with AGC on
- EXIR 2.0 IR technology for night vision up to 100'
- IR cut filter for day and night vision
- H.265+, H.265, H.264+, and H.264 video compression for efficient storage and bandwidth use
- Camera pivots from 0 to 355° horizontally and from 0 to 75° vertically
- 120 dB wide dynamic range
- 3D digital noise reduction
- microSD card slot for edge storage supports up to 128GB (microSD card available separately)
- PoE technology for easy, clutter-free installation
- IP67 rated for outdoor use
- IK10-rated vandal resistance
- cSA, FCC, CE, and UL certified
UPC: 842571118124 In the Box Hikvision DarkFighter DS-2CD2145FWD-I 4MP Outdoor Network Dome Camera with Night Vision & 4mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DarkFighter DS-2CD2145FWD-I 4MP Outdoor Network Dome Camera with Night Vision & 4mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2145FWD-I Specs | | | Sensor | 4 MP CMOS | | Lens Mount | M12 | | Focal Length | 4mm | | Maximum Aperture | f/1.6 | | Lens Field of View | Horizontal: 88°
Vertical: 46°
Diagonal: 105° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.014 Lux
B&W: 0 Lux | | Shutter Speed | 1/100,000 to 1/3 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 355°
Vertical: 0 to 75° | | | | Streaming Resolution | 2688 x 1520 at 30 fps | | Supported Video Compression | H.264, H.264+, H.265, H.265+ | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection | | Supported Protocols | Bonjour, CIFS/SMB, DDNS, DHCP, FTP, HTTP, ICMP, IGMP, IPv4/v6, NFS, NTP, ONVIF Profile G, ONVIF Profile S, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | ISAPI | | Analytics | Line Crossing Detection, Intrusion Detection, Object Removal Detection, Unattended Baggage Detection, Scene Change Detection, Face Detection | | Event Trigger | None | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power | | IR Illuminators | 850 nm | | IR Range | 100' / 30.48 m | | Video Management Software | iVMS-4200, iVMS-4500, Hik-Connect | | Certifications | CSA, UL, as per Manufacturer | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | DC: 5.5 W
PoE: 7 W | | Material of Construction | Plastic, Metal (Unspecified Type) | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions |
