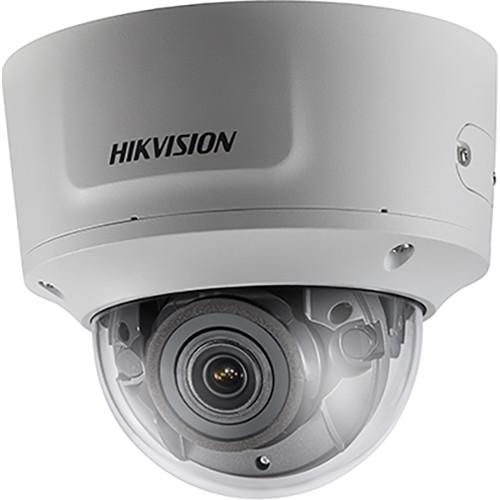

User Manual for Hikvision DarkFighter DS-2CD2765G0-IZS 6MP Outdoor Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision DarkFighter DS-2CD2765G0-IZS 6MP Outdoor Network
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DarkFighter DS-2CD2765G0-IZS 6MP Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description See through the night and watch over your property with the DarkFighter DS-2CD2765G0-IZS 6MP Outdoor Network Dome Camera with Night Vision from Hikvision. Equipped with a 6MP CMOS DarkFighter sensor and a 2.8-12mm motorized varifocal lens, this camera captures video at resolutions up to 3072 x 2048 at 20 fps in a 104 to 29° field of view. The camera has an IR cut filter and EXIR 2.0 IR LEDs for night vision with an effective range of up to 100'. Image enhancement features including a 120 dB wide dynamic range, white balance, and backlight compensation enable you to capture clear images in varying lighting conditions.
Designed for easy setup, this camera uses PoE technology, enabling you to run just one cable for both data and power. A built-in microSD card slot allows for edge storage, while audio input and output ports enable two-way talk. The camera is rated IP67 and IK10 for weather and vandal resistance. ONVIF compliance ensures compatibility with a wide range of surveillance equipment. - Color images down to 0.011 lux at f/1.4 with AGC on
- EXIR 2.0 IR technology for night vision up to 100'
- IR cut filter for day and night vision
- H.265+, H.265, H.264+, and H.264 video compression for efficient storage and bandwidth use
- Camera pivots from 0 to 355° horizontally and from 0 to 75° vertically
- 120 dB wide dynamic range
- 3D digital noise reduction
- microSD card slot for edge storage supports up to 128GB (microSD card available separately)
- PoE technology for easy, clutter-free installation
- IP67 rated for outdoor use
- IK10-rated vandal resistance
- cSA, FCC, CE, and UL certified
UPC: 842571121599 In the Box Hikvision DarkFighter DS-2CD2765G0-IZS 6MP Outdoor Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DarkFighter DS-2CD2765G0-IZS 6MP Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2765G0-IZS Specs | | | Sensor | 6 MP 1/2.4" CMOS | | Focal Length | 2.8 to 12mm | | Maximum Aperture | f/1.4 | | Zoom | Optical: 4.3x | | Lens Field of View | Horizontal: 104 to 29°
Vertical: 55 to 17°
Diagonal: 125 to 34° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.011 Lux
B&W: 0 Lux | | Shutter Speed | 1/100,000 to 1/3 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 355°
Vertical: 0 to 75° | | | | Streaming Resolution | 3072 x 2048 at 20 fps (16 Mb/s )
2560 x 1440 at 30 fps | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes, 10 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711, G.722.1, G.726, MP2L2, PCM | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection | | Supported Protocols | CIFS/SMB, DDNS, DHCP, FTP, HTTP, ICMP, IGMP, IPv4/v6, NFS, NTP, ONVIF Profile G, ONVIF Profile S, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | ISAPI | | Analytics | Line Crossing Detection, Intrusion Detection, Unattended Baggage Detection, Scene Change Detection, Face Detection | | Event Trigger | Yes | | Event Action | Recording, Alarm | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x BNC | | IR Illuminators | 850 nm | | IR Range | 100' / 30.48 m | | Video Management Software | iVMS-4200, Hik-Connect | | Certifications | CSA, UL, as per Manufacturer | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | DC: 10.5 W
PoE: 12.5 W | | Material of Construction | Plastic, Metal (Unspecified Type) | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions |
