Hikvision DarkFighter DS-2CD5026G0 2MP Network Box

Search your instruction manual in PDF to download

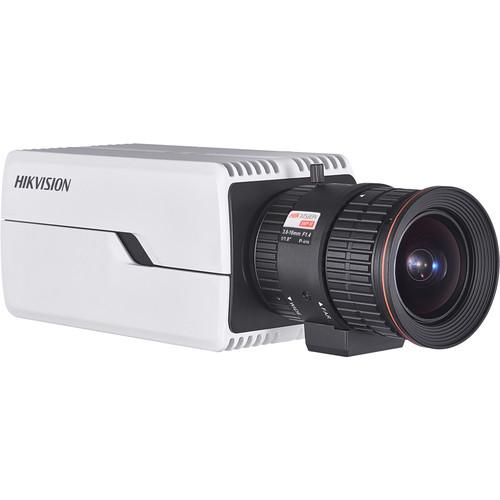

User Manual for Hikvision DarkFighter DS-2CD5026G0 2MP Network Box Camera

Click to enlarge the picture
Hikvision DarkFighter DS-2CD5026G0 2MP Network Box Camera Contents of the user manual for the Hikvision DarkFighter DS-2CD5026G0 2MP Network Box
  • Product category: Wired IP Cameras Hikvision
  • Brand: Hikvision
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Hikvision Wired IP Cameras

User manual for the Hikvision DarkFighter DS-2CD5026G0 2MP Network Box contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Hikvision product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!



Product description

See through the night and watch over your property with the DarkFighter DS-2CD5026G0 2MP Network Box Camera from Hikvision. Featuring a standard CS lens mount, this camera is designed to be customized with the lens of your choice (eight lens options available separately). The camera is equipped with a 2MP CMOS DarkFighter sensor to capture video at resolutions up to 1920 x 1080 at 60 fps. It delivers color images down to 0.002 lux, below which an integrated IR cut filter switches to B&W for ultra-low-light vision down to 0.0002 lux. Image enhancement features including a 140 dB wide dynamic range, white balance, and backlight/highlight compensation enable you to capture clear images in varying lighting conditions.

Designed for easy setup, this camera uses PoE technology so you can run just one cable for both data and power. It also has a microSD card slot for edge storage. ONVIF compliance ensures compatibility with a wide range of surveillance equipment.
  • DarkFighter sensor
  • Color images down to 0.002 lux at f/1.2 with AGC on
  • B&W images down to 0.0002 lux at f/1.2 with AGC on
  • IR cut filter for day and night vision
  • CS lens mount (lens available separately)
  • H.265+, H.265, H.264+, and H.264 video compression for efficient storage and bandwidth use
  • Multiple streaming; five defined streams and five custom streams
  • 140 dB wide dynamic range, LightFighter technology
  • Alarm inputs and outputs
  • 12 VDC accessory output
  • Automatic gain control
  • Backlight/highlight compensation
  • 3D digital noise reduction
  • Defog functionality
  • Electronic image stabilization
  • Picture overlay
  • Video analytics including face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, and defocus detection
  • Smart statistics including people counting
  • microSD card slot for edge storage supports up to 256GB (microSD card available separately)
  • PoE technology for easy, clutter-free installation
  • cSA, FCC, CE, and UL certified
  • ONVIF Profiles S and G compliant
UPC: 842571121117 In the Box Hikvision DarkFighter DS-2CD5026G0 2MP Network Box Camera (No Lens)
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Hikvision DarkFighter DS-2CD5026G0 2MP Network Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Hikvision DS-2CD5026G0 Specs

    Sensor 2 MP 1/1.8" CMOS
    Lens Mount CS
    IR Cut Filter Mechanical
    Day/Night Yes
    Minimum Illumination Color: 0.002 Lux
    B&W: 0.0002 Lux
    Shutter Speed 1/100,000 to 1 Seconds
    Streaming Resolution 1920 x 1080 at 60 fps (16 Mb/s )
    Supported Video Compression H.264, H.264+, H.265, H.265+, MJPEG
    Multi-View Streaming Yes, 10 Streams
    Automatic Gain Control Yes
    Security HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark
    Supported Protocols Bonjour, CIFS/SMB, DDNS, DHCP, FTP, HTTP, ICMP, IGMP, IPv4/v6, NFS, NTP, ONVIF Profile G, ONVIF Profile S, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP
    Application Programming Interface (API) ISAPI, SDK
    Analytics Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection, Scene Change Detection, Defocus Detection, Counting, Face Detection
    Event Trigger Yes
    Event Action Alarm
    Recording Media microSD (Up to 256 GB)
    Pan/Tilt None
    Alarm I/O 2 / 2
    I/O Connections 1 x RJ45
    1 x BNC
    1 x Power
    Video Management Software iVMS-4200, Hik-Connect, iVMS-5200, HikCentral
    Certifications CSA, UL, as per Manufacturer
    Internal Storage None
    External Storage Options Local PC, NAS
    Power Source AC, DC, PoE 802.3af (15 W)
    Power Consumption DC: 8 W
    Material of Construction Aluminum
    Operating Temperature -22 to 140°F / -30 to 60°C
    Operating Humidity 0 to 95%
    Dimensions H: 5.6 x W: 2.8 x L: 2.7" / H: 14.2 x W: 7.1 x L: 6.9 cm
    Weight 1.5 lb / 690 g
    Package Weight 2.195 lb
    Box Dimensions (LxWxH) 14.9 x 8.1 x 5.4"
