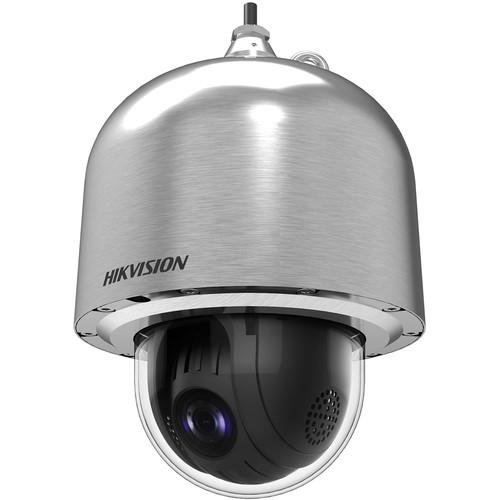

User Manual for Hikvision DarkFighter DS-2DF6223-CX 2MP Outdoor Explosion-Proof PTZ Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision DarkFighter DS-2DF6223-CX 2MP Outdoor Explosion-Proof
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DarkFighter DS-2DF6223-CX 2MP Outdoor Explosion-Proof contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description See through the night and watch over your property with the DarkFighter DS-2DF6223-CX 2MP Outdoor Explosion-Proof PTZ Network Dome Camera with Night Vision from Hikvision. Equipped with a 2MP CMOS DarkFighter sensor and a 5.9-135.7mm varifocal lens, the camera captures video at resolutions up to 1920 x 1080 at 30 fps in a 59.8 to 3.0° field of view. The camera has an IR cut filter and IR LEDs for night vision. Image enhancement features including a 120 dB wide dynamic range, automatic white balance, and backlight/highlight compensation enable you to capture clear images in varying lighting conditions.
This camera has a stainless steel housing that will not produce errant sparks that could trigger an explosion in industrial environments, and is IP68 rated for weather resistance. It has PTZ functionality, with 360° endless pan, 110° tilt, and 23x optical zoom. Audio input and output connections allow for two-way audio communication, while a microSD card slot enables onboard storage of footage. ONVIF compliance ensures compatibility with a wide range of surveillance equipment. - Color images down to 0.002 lux at f/1.5 with AGC on
- B&W images down to 0 lux with IR
- IR cut filter for day and night vision
- 5.9-135.7mm 23x varifocal lens with autofocus
- 360° endless pan and 110° tilt
- H.264+, H.264, and MJPEG video compression for efficient storage and bandwidth use
- 120 dB wide dynamic range
- Alarm input and output connections
- Audio input and output for two-way talk
- Backlight/highlight compensation
- 3D digital noise reduction
- Eight programmable privacy masking zones
- Video analytics including intrusion detection, line crossing detection, region entrance detection, region exiting detection, and audio exception detection
- Smart tracking and recording
- microSD card slot for edge storage supports up to 128GB (microSD card available separately)
- Runs on 100 to 240 VAC power
- IP68 rated for outdoor use
- Explosion-proof, TÜV 16 ATEX 7950X and IECEx TUR 16.0050X certified
- cSA, FCC, CE, and UL certified
In the Box Hikvision DarkFighter DS-2DF6223-CX 2MP Outdoor Explosion-Proof PTZ Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DarkFighter DS-2DF6223-CX 2MP Outdoor Explosion-Proof PTZ Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2DF6223-CX Specs | | | Sensor | 2 MP 1/1.9" CMOS | | Focal Length | 5.9 to 135.7mm | | Maximum Aperture | f/1.5 - f/3.4 | | Zoom | Optical: 23x
Digital: 16x | | Lens Field of View | Horizontal: 59.8 to 3.0° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.002 Lux
B&W: 0 Lux | | Shutter Speed | 1/30,000 to 1 Seconds | | | | Streaming Resolution | 1920 x 1080 at 60 fps | | Supported Video Compression | H.264, H.264+, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711, G.722.1, G.726, MP2L2, PCM | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | PSIA, CGI, Genetec, SDK | | Analytics | Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection | | Event Trigger | Yes | | Event Action | Recording, Alarm | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | Programmed Pan: 360° at 280°/s
Programmed Tilt: 110° (-20 to 90°) at 250°/s | | Alarm I/O | 7 / 2 | | I/O Connections | 1 x RJ45 | | Video Management Software | iVMS-4200 | | Certifications | ATEX, CSA, IECEx, UL, as per Manufacturer | | Internal Storage | None | | Power Source | AC | | Power Consumption | 60 W | | Material of Construction | Stainless Steel | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP68 | | Dimensions |
