Hikvision DarkFighter DS-2DF6A436X-AEL 4MP Outdoor PTZ

Search your instruction manual in PDF to download

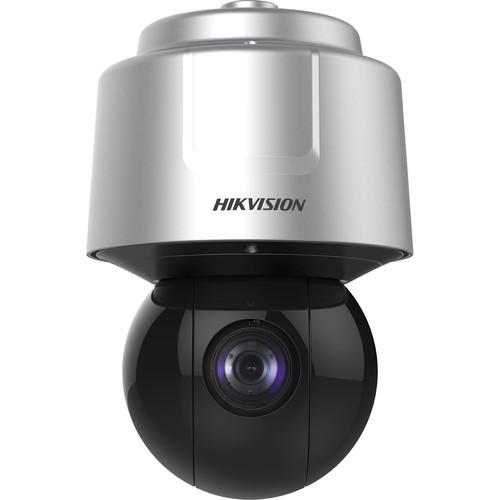

User Manual for Hikvision DarkFighter DS-2DF6A436X-AEL 4MP Outdoor PTZ Network Dome Camera with Night Vision

Click to enlarge the picture
Hikvision DarkFighter DS-2DF6A436X-AEL 4MP Outdoor PTZ Network Dome Camera with Night Vision Contents of the user manual for the Hikvision DarkFighter DS-2DF6A436X-AEL 4MP Outdoor PTZ
  • Product category: Wired IP Cameras Hikvision
  • Brand: Hikvision
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Hikvision Wired IP Cameras

User manual for the Hikvision DarkFighter DS-2DF6A436X-AEL 4MP Outdoor PTZ contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Hikvision product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!



Product description

See through the night and watch over your property with the DarkFighter DS-2DF6A436X-AEL 4MP Outdoor PTZ Network Dome Camera with Night Vision from Hikvision. Equipped with a 4MP CMOS DarkFighter sensor and a 5.7-205.2mm varifocal lens, the camera captures video at resolutions up to 2560 x 1440 at 30 fps in a 51.1 to 1.7° field of view. The camera has an IR cut filter and IR LEDs for night vision. Image enhancement features including a 120 dB wide dynamic range, automatic white balance, and backlight/highlight compensation enable you to capture clear images in varying lighting conditions.

This camera has PTZ functionality, with 360° endless pan, 110° tilt, and 36x optical zoom. Audio input and output connections allow for two-way audio communication, while Hi-PoE technology makes for easy setup, enabling you to run just one cable for both data and power. The camera has a microSD card slot for edge storage and is rated IP67 and IK10 for weather and vandal resistance. ONVIF compliance ensures compatibility with a wide range of surveillance equipment.
  • DarkFighter sensor
  • Color images down to 0.005 lux at f/1.5 with AGC on
  • B&W images down to 0 lux with IR
  • IR cut filter for day and night vision
  • 5.7-205.2mm varifocal lens with autofocus
  • 360° endless pan and 110° tilt
  • 16x digital zoom
  • H.265+, H.265, H.264+, H.264, and MJPEG video compression for efficient storage and bandwidth use
  • Multiple streaming
  • 120 dB wide dynamic range
  • Alarm input and output connections
  • Audio input and output for two-way talk
  • Automatic gain control
  • Backlight/highlight compensation
  • 3D digital noise reduction
  • Electronic image stabilization
  • Defog functionality
  • Rapid Focus technology allows camera to maintain focus while lens is zoomed
  • 24 programmable privacy masking zones
  • Video analytics including intrusion detection, line crossing detection, region entrance detection, region exiting detection, and audio exception detection
  • Filters out of false alarms caused by leaves, light, animals, flags, etc
  • Smart tracking of specified target types, e.g. humans and vehicles
  • microSD card slot for edge storage supports up to 256GB (microSD card available separately)
  • Runs on 24 VAC power or Hi-PoE
  • IP67 rated for outdoor use
  • IK10-rated vandal resistance
  • TVS 6000V lightning protection, surge protection, and transient voltage protection
  • cSA, FCC, CE, and UL certified
  • ONVIF compliant
In the Box Hikvision DarkFighter DS-2DF6A436X-AEL 4MP Outdoor PTZ Network Dome Camera with Night Vision
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Hikvision DarkFighter DS-2DF6A436X-AEL 4MP Outdoor PTZ Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Hikvision DS-2DF6A436X-AEL Specs

    Sensor 4 MP 1/1.9" CMOS
    Focal Length 5.7 to 205.2mm
    Maximum Aperture f/1.5 - f/4.5
    Zoom Optical: 36x
    Digital: 16x
    Lens Field of View Horizontal: 51.1 to 1.7°
    Vertical: 31.3 to 1.0°
    Diagonal: 58.0 to 2.0°
    IR Cut Filter Mechanical
    Day/Night Yes
    Minimum Illumination Color: 0.005 Lux
    B&W: 0 Lux
    Shutter Speed 1/30,000 to 1 Seconds
    Streaming Resolution 2560 x 1440 at 30 fps (16.4 Mb/s )
    Supported Video Compression H.264, H.264+, H.265, H.265+, MJPEG
    Multi-View Streaming Yes, 3 Streams
    Automatic Gain Control Yes
    Streaming Two-Way
    Audio Formats G.711, G.722.1, G.726, MP2L2, PCM
    Built-In Mic No
    External Audio Input 3.5 mm
    Built-In Speaker No
    External Audio Output 3.5 mm
    Security HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering
    Supported Protocols Bonjour, DDNS, DHCP, DNS, FTP, HTTP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP
    Application Programming Interface (API) ISAPI, CGI, Hikvision SDK
    Analytics Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection
    Event Trigger Yes
    Event Action Recording, Notification, Alarm
    Recording Media microSD (Up to 256 GB)
    Pan/Tilt Programmed Pan: 360° at 540°/s
    Programmed Tilt: 110° (-20 to 90°) at 400°/s
    Alarm I/O 7 / 2
    I/O Connections 1 x RJ45
    1 x BNC
    Video Management Software iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
    Certifications CSA, UL, as per Manufacturer
    Internal Storage None
    External Storage Options NAS
    Power Source AC, PoE 802.3bt (60 W)
    Power Consumption AC: 60 W
    PoE: 50 W
    Operating Temperature -40 to 158°F / -40 to 70°C
    Operating Humidity 0 to 90%
    IP Rating IP67
    IK Rating IK10
    Dimensions

    Rating

    70% users recommend this product to others. And what about you?
    Rating: 3.5 of 5

    This product has already been rated by 48 owners. Add your rating and experience with the product.
