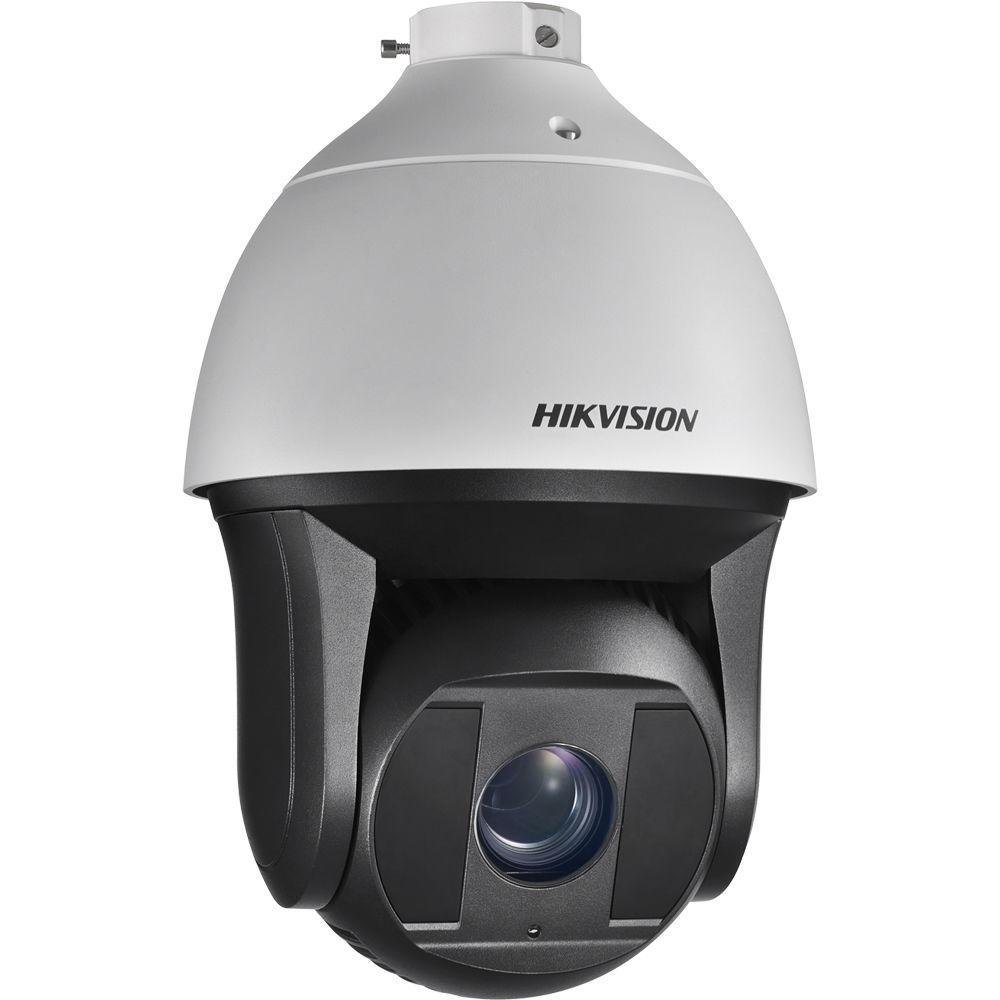

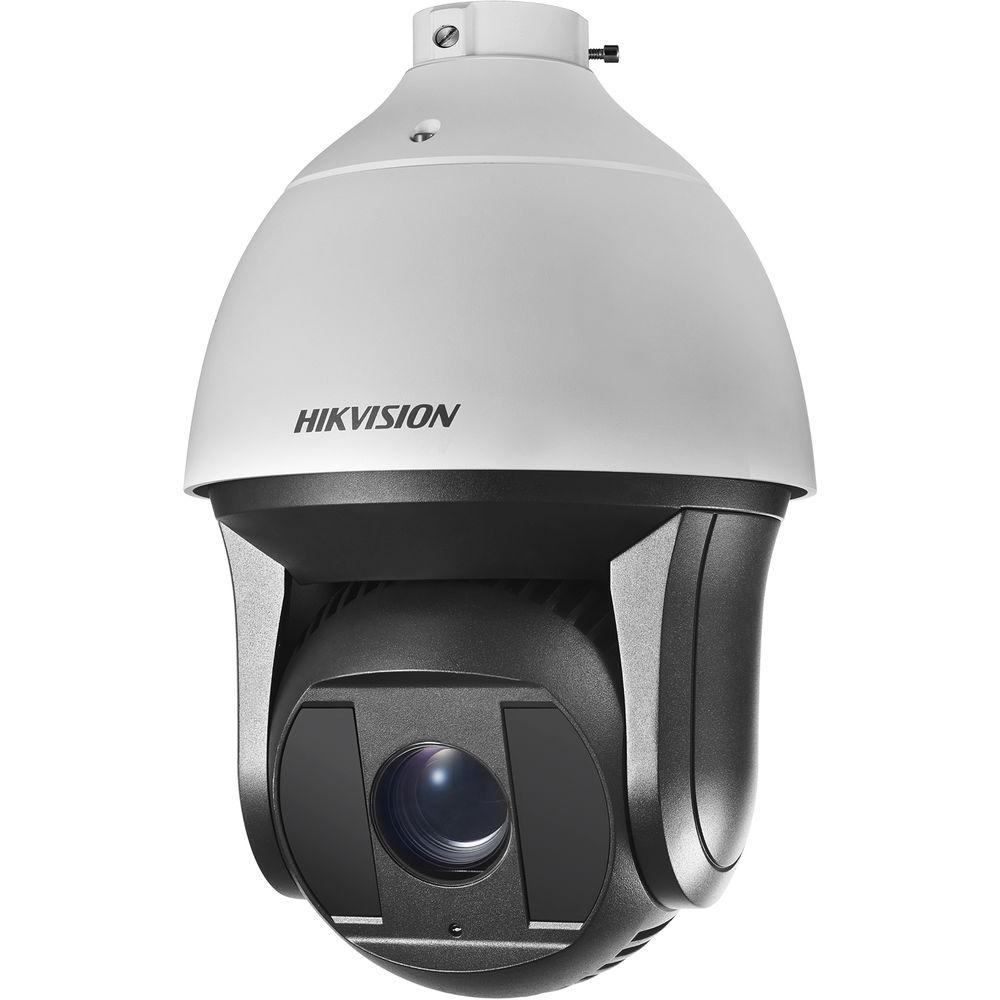

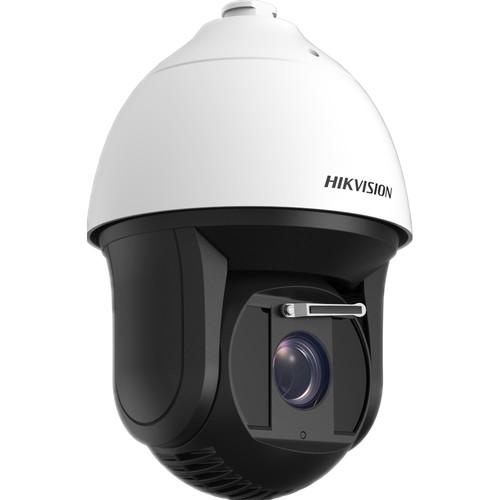

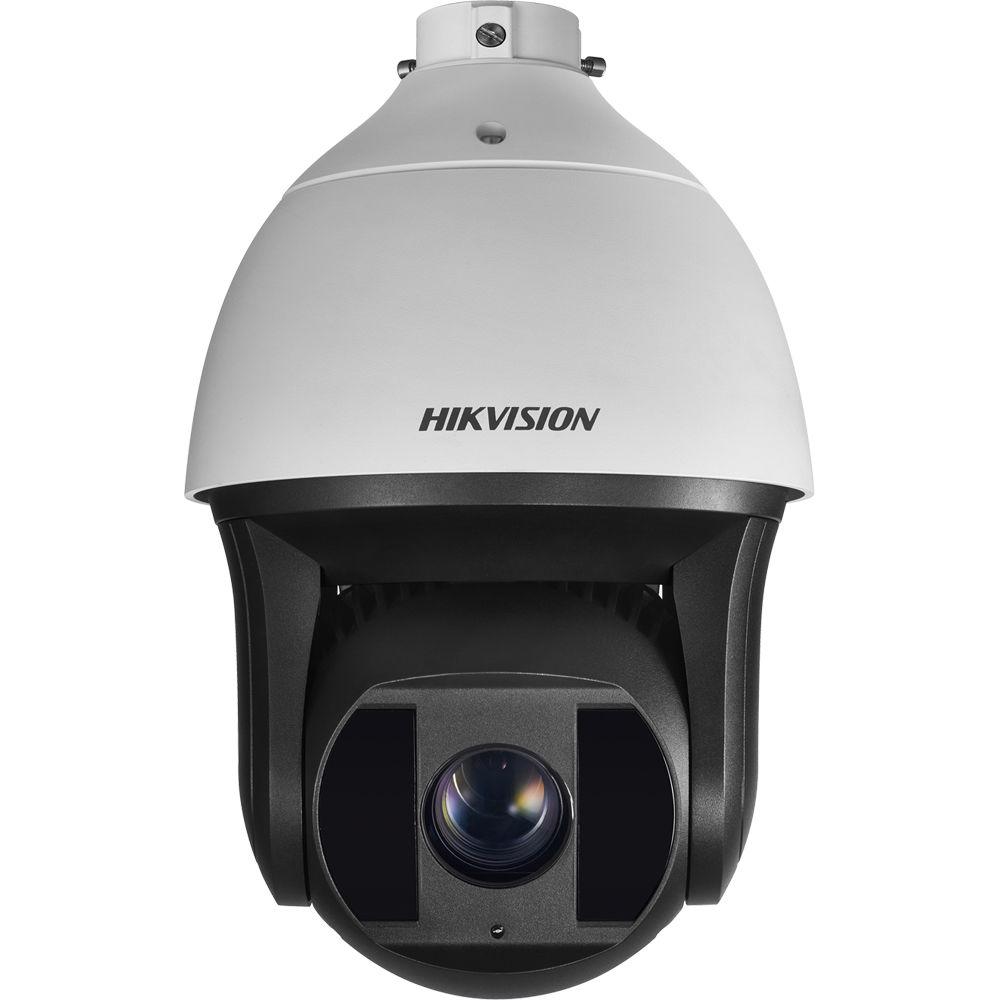

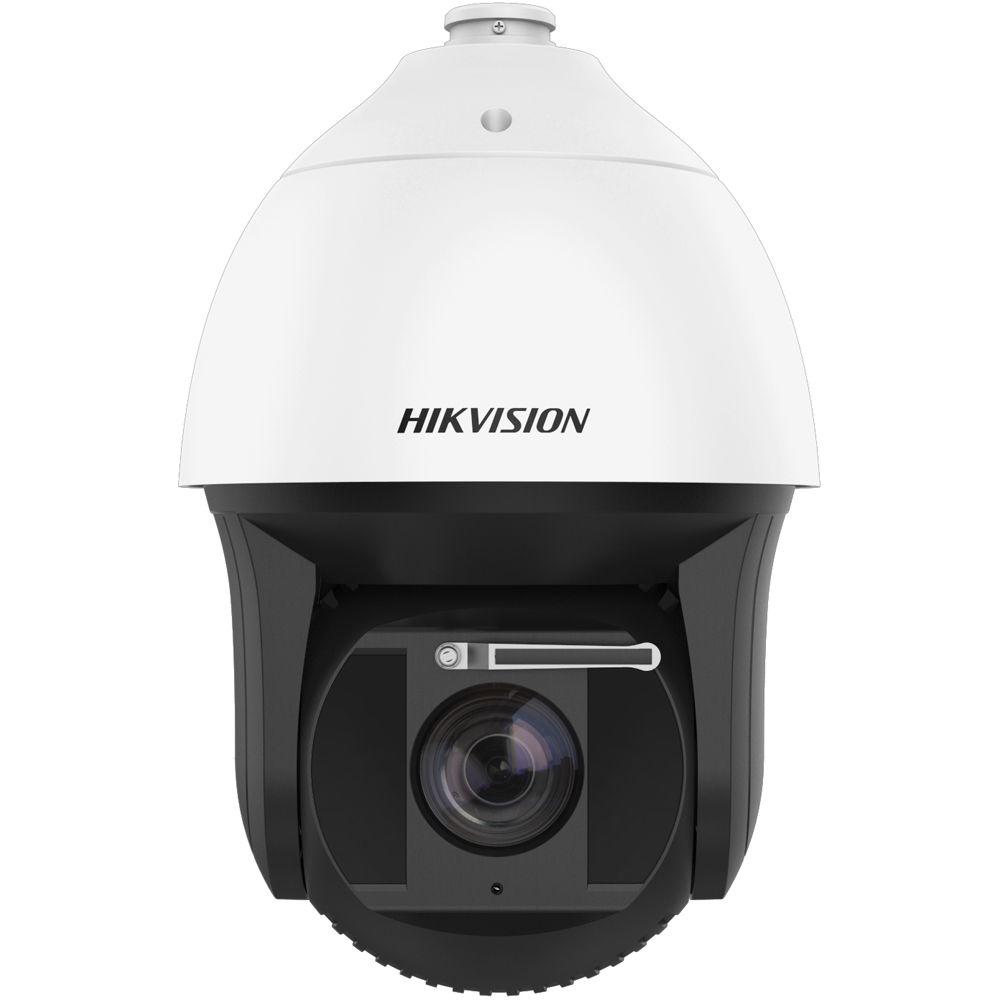

User Manual for Hikvision DarkFighter DS-2DF8236IX-AEL 2MP Outdoor PTZ Network Dome Camera with Night Vision & Wiper Click to enlarge the picture
Contents of the user manual for the Hikvision DarkFighter DS-2DF8236IX-AEL 2MP Outdoor PTZ
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
 |
User manual for the Hikvision DarkFighter DS-2DF8236IX-AEL 2MP Outdoor PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DarkFighter DS-2DF8236IX-AEL(W) 2MP Outdoor PTZ Network Dome Camera with Wiper from Hikvision uses a 1/1.9" progressive scan sensor to stream video at resolutions up to 1920 x 1080 at 60 fps. It has a 5.7-205.2mm lens with an optical zoom of 36x and a digital zoom of 16x. With a built-in IR cut filter and integrated IR LEDs, this camera can capture images in complete darkness at a distance up to 656'. The camera features an audio input and output and a built-in memory card slot that supports microSD/SDHC/SDXC cards with a capacity of up to 256GB. This camera can be powered via 24 VAC or Hi-PoE and is IP66-rated for outdoor use. - Supports 3D-DNR, BLC, HLC, 120 dB WDR, optical defog, EIS, regional exposure, regional focus, and rapid focus
- Smart Detection: Intrusion detection, line crossing detection, region entrance detection, region exiting detection, face detection, and audio exception detection
- Up to 32 users, 20 simultaneously
UPC: 842571109658 In the Box Hikvision DarkFighter DS-2DF8236IX-AEL(W) 2MP Outdoor PTZ Network Dome Camera with Night Vision & Wiper Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DarkFighter DS-2DF8236IX-AEL 2MP Outdoor PTZ Network Dome Camera with Night Vision & Wiper in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2DF8236IX-AELW Specs | | | Sensor | 2 MP 1/1.9" CMOS | | Focal Length | 5.7 to 205.2mm | | Maximum Aperture | f/1.5 - f/4.5 | | Zoom | Digital: 16x
Optical: 36x | | Lens Field of View | Horizontal: 59.8 to 2.0°
Vertical: 33.6 to 1.1°
Diagonal: 68.6 to 2.3° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.002 Lux
B&W: 0 Lux | | Shutter Speed | 1/30,000 to 1 Seconds | | | | Streaming Resolution | 1920 x 1080 at 60 fps | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711, G.722.1, G.726, MP2L2, PCM | | Built-In Mic | No | | Built-In Speaker | No | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, Password Protection | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | Open-ended, ONVIF, CGI, Hikvision SDK, and Third-Party Management Platform | | Analytics | Intrusion, Line Crossing, Region Entrance/Exit, Face, and Audio Exception Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Recording Media | microSD (Up to 256 GB) | | Pan/Tilt | Remote Pan: 360° at 280°/s
Remote Tilt: 110° (-20 to 90°) at 250°/s | | Alarm I/O | 7 / 2 | | I/O Connections | 1 x RJ45 | | IR Range | 656.17' / 200 m | | Video Management Software | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect | | Internal Storage | None | | External Storage Options | NAS | | Power Source | AC, PoE 802.3bt (60 W) | | Power Consumption | AC: 60 W
PoE: 50 W | | Operating Temperature | -40 to 149°F / -40 to 65°C | | IP Rating | IP66 | | Dimensions |
