User manual

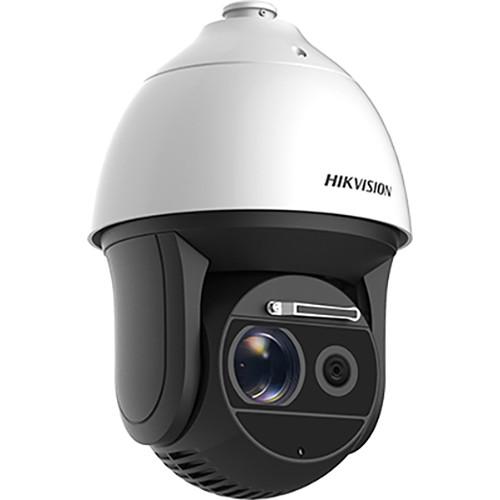

Hikvision DarkFighter DS-2DF8436I5X-AELW 4MP Outdoor PTZ

User Manual for Hikvision DarkFighter DS-2DF8436I5X-AELW 4MP Outdoor PTZ Network Dome Camera with Night Vision

• Product category: Wired IP Cameras Hikvision
• Brand: Hikvision
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Hikvision Wired IP Cameras

Product description

• DarkFighter sensor

• Color images down to 0.005 lux at f/1.5 with AGC on

• IR laser light for night vision up to 1640'

• IR cut filter for enhanced day/night performance

• 5.7-205.2mm varifocal lens with autofocus

• 360° endless pan and 110° tilt

• 16x digital zoom

• H.265+, H.265, H.264+, H.264, and MJPEG video compression for efficient storage and bandwidth use

• Multiple streaming

• Digital wide dynamic range

• Alarm input and output connections

• Audio input and output for two-way talk

• Automatic gain control

• Backlight/highlight compensation

• 3D digital noise reduction

• Electronic image stabilization

• Optical defog

• Rapid Focus technology allows camera to maintain focus while lens is zoomed

• Regional Focus technology enables focusing on specific area within camera's field of view

• Regional Exposure technology enables adjusting exposure to maximize image quality in a specific area within camera's field of view

• 24 programmable privacy masking zones

• Video analytics including intrusion detection, line crossing detection, region entrance detection, region exiting detection, and audio exception detection

• Smart tracking of specified target types, e.g. humans and vehicles

• microSD card slot for edge storage supports up to 256GB (microSD card available separately)

• Integrated wiper helps keep lens clear of water drops

• Runs on 24 VAC power or Hi-PoE

• IP67 rated for outdoor use

• TVS 6000V lightning protection, surge protection, and transient voltage protection

• cSA, FCC, CE, and UL certified

• ONVIF compliant

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Hikvision DS-2DF8436I5X-AELW Specs

Recording Media	microSD (Up to 256 GB)
Pan/Tilt	Programmed Pan: 360° at 280°/s Programmed Tilt: 110° (-20 to 90°) at 250°/s
Alarm I/O	7 / 2
I/O Connections	1 x RJ45 1 x Power
IR Range	1640' / 499.87 m
Video Management Software	iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Certifications	CSA, UL, as per Manufacturer
Internal Storage	None
External Storage Options	NAS
Power Source	AC, PoE 802.3bt (60 W)
Power Consumption	AC: 60 W PoE: 50 W
Operating Temperature	-40 to 158°F / -40 to 70°C
Operating Humidity	0 to 90%
IP Rating	IP67
