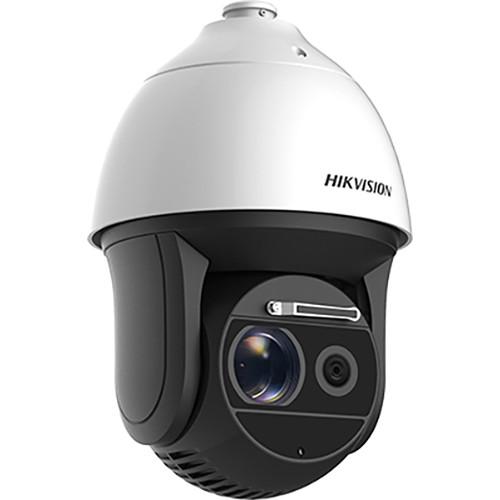

User Manual for Hikvision DarkFighter DS-2DF8436IX-AELW 4MP Outdoor PTZ Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision DarkFighter DS-2DF8436IX-AELW 4MP Outdoor PTZ
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DarkFighter DS-2DF8436IX-AELW 4MP Outdoor PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description See through the night and watch over your property with the DarkFighter DS-2DF8436IX-AELW 4MP Outdoor PTZ Network Dome Camera with Night Vision from Hikvision. Equipped with a 4MP CMOS DarkFighter sensor and a 5.7-205.2mm varifocal lens, the camera captures video at resolutions up to 2560 x 1440 at 30 fps in a 51.1 to 1.7° field of view. The camera has an IR cut filter and IR LEDs for night vision with an effective range of up to 655'. Image enhancement features including digital wide dynamic range, automatic white balance, and backlight/highlight compensation enable you to capture clear images in varying lighting conditions.
This camera has PTZ functionality, with 360° endless pan, 110° tilt, and 36x optical zoom. Audio input and output connections allow for two-way audio communication, while Hi-PoE technology makes for easy setup, enabling you to run just one cable for both data and power. Moreover, the camera has a microSD card slot for edge storage, and is IP67 rated for weather resistance. ONVIF compliance ensures compatibility with a wide range of surveillance equipment. - Color images down to 0.005 lux at f/1.5 with AGC on
- Smart IR technology for night vision up to 655'
- IR cut filter for day and night vision
- 5.7-205.2mm varifocal lens with autofocus
- 360° endless pan and 110° tilt
- H.265+, H.265, H.264+, and H.264 video compression for efficient storage and bandwidth use
- Digital wide dynamic range
- Alarm input and output connections
- Audio input and output for two-way talk
- Backlight/highlight compensation
- 3D digital noise reduction
- Electronic image stabilization
- Optical defog functionality
- Rapid Focus technology allows camera to maintain focus while lens is zoomed
- 24 programmable privacy masking zones
- Video analytics including intrusion detection, line crossing detection, region entrance detection, region exiting detection, and audio exception detection
- Smart tracking of specified target types, e.g. humans and vehicles
- microSD card slot for edge storage supports up to 256GB (microSD card available separately)
- Runs on 24 VAC or Hi-PoE power
- IP67 rated for outdoor use
- Integrated wiper helps keep lens clear of water drops
- TVS 6000V lightning protection, surge protection, and transient voltage protection
- cSA, FCC, CE, and UL certified
UPC: 842571111880 In the Box Hikvision DarkFighter DS-2DF8436IX-AELW 4MP Outdoor PTZ Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DarkFighter DS-2DF8436IX-AELW 4MP Outdoor PTZ Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2DF8436IX-AELW Specs | | | Sensor | 4 MP 1/1.9" CMOS | | Focal Length | 5.7 to 205.2mm | | Maximum Aperture | f/1.5 - f/4.5 | | Zoom | Optical: 36x
Digital: 16x | | Lens Field of View | Horizontal: 51.1 to 1.7°
Vertical: 31.3 to 1°
Diagonal: 58 to 2° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.005 Lux
B&W: 0 Lux | | Shutter Speed | 1/30,000 to 1 Seconds | | | | Streaming Resolution | 2560 x 1440 at 30 fps | | Supported Video Compression | H.264, H.264+, H.265, H.265+ | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711, G.722.1, G.726, MP2L2, PCM | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | CGI, Hikvision SDK | | Analytics | Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Recording Media | microSD (Up to 256 GB) | | Pan/Tilt | Programmed Pan: 360° at 280°/s
Programmed Tilt: 110° (-20 to 90°) at 250°/s | | Alarm I/O | 7 / 2 | | I/O Connections | 1 x RJ45 | | IR Range | 655' / 199.64 m | | Video Management Software | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect | | Certifications | CSA, UL, as per Manufacturer | | Internal Storage | None | | External Storage Options | NAS | | Power Source | AC, PoE 802.3bt (60 W) | | Power Consumption | AC: 60 W
PoE: 50 W | | Operating Temperature | -40 to 158°F / -40 to 70°C | | Operating Humidity | 0 to 90% | | IP Rating | IP67 | | Dimensions |
