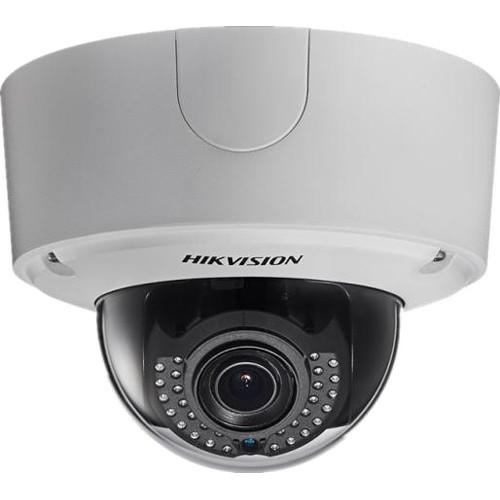

User Manual for Hikvision Darkfighter Series DS-2CD4526FWD-IZH 2MP Low Light Smart Dome Camera with 2.8 to 12mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the Hikvision Darkfighter Series DS-2CD4526FWD-IZH 2MP Low
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision Darkfighter Series DS-2CD4526FWD-IZH 2MP Low contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The Darkfighter Series DS-2CD4526FWD-IZH 2MP Low Light Smart Dome Camera from Hikvision features a 1/1.8" progressive scan CMOS sensor and a 2.8 to 12mm varifocal lens. This Darkfighter series ultra-low light camera is able to capture high-quality color images in a dimly lit environment. The camera offers full HD resolution with up to 60 fps frame rate, 120 dB WDR, PoE, defog, and 3D DNR functionality. - Smart Functions
-
- Supports 6 behavior analyses; 4 exception detections, 1 recognition, and 1 statistic function
- Supports edge recording and dual-VCA
- Supports low bit rate; low latency; ROI enhance encoding
- Camera and Image
-
- Supports 1920 x 1080 resolution at 60 fps
- Supports image distortion correction
- Supports rotate mode, suitable for environment as corridor
- Supports regional cropping, details can be seen with low bandwidth
- Code smoothness setting for different requirements of image quality and fluency
- Supports H.264/MJPEG/MPEG4 video compression, multi-level video quality configurations; supports Basic/Main/High Profile H.264 encoding complexity
- Multiple OSD : Black & white self-adaptive; custom
- 120 dB WDR is supported for backlit environments
- Supports defog, BLC, HLC, EIS
- Infrared
-
- Maximum IR distance of up to 131'
- Smart IR prevents over-exposure when object is close to the camera
- System
-
- Supports ONVIF (profile S/profile G), CGI, PSIA, ISAPI protocol
- Supports three streams, and 20 channels live view at the same time
- Anti-thunder, anti-surge, anti-static protection level
- Smart heater for starting in extra low temperature
- IP66 & IK10 protection level
- Interface
-
- Supports standard 128 GB microSD/SDHC/SDXC card
- Supports 10M/100M Ethernet port
- Supports audio I/O and dual channel stereo audio
- Supports alarm I/O
- Supports CVBS analog output (4CIF resolution)
- Security
-
- Supports three-level user authentication management, user and password authorization, IP address filtering and anonymous access
- Supports security certificate as HTTPS, SSH; supports creating certificates
- Basic and digest authentication is supportable in IE configuration
- Locks the user account in case of multiple invalid login attempts
UPC: 813908021318 In the Box Hikvision Darkfighter Series DS-2CD4526FWD-IZH 2MP Low Light Smart Dome Camera with 2.8 to 12mm Varifocal Lens Limited 3-Year Warranty Brochure PDF 211.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision Darkfighter Series DS-2CD4526FWD-IZH 2MP Low Light Smart Dome Camera with 2.8 to 12mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD4526FWD-IZH Specs | | | Sensor | 1/1.8" Progressive scan CMOS | | Minimum Illumination | 0.002 lux @ (f/1.2, AGC On), 0 lux with IR
0.0027 lux @ (f/1.4, AGC On), 0 lux with IR | | Shutter Speed | 1 to 1/100,000 sec | | Slow Shutter | Supported | | Lens | 2.8 to 12 mm @ f/1.4 | | Angle of View | 92 to 32° | | Lens Mount | 14 mm | | Angle Adjustment | Pan: 0 to 355°, tilt: 0 to 75°, rotation: 0 to 355° | | Auto-Iris Lens Support | DC drive | | Day & Night | IR cut filter | | Wide Dynamic Range | 120 dB | | | | Video | H.264 / MPEG4 / MJPEG | | H.264 Profile | Baseline / Main / High | | Video Bit Rate | 32 kbps to 16 Mbps | | Audio | G.711 / G.722.1 / G.726 / MP2L2 | | Audio Bit Rate | 64 kbps (G.711) / 16 kbps (G.722.1) / 16 kbps (G.726) / 32 to 128 kbps (MP2L2) | | | | Maximum Resolution | 1920 x 1080 | | Frame Rate | 50 Hz: 50 fps for 1920 x 1080 / 1280 x 960 / 1280 x 720
60 Hz: 60 fps for 1920 x 1080 / 1280 x 960 / 1280 x 720 | | Streaming | Third Stream: Independent with main stream and sub stream
Up to 50 Hz: 25 fps @ 1920 × 1080; 60 Hz: 30 fps @ 1920 × 1080 | | Image Enhancement | BLC / HLC / 3D DNR / ROI / Defog | | Image Settings | Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or Web browser | | Distortion | Supports distortion correction | | Cropping | Supports regional cropping | | Day/Night Switching | Auto / Schedule / Triggered by alarm in | | Overlay | Logo picture can be overlaid on video with 128 x 128 24-bit bmp format | | | | Storage | NAS (supports NFS, SMB/CIFS), ANR | | Alarm Trigger | Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception | | Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Security | User authentication, watermark, IP address filtering, anonymous access | | Standard | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI | | | | Audio | 1-channel 3.5 mm audio in (Mic in/Line in) / out interface | | Communication Interface | 1 x RJ45 10M/100M Ethernet port, 1 x RS-485 interface | | Alarm | 1 x input, 1 x output (up to 24 VDC, 1 A or 110 VAC, 500 mA) | | Video Output | 1 Vpp composite output (75 Ω/BNC) | | On-board Storage | Built-in microSD/SDHC/SDXC slot; up to 128 GB | | Reset Button | Yes | | | | Filtering | Supports environment noise filtering | | Audio I/O | Support dual audio track, stereo | | Audio Sampling Rate | 16 / 32 / 44.1 / 48 kHz | | | | Functions | Behavior Analyses: Line crossing detection, intrusion detection, region entrance, region exiting, unattended baggage, object removal
Exception Detections: Scene change detection, sudden audio increase/decrease detection, audio loss detection, defocus detection
Recognition: Face detection recognition
Statistics: Object counting (entrance and exit object number is accounted and showed on screen in real time) | | IP Rating | IP66 | | IR Distance | 131' (40 m) | | Operating Conditions | Temperature: -40 to 140°F (-40 to 60°C)
Humidity: 95% or less (non-condensing) | | Power Supply | 24 VAC ± 10%, 12 VDC ± 10%, PoE (802.3at) | | Power Consumption | 17 W | | Dimensions | 6.5 × 5.0" (16.5 × 12.7 cm) | | Weight | 4.63 lb (2.10 kg) | | | | Package Weight | 4.1 lb | | Box Dimensions (LxWxH) | 9.8 x 8.7 x 7.6" |
