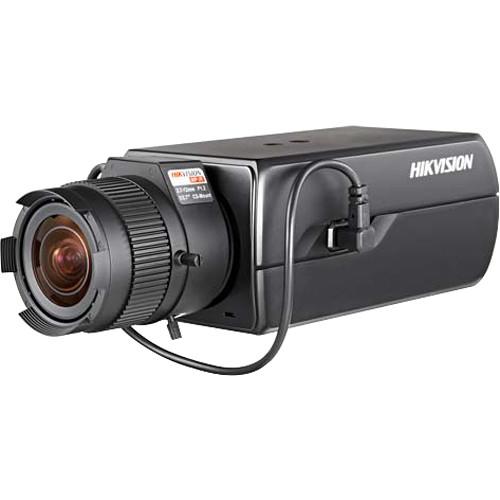

User Manual for Hikvision Darkfighter Series DS-2CD6026FHWD-A11 2MP Network Box Camera with 11-40mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision Darkfighter Series DS-2CD6026FHWD-A11 2MP Network
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision Darkfighter Series DS-2CD6026FHWD-A11 2MP Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The Darkfighter Series DS-2CD6026FHWD-A11 2MP Network Box Camera from Hikvision features a 1/1.8" progressive scan CMOS sensor that allows it to capture 1920 x 1080 video at 60 fps. In addition, it also features an 11 to 40mm IR corrected varifocal lens. This ultra low-light camera is able to capture color video in a dimly lit environment. The Auto Back Focus feature automatically adjusts the camera's CCD position when changing from color to B&W mode to ensure optimal focus for sharp images. - 1/1.8" Progressive scan CMOS
- Captures Full HD 1080p video, up to 60 fps
- 11 to 40mm IR corrected varifocal lens
- Auto Back Focus feature provides stable focus in both color and B/W modes
- 120 dB WDR and 3D-DNR functions offer high-contrast images in variable lighting conditions
- ROI (Region-of-Interest) codec reduces bandwidth
- Audio / alarm input and output
UPC: 816783017797 In the Box Hikvision Darkfighter Series DS-2CD6026FHWD-A11 2MP Network Box Camera with 11-40mm Lens HV1140D-8MPIR 11 to 40mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision Darkfighter Series DS-2CD6026FHWD-A11 2MP Network Box Camera with 11-40mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD6026FHWD-A11 Specs | | | Sensor | 1/1.8" Progressive scan CMOS | | Minimum Illumination | Color: 0.001 lux @ (f/1.2, AGC On)
B/W: 0.0001 lux @ (f/1.2, AGC On) | | Shutter Speed | 1 to 1/100,000 sec | | Slow Shutter | Supported | | Lens Mount | C/CS mount | | Lens | 11 to 40 mm
f/1.5 to closed
IR corrected | | Auto-Iris Lens Support | DC drive | | Day & Night | IR cut filter with auto switch | | Wide Dynamic Range | 120 dB | | Digital Noise Reduction | 3D | | Focus | Auto Back Focus | | | | Video | H.264 / MPEG4 / MJPEG | | H.264 Profile | Baseline / Main / High | | Video Bit Rate | 32 kbps to 16 Mbps | | Audio | G.711 / G.722.1 / G.726 / MP2L2 | | Audio Bit Rate | 64 kb/s (G.711) / 16 kb/s G.722.1 / 16 kb/s (G.726) / 32 to 128 kb/s (MP2L2) | | | | Maximum Resolution | 1920 x 1080 | | Frame Rate | 50 Hz: 50 fps (1920 × 1080), 50 fps (1280 × 960), 50 fps (1280 × 720)
60 Hz: 60 fps (1920 × 1080), 60 fps (1280 × 960), 60 fps (1280 × 720) | | Streaming | Third Stream: Independent with main stream and sub stream up to 50 Hz: 25 fps @ 1920 x 1080; 60 Hz: 30 fps @ 1920 x 1080 | | Image Enhancement | BLC / EIS / Defog / ROI | | Image Settings | Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser | | Day/Night Switching | Auto / Schedule / Triggered by alarm in | | Overlay | Logo picture can be overlaid on video with 128 x 128 24-bit bmp format | | | | Storage | microSD/SDHC/SDXC onboard (up to 128 GB), NAS (NFS, SMB/CIFS) | | Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Security | User authentication, watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask | | Standard | ONVIF (profile S & G), PSIA, CGI, ISAPI | | | | Audio Input | 1-channel 3.5 mm audio interface, Mic in / Line in
Built-in microphone | | Audio Output | 1-channel 3.5 mm audio interface (line level, 600 Ohms) | | Communication Interface | 1 x RJ45 10M/100M Ethernet port, 1 x RS-485 interface, and 1 x RS-232 interface | | Alarm | 1 x input, 1 x output (up to 24 VDC 1 A / 110 VAC 500 mA) | | Video Output | 1 x V p-p composite output (75 Ohms/BNC) | | On-board Storage | Built-in microSD/SDHC/SDXC slot; up to 128 GB (available separately) | | Reset Button | Yes | | | | Operating Conditions | Temperature: -22 to 140°F (-30 to 60°C)
Humidity: 95% or less (non-condensing) | | Power Supply | 24 VAC ±10%, 12 VDC ±10%, PoE (802.3af) | | Maximum Power Consumption | 6 W
9 W with IR cut filter on | | Dimensions | 2.75 x 2.28 x 5.71" (6.98 x 5.8 x 14.5 cm) | | Weight | 1.83 lb (0.83 kg) | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 12.5 x 5.5 x 5.5" |
